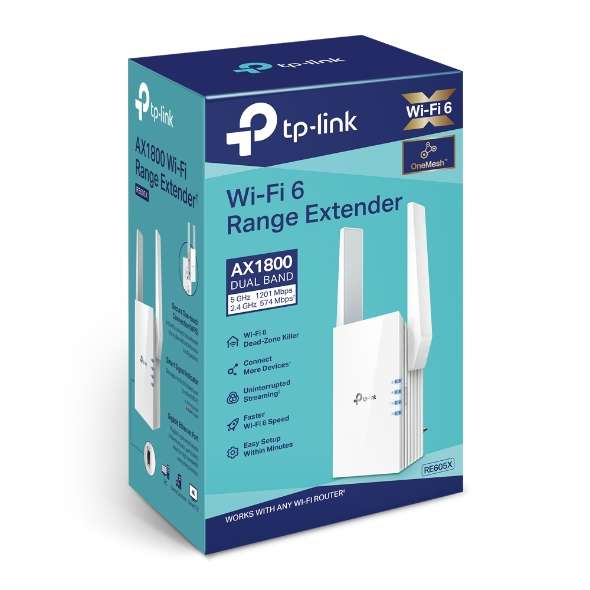

RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a TP-Link OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility Extend the range of any Wi-Fi router or wireless access point
WIRELESS
Working Modes Range Extender, Access Point
HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/x 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm
2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power CE: 2.4GHz 20dBm, 5GHz 30dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA-PSK2 encryptions
Mesh Technology OneMesh
OTHERS
Certification CE, RoHS
Package Contents Wi-Fi Range Extender RE605X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications FCC, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
