RE705X
- Dual Band Wi-Fi 6: Separates 5GHz (2402Mbps) and 2.4GHz (574Mbps) Wi-Fi bands for faster speeds and greater capacity with the latest technology.
- Uninterrupted Streaming: Easily create a TP-Link OneMesh network for seamless whole home Wi-Fi coverage.
- AP Mode: Create a new Wi-Fi access point through the Gigabit Ethernet port to enhance your wired network with Wi-Fi capability.
- Gigabit Ethernet Port: Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles.
- App Control: Easy Setup and management with your network using the TP-Link Tether app
Cover Every Corner with Blazing Fast Wi-Fi 6

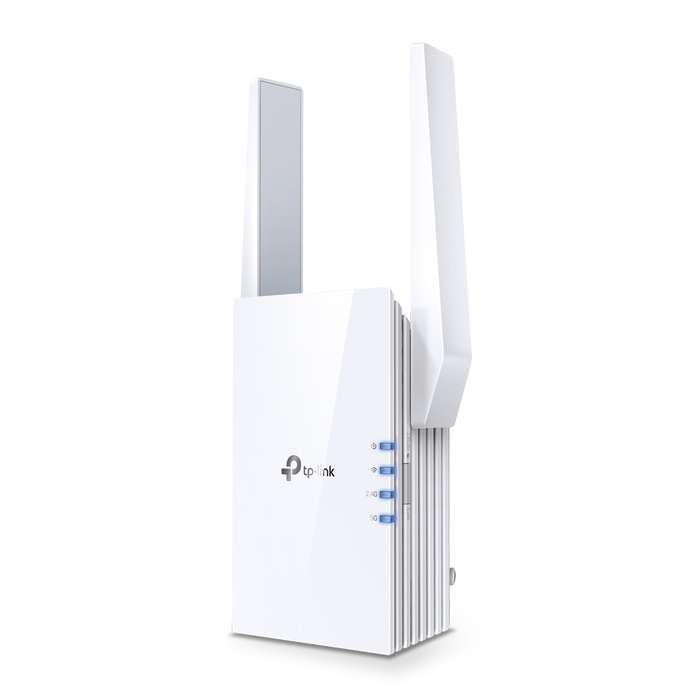

AX3000 Wi-Fi 6 Range Extender
RE705X
Features:
Life in the fast lane with advanced Wi-Fi 6:
- Wi-Fi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen Wi-Fi thanks to 1024-QAM. With this speed boost, experience high-speed and stable Wi-Fi throughout your rooms.
Double Channel Speed with HE160: Higher Efficiency, Lower Latency
- Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.
4 high-performance amplifiers, we got you covered:
- Enjoy 4K streaming and gaming in whatever room you re in thanks to RE705X s 4 high-performance amplifiers. Whether you re sharing a pad with friends or living in your forever home, RE705X sends out strong signals to those hard-to-cover areas.
OFDMA: More efficient data:
- Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.
Beamforming: Strong, targeted Wi-Fi.
- Find the direction of your phone or laptop, and accelerate your signal strength.
Adaptive Path Selection:
- Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
OneMesh: Roaming Redefined
- Stop searching around for full bars. OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole home coverage. Just connect RE705X to a OneMesh router.
1/ Smart Roaming: Uninterrupted streaming when moving around your home.
2/ One Wi-Fi Name: No more switching Wi-Fi network names.
3/ Easy Creation: OneMesh Router and OneMesh Range Extenders pair instantly.
4/ Unified Management: Manage the entire network all from the TP-Link Tether app.
Wide. Wider. Widest:
- Keep your internet focused on a single room or blanket an entire floor with Wi-Fi by picking between 3 strength levels on the Tether app.
Built-In Access Point Mode:
- RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2 x 2 MU-MIMO dual band wireless access point
Control at Your Fingertips:
- Set up and manage your Wi-Fi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
Note:
1/ The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or out-dated.
2/ Use of MU-MIMO requires clients to also support MU-MIMO.
3/ Need to be used in 5G frequency band with equipment supporting 160MHz.
4/ It requires compatible AX clients with DL-OFDMA and UL-OFDMA support.
5/ Maximum option is enabled by default.
Specifications:
HARDWARE FEATURES
- Ports: 1 x Gigabit Ethernet Port
- Button: WPS Button, Reset Button
- Input Power: 100 - 240V, 50/60Hz
- Power Consumption: 12.6W
- Antenna: 2 x External Antennas
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
- Frequency: 2.4GHz and 5GHz
- Signal Rate: 574Mbps at 2.4GHz, 2402Mbps at 5GHz
- Reception Sensitivity:
1/ 5GHz:
a) 11a 6Mbps: -97dBm
b) 11a 54Mbps: -78dBm
c) 11ax HE20 MCS0: -97dBm
d) 11ax HE20 MCS11: -66dBm
e) 11ax HE40 MCS0: -94dBm
f) 11ax HE40 MCS11: -62dBm
g) 11ax HE80 MCS0: -91dBm
h) 11ax HE80 MCS11: -61dBm
i) 11ax HE160 MCS11: -59dBm
2/ 2.4GHz:
a) 11g 6Mbps: -96dBm
b) 11g 54Mbps: -78dBm
c) 11ax HE20 MCS0: -95dBm
d) 11ax HE20 MCS11: -66dBm
e) 11ax HE40 MCS0: -93dBm
f) 11ax HE40 MCS11: -62dBm
- Transmit Power: CE: 2.4GHz <16dBm, 5GHz <21dBm
- Wireless Modes: Range Extender, Access Point
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
- Wireless Security: WEP, WPA, WPA2, WPA3
OTHERS
- Certification: CE, RoHS
- System Requirements:
a) Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux
b) Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
What's in the box
1 x TP-Link RE705X Wi-Fi Range Extender
1 x Quick Installation Guide
