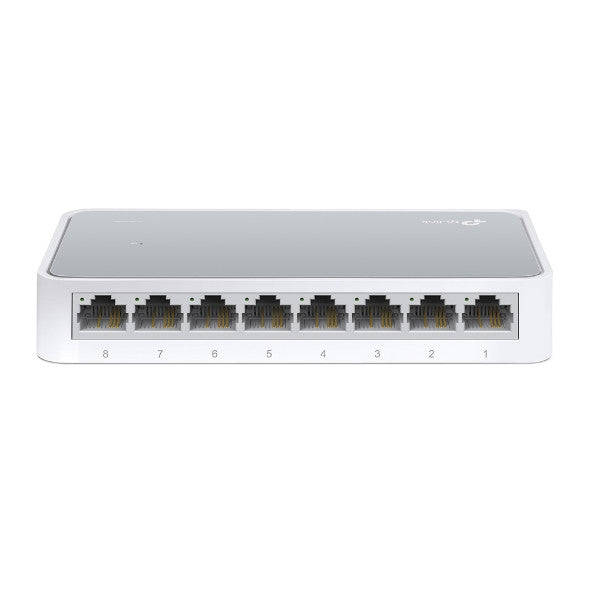

TP-LINK SF1008D 8 PORT DESKTOP SWITCH
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
- 8-port 10/100M Fast Ethernet Desktop Switch
- Supports MAC address self-learning and auto MDI/MDIX.
Product Description:
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Product Features:
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- Plastic case, desktop or wall-mounting design
- External Power Adapter supply
Product Specifications:
| Standards & Protocols | IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP |
| Basic Function | Wire-speed Performance Mac Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
| Backbound Bandwith | 1.6Gbps |
| MAC Address Table | 1k |
| Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port |
| Transmission Method | Store-and-Forward |
| Ports | 8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
| Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m |
| LED Indicators | Power, Link/Act (1, 2, 3, 4, 5) |
| Safety & Emission | FCC, CE |
| Dimensions(W*D*H) | 5.5*3.4*1.1 in. (140*87*27.5 mm) |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Power | External Power Adapter |
