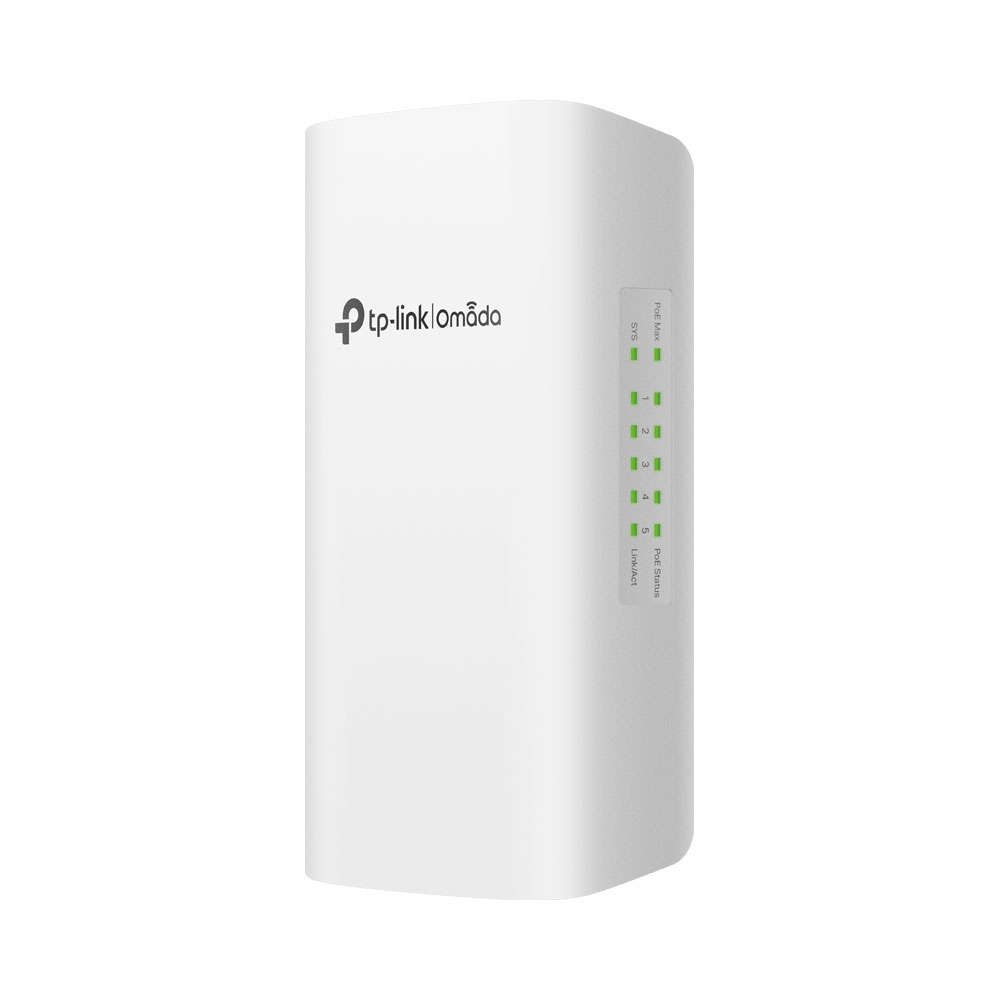

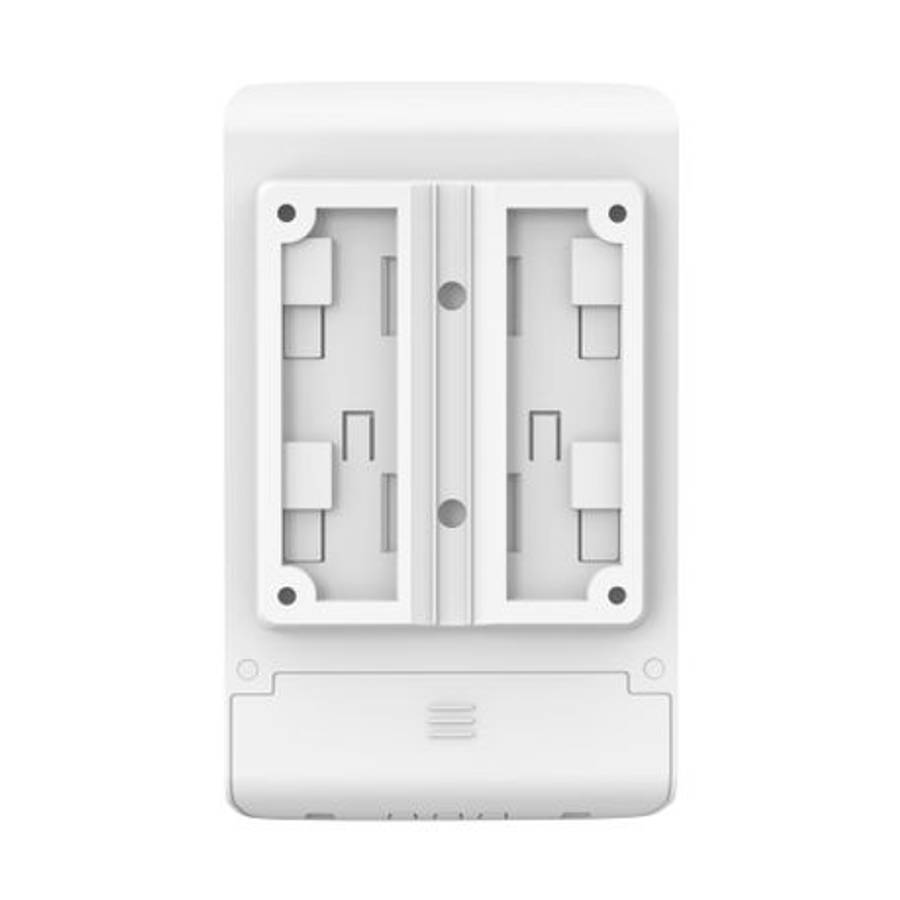

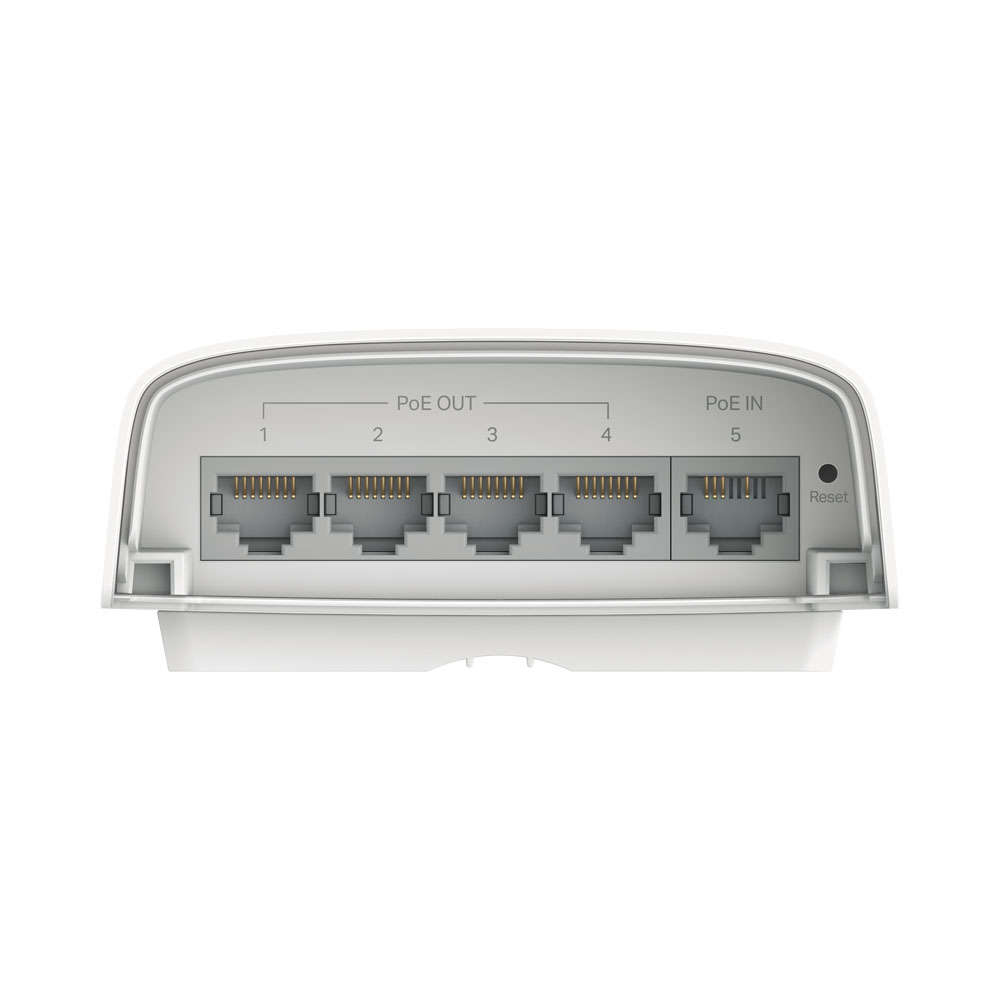

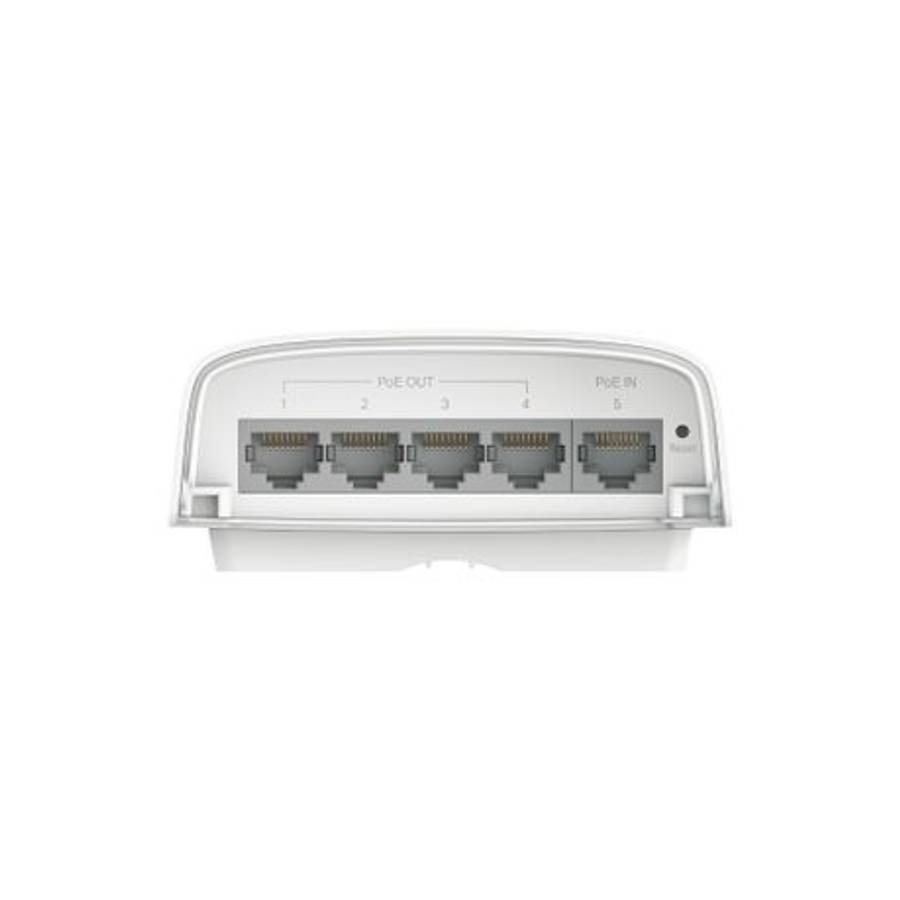

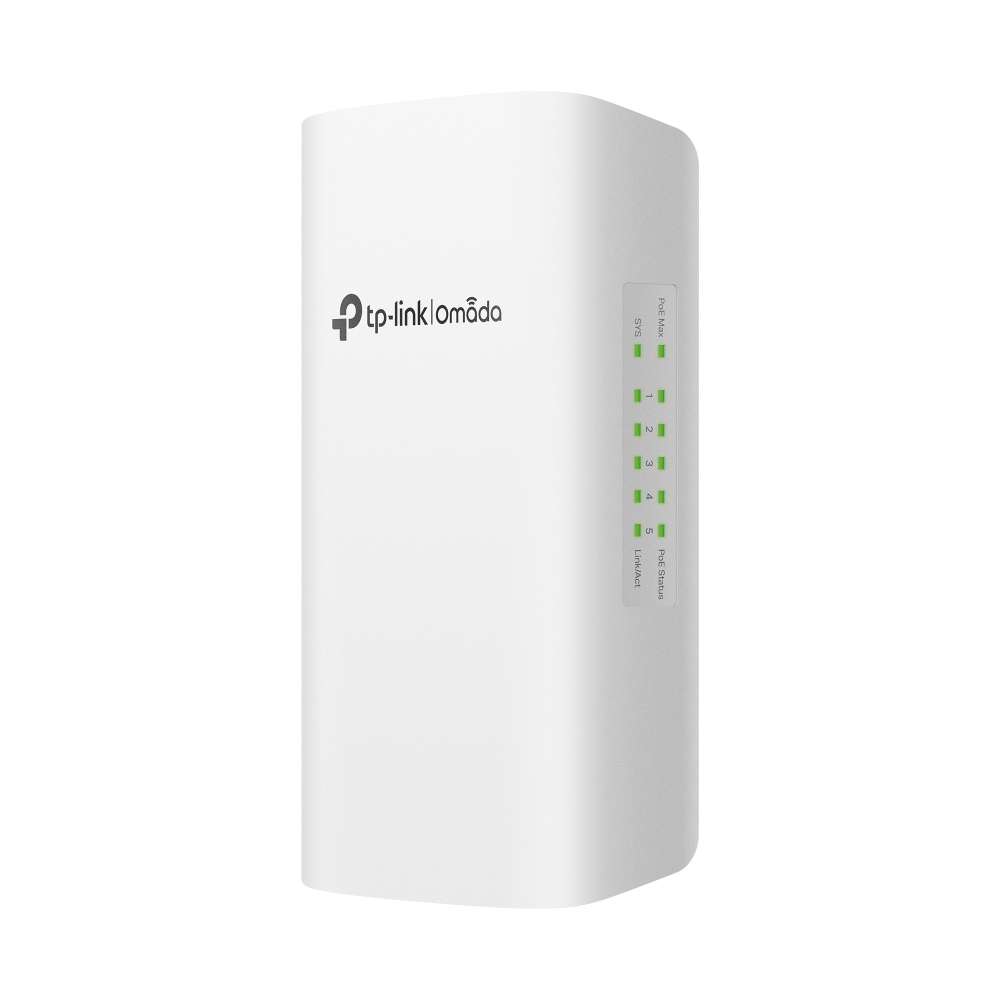

OverviewSG2005P-PDOmada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ OutUp to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.x1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.xxOutdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.SpecificationsHARDWARE FEATURESStandards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1xInterface 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)Fan Quantity FanlessPower Supply Obtain Power from 802.3af/at/bt PoE SourcePoE Ports (RJ45) PoE In Port: Port 5, Compliance with 802.3af/at/bt PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE PoE Power Budget:-64 W when powered by 802.3bt Type 4 (90 W)-44 W when powered by 802.3bt Type 3 (60 W)-19 W when powered by 802.3at-6 W when powered by 802.3afDimensions ( W x D x H ) 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)Max. Power Consumption 71.5 W (when powered by 802.3bt Type 4 (90 W))Max Heat Dissipation 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))PERFORMANCESwitching Capacity 10 GbpsPacket Forwarding Rate 7.44 MppsMAC Address Table 8kPacket Buffer Memory 4.1 MbitJumbo Frame 9 KBSOFTWARE FEATURESQuality of Service 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control- Port/Flow-based Rating Limit Smoother Performance Storm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast ControlL2 and L2+ Features 32 IP Interfaces- Support IPv4/IPv6 Interface Static Routing- 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation- Static link aggregation- 802.3ad LACP- Up to 8 aggregation groups and up to 8 portsper group Spanning Tree Protocol- 802.1D STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter/Protect,Root Protect Loopback Detection Flow Control- 802.3x Flow Control Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Flow-Based- Ingress/Egress/Both Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MEDL2 Multicast 511 IPv4, IPv6 shared multicast groups IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- Static Group Config Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config Limited IP Multicast (256 profiles and 16 entries per profile)Advanced Features Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot ScheduleVLAN VLAN Group- Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLANAccess Control List Support up to 230 entries Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- Holiday Time-based ACL MAC ACL- Source MAC- Destination MAC- VLAN ID- User Priority- Ether Type IP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP TOS IPv6 ACL Combined ACL Rule Operation- Permit/Deny Policy Action- Mirror- Rate Limit- Redirect- QoS Remark ACL Rules Binding- Port Binding- VLAN Binding Actions for flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkSecurity AAA 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection IP Source Guard- 253 Entries- Source IP+Source MAC IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access controlIPv6 IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications- DHCPv6 Client- Ping6- Tracert6- Telnet (v6)- IPv6 SNMP- IPv6 SSH- IPv6 SSL- Http/Https- IPv6 TFTPMIBs MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)Management FeaturesOmada App Yes, through Omada Cloud-Based Controller Omada Hardware Controller Omada Software ControllerCentralized Management Omada Cloud-Based Controller Omada Hardware Controller Omada Software ControllerCloud Access Yes, through Omada Cloud-Based Controller Omada Hardware Controller Omada Software ControllerZero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.Management Features Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System LogOTHERSCertification CE, FCC, RoHSPackage Content SG2005P-PD Mounting Kits Installation GuideSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare , UNIX or Linux.Environment Operating Temperature: -40 to 60 C (-40 to 140 F) Storage Temperature: -40 C to 70 C (-40 F to 158 F) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensingWhat's in the box1 x SG2005P-PD1 x Mounting Kits1 x Installation Guide
