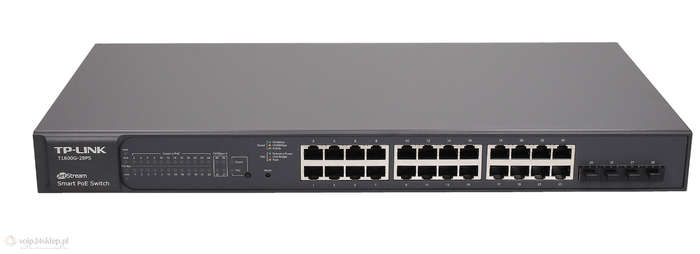

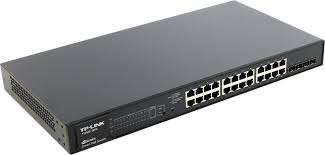

This high-performance TP-Link JetStream smart switch offers reliable Layer 2 management and Gigabit connectivity for demanding enterprise networks. Designed with 24 PoE+ ports and a 48Gbps switching capacity, it supports seamless data transfer and advanced traffic control.
With full VLAN support, storm control, SNMP management, and advanced security features, this unit is ideal for medium to large networks that need flexible, secure, and scalable switching performance.
Key Features & Benefits
24 PoE+ ports for simultaneous data and power delivery
4 dedicated SFP slots for fiber uplink or network expansion
48Gbps switching capacity with 35.7Mpps forwarding rate
Supports VLAN, QoS, LACP, IGMP Snooping, STP/RSTP/MSTP
Advanced management via Web GUI, CLI, SNMP v1/v2c/v3
Robust access control with SSH, SSL, ACL filtering
Enterprise-grade fan-cooled chassis with 3 integrated fans
Ideal Uses
Corporate or enterprise LAN environments with PoE IP phones or cameras
Surveillance systems requiring stable PoE+ power across multiple ports
Small to medium-sized data centers needing VLAN segmentation and redundancy
Managed network deployments where remote monitoring and configuration are key
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: TP-Link
Model: T1600G-28PS
Switch Type: Layer 2 Managed Smart PoE Switch
Ports: 24 x 10/100/1000Mbps RJ45 Ports (Auto MDI/MDIX)
SFP Slots: 4 x 100/1000Mbps Combo SFP
PoE+ Support: IEEE 802.3at/af on all 24 ports
PoE Power Budget: 180W
Switching Capacity: 48Gbps
Forwarding Rate: 35.7 Mpps
MAC Address Table: 8K
Jumbo Frame: 10240 Bytes
VLANs: Up to 512 VLANs (4K IDs)
L2 Features: IGMP Snooping V1/V2/V3, LACP, STP/RSTP/MSTP, LLDP
Access Control: L2L4 filtering, SSH v1/v2, SSL v2/v3/TLSv1
QoS Features: 802.1p, DSCP, 4 Priority Queues, Port-based rate limiting
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, DHCP Client, Syslog
Power Supply: 100~240VAC, 50/60Hz
Power Consumption: 216W Max (PoE on), 36W Max (PoE off)
Cooling: 3 internal fans
Dimensions: 440 × 330 × 44 mm
Weight: 3.8 kg (approximate)
Operating Temperature: 040°C
Operating Humidity: 10%90% non-condensing
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
