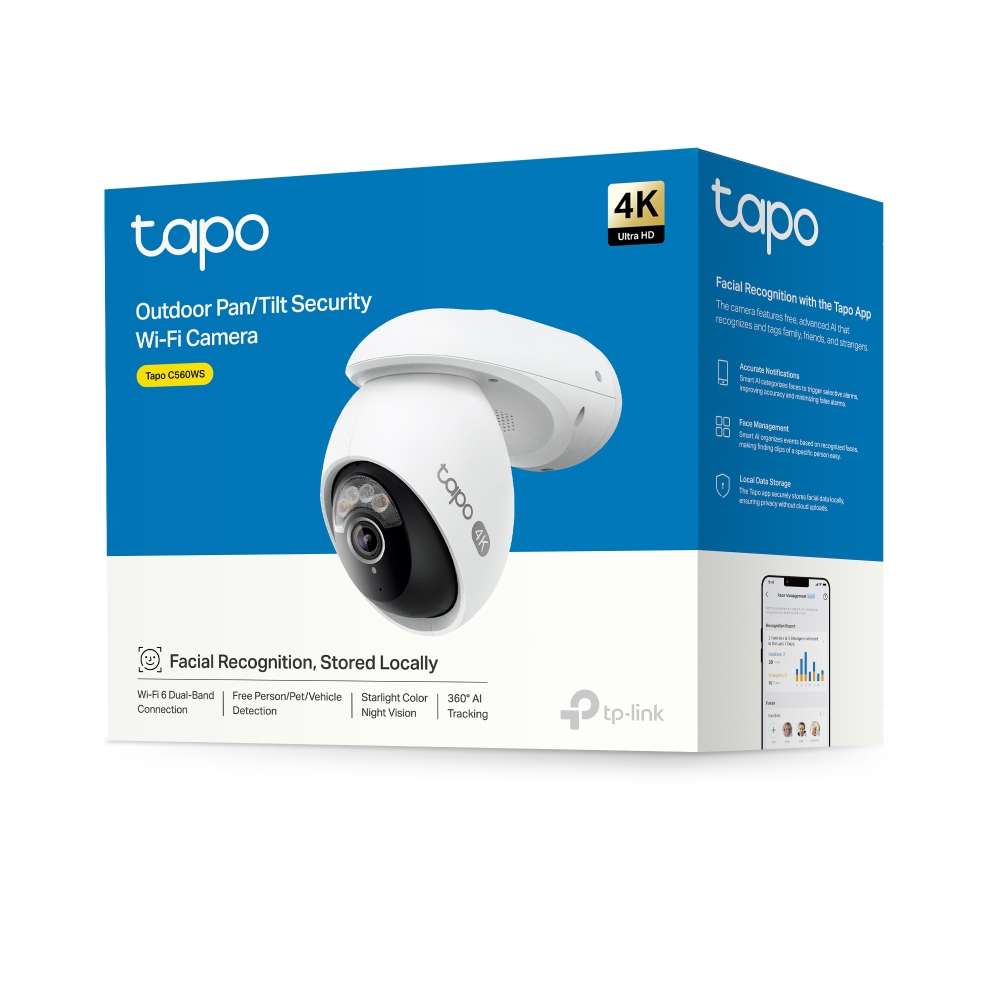

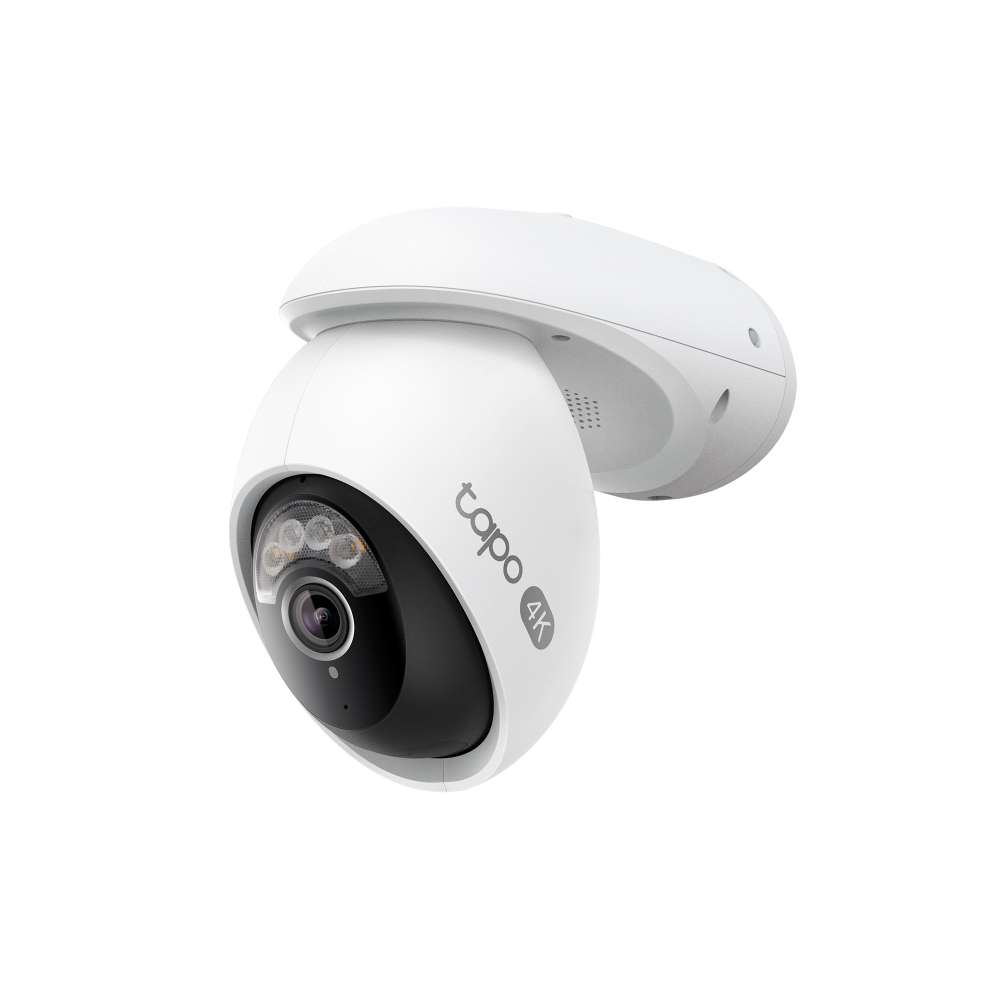

TP-Link Tapo C560WS 4K 8MP Outdoor Pan/Tilt Security Wi-Fi Camera
Smarter Security. Sharper Detail.
The TP-Link Tapo C560WS delivers powerful outdoor surveillance with ultra-clear 4K video and intelligent AI recognition. Designed for reliable performance, it combines advanced imaging with flexible connectivity, making it ideal for homes and business environments. With full-colour night vision, smart alerts and durable weatherproof construction, it ensures dependable monitoring day and night. Easy app control, multiple installation options and seamless smart home integration make it a complete, high-performance security solution.
FEATURES
4K Ultra HD Video - Exceptional clarity with detailed, high-resolution footage
Facial Recognition with Local Storage - Identifies familiar faces while keeping data private
Starlight Full-Colour Night Vision - Vivid low-light video with built-in spotlights
Smart AI Detection - Accurate alerts for people, vehicles and activity
Pan and Tilt with Patrol Mode - Wide coverage with automatic area scanning
Wi-Fi 6 Dual-Band Connectivity - Faster, more stable wireless performance
Smart Playback and Event Filtering - Quickly locate footage by event or timeline
Two-Way Audio and Active Defence - Real-time communication with siren and lights
Flexible Storage - Supports microSD and optional cloud storage
Smart Home Integration - Works with Alexa, Google Assistant and SmartThings
SPECIFICATIONS
Image Sensor: 1/2.7" Progressive Scan CMOS Starlight Sensor
Lens: 4mm ±5%, F1.6 ±5%
Field of View: 105° Diagonal, 88° Horizontal, 45° Vertical
Night Vision: 850nm IR LED, Starlight Colour Night Vision
Lighting: 2× Built-In Spotlights
Pan and Tilt: 326° Pan (360° Coverage), 53° Tilt (98° Coverage)
Maximum Resolution: 4K 8MP (3840 × 2160)
Frame Rate: 25fps
Digital Zoom: 18×
Video Compression: H.264
Image Enhancement: 3DNR, WDR
Audio: Built-In Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 99dB
Local Storage: MicroSD Slot (up to 512GB)
Cloud Storage: Tapo Care (Subscription Required)
Detection: Face, Motion, Person, Pet, Vehicle, Line-Crossing, Tamper Detection
Activity Zones: Supported
Notifications: System Notification, Snapshot (Tapo Care)
Network: Wi-Fi or Ethernet
Wireless Standard: IEEE 802.11a/b/g/n/ac/ax, 2.4GHz / 5GHz
Ethernet Port: Yes
RTSP: Yes
ONVIF: Yes
Security: SSL/TLS, AES Encryption
Power Source: 12V DC Adapter
Input Voltage: 100~240V 50/60Hz
Output Voltage: 12V 1A
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP66
Mounting: Ceiling, Wall, Pole
Operating Temperature: -30~60°C
Storage Temperature: -40~60°C
Operating Humidity: 10~90% RH (Non-Condensing)
Storage Humidity: 0~90% RH (Non-Condensing)
Dimensions (W × D × H): 147.4 × 74.7 × 165.4mm (With Bracket), 147.4 × 74.7 × 157.4mm (Without Bracket)
Certifications: FCC / RoHS / RCM
