TP-Link Tapo C220 Pan/Tilt Wi-Fi Camera Maximum Resolution 2560 x 1440, Image Sensor 1/3" Progressive Scan CMOS Starlight, Lens 4 mm (F2.0), Field of View 88° Diagonal / 75° Horizontal / 41° Vertical, Pan Range 340° (360° Coverage), Tilt Range 69°, Night Vision 850 nm IR LED up to 30 ft (9 m), Frame Rate up to 30 fps (Default 15fps), Video Compression H.264, Interface with Reset Button and MicroSD Slot up to 512GB, Network via Wi-Fi IEEE 802.11b/g/n/ax 2.4 GHz, RTSP and ONVIF support, Security with On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK, Power Source 9V DC Adapter (100-240V 50/60Hz input, 9V 0.6A output).
Product Overview

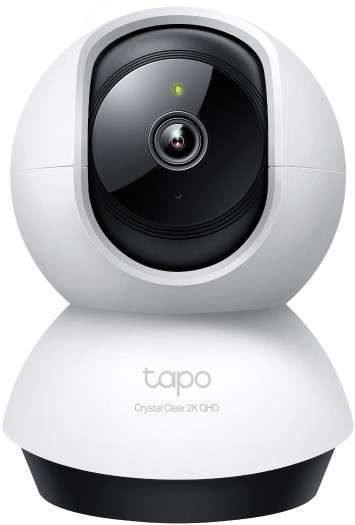

The Tapo C220 is a compact home security Wi-Fi camera featuring a 1/3" Progressive Scan CMOS Starlight sensor that delivers clear 2.5MP resolution (2560 × 1440 px) video at up to 30 fps with H.264 compression. It offers expansive coverage with a 4 mm lens, 88° diagonal field of view, and a 340° pan plus 69° tilt mechanical range for flexible monitoring. Enhanced night vision up to 12 meters, two-way audio with noise cancellation, AI-driven motion and activity detection, and local microSD storage up to 512GB make it a robust choice for smart home surveillance.
Features
Complete Privacy: Maintain your privacy with the lens hidden inside the housing, unable to see out during privacy mode.
4MP, Starlight Sensor: Captures high-quality images with vivid colors even in low-light conditions.
Smart Detection and Notifications: Receive notifications based on the intelligent algorithms that understand people's movement, a baby crying or the actions of your pet.
Sound and Light Alarm： Trigger light and sounds as an alarm when motion is detected.
Two-Way Audio： Communicate in real time through a built-in microphone and speaker.
Voice Control： Works with Amazon Alexa or Google Assistant for hands-free interaction.
Specifications
Product Code: TAPO-C220
Description: Pan/Tilt Wi-Fi Camera
Image Sensor: 1/3" Progressive Scan CMOS Starlight Sensor
Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical)
Motion Range: Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 69°
Night Vision: 850 nm IR LED (30 ft / 9 m)
Interface & Button
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
Maximum Resolution: 2560 × 1440 px
Frame Rate: 15/20/25/30 fps (Default 15fps)
Video Compression: H.264
Live View: Yes
Image Enhancement: 3D DNR, BLC
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 99dB (Level measured at 4-inch/10-cm distance)
AI Detection
Motion Detection
Person Detection
Line-Crossing Detection
Tamper Detection
BabyCry Detection
Vehicle Detection
Pet Detection
Meow Detection
Bark Detection
Glass-Breaking Detection
Activity Zones: Yes
Output Notification: System Notification, System Notification with Snapshot (Tapo Care Services)
Network Connectivity: Connect via Wi-Fi
Wireless Connectivity: IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi
RTSP: Yes
ONVIF: Yes
Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
Power Source: 9V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 9V, 0.6 A (DC Power)
