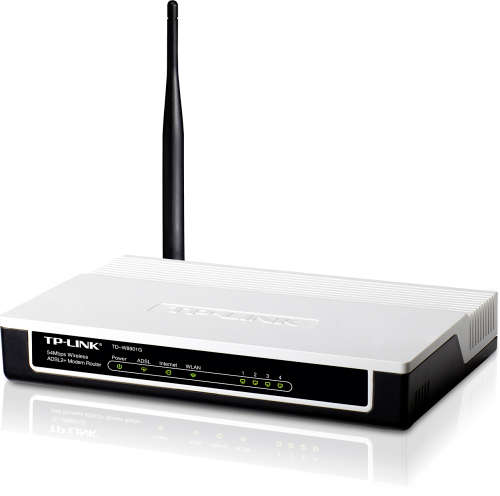

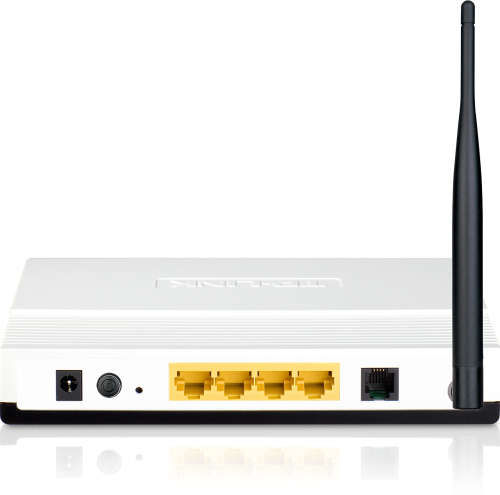

TP-LINK TD-W8901G - wireless router - DSL - 802.11b/g - desktop

 TP-LINK TD-W8901G - wireless router - DSL - 802.11b/g - desktop

GENERAL
Frequency Band 2.4 GHz
Enclosure Type Desktop
Status Indicators Power, system
Encryption Algorithm AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK
Max Range Indoors 330 ft
Routing Protocol RIP-1, RIP-2, static IP routing
ManufacturerTP-Link Technologies
MODEM
Type DSL modem
Max Transfer Rate 24 Mbps
Digital Signaling Protocol ADSL2
Antenna Qty 1
NETWORKING
Form Factor desktop
Type wireless router
Connectivity Technology wireless
Data Link Protocol IEEE 802.11b
Network / Transport Protocol DHCP
Features Trivial File Transfer Protocol (TFTP) support
Compliant Standards IEEE 802.11b
Wireless Protocol 802.11b/g
Routing Protocol RIP-2
Switching Protocol Ethernet
Remote Management Protocol SNMP 2
Wi-Fi Bands 2.4 GHz
Max Range Indoors 330 ft
WAN Ports Qty 1
Integrated Switch 4-port switch
POWER DEVICE
Type power adapter
Type external power adapter
Form Factor external
ANTENNA
Antenna External detachable
Antenna Qty 1
Directivity omni-directional
Gain Level 3 dBi
Antenna Form Factor external detachable
COMMUNICATIONS
Type DSL modem
Digital Signaling Protocol ADSL2
Protocols & Specifications ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5
INTERFACE PROVIDED
Type modem, network, antenna
Interface ADSL2+, Ethernet 10Base-T/100Base-TX
Qty 1, 4, 1
Connector Type RJ-11, RJ-45
Type WAN, LAN, antenna
MISCELLANEOUS
Encryption Algorithm 64-bit WEP
Width 5.5 in
Height 1.1 in
IP TELEPHONY
VoIP Protocols H.323
ENVIRONMENTAL PARAMETERS
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
HEADER
Brand TP-LINK
Product Line TP-LINK
Model TD-W8901G
Packaged Quantity 1
Compatibility PC
EXPANSION SLOTS
Type none
DIMENSIONS & WEIGHT
Width 5.5 in
Depth 7.9 in
Height 1.1 in
GENERAL
ManufacturerTP-Link Technologies
