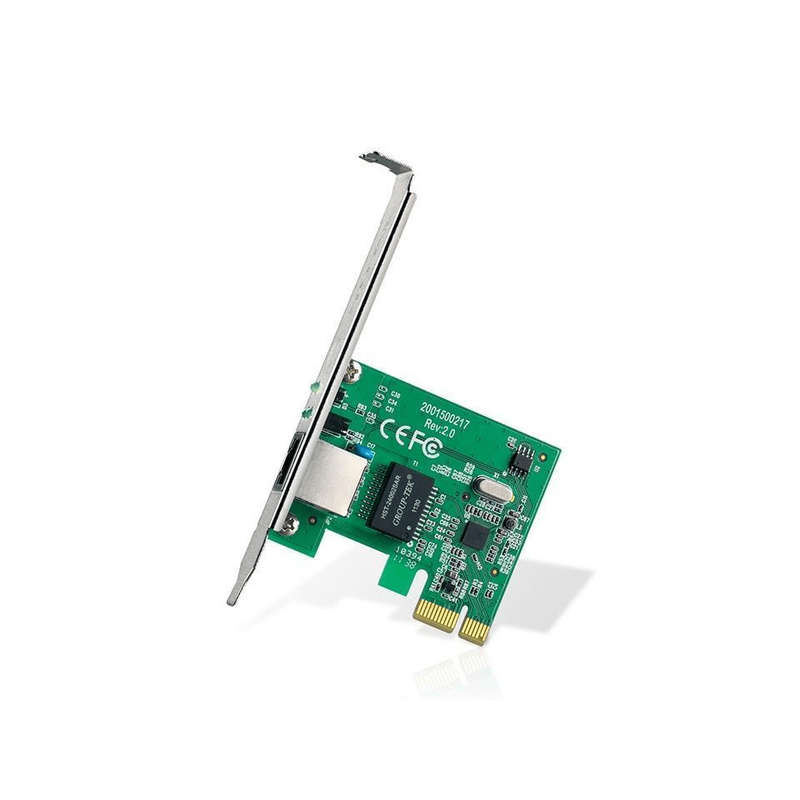

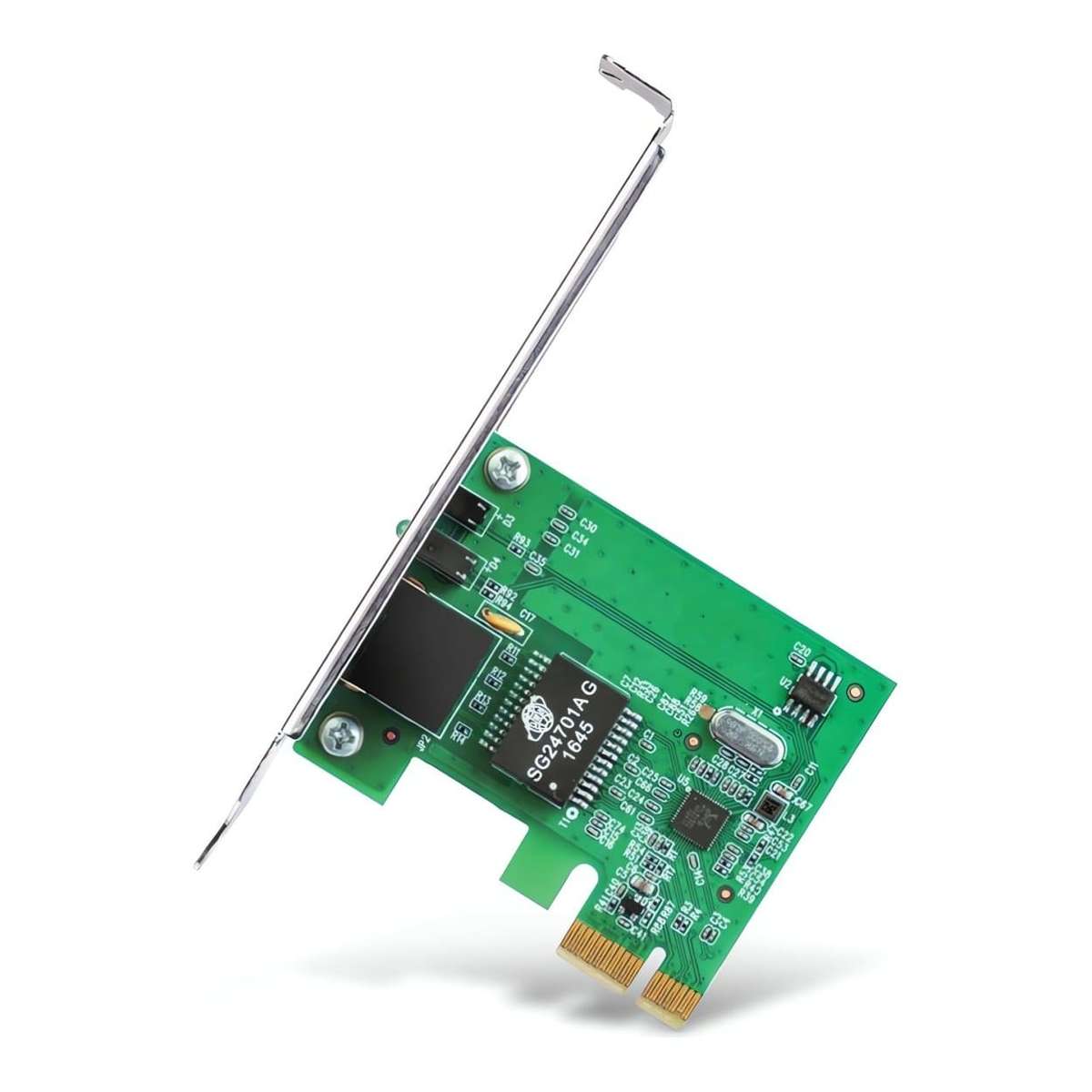

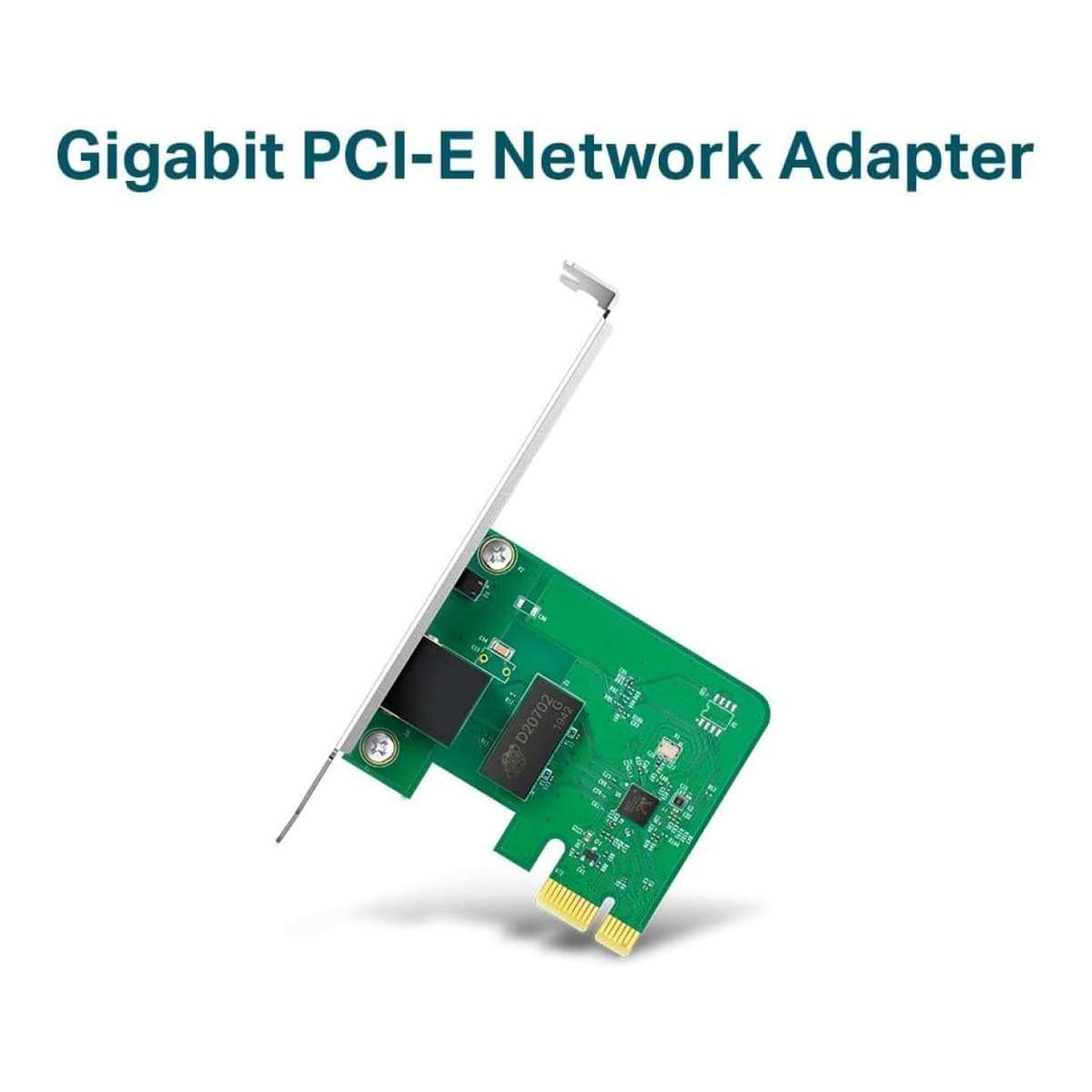

TP-Link TG-3468 Networking Card Ethernet 2000 Mbit/s Internal

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

Features:

• 10/100/1000Mbps PCIe Adapter
• 32-bit PCIe interface, saving the finite chassis space
• Wake-on-LAN, convenient to manage over LAN

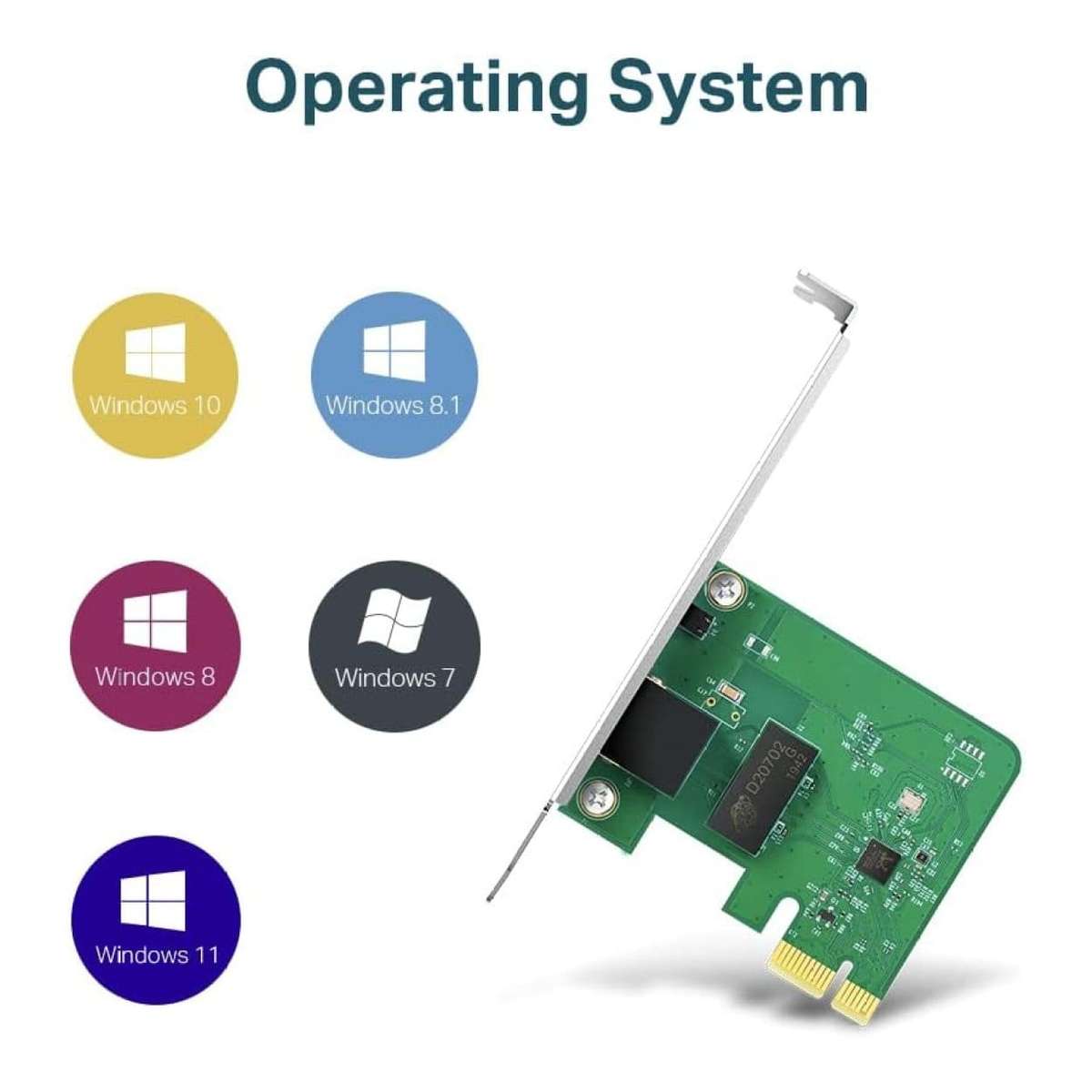

Operating System

Supports operating systems include Windows 10/8.1/8/7/Vista/XP

Low-Profile Bracket

In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management

Technical Specifications:

Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface
32-bit PCI Express
1 × 10/100/1000Mbps RJ45 port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e cable (maximum 100m)

LED
Status

Wireless Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Data Rates
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

Dimensions (W x D x H)
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5 mm)

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)

Others

Certification
CE, FCC, RoHS

System Requirements
Windows 10 (32/64-bit), Windows 8.1 (32/64-bit), Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP

Environment
Operating Temperature: 0⃠~ 40⃠(32â ~ 104â)
Storage Temperature: -40⃠~ 70⃠(-40â ~ 158â)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

What's in the Box:

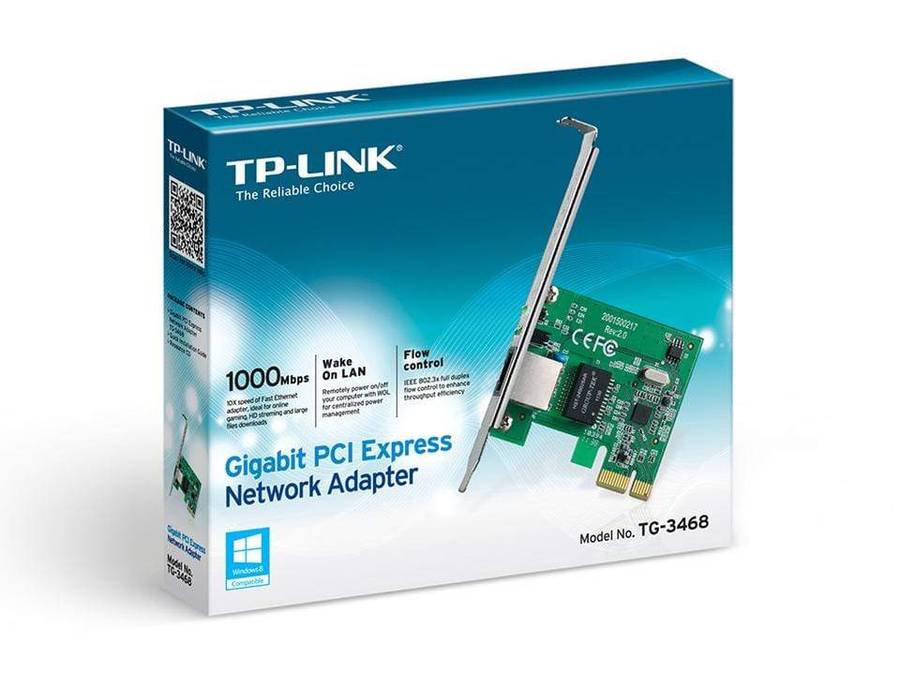

• Gigabit PCI Express Network Adapter TG-3468
• Resource CD
• Quick Installation Guide
• Low-Profile Bracket
