Highlights:
- EAP Controller Software enables administrators to easily manage hundreds of EAPs
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats.
Hardware Features:
Interface - Fast Ethernet (RJ-45) Port x1?Support Passive PoE?
Button - Reset
Dimensions (W X D X H) - 180*180*47.5mm
Wireless Standards - IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Power Supply - 24VDC / 1A Passive PoE Supply
Antenna Type - Internal 2x 3dBi Omni
Power Consumption - 7.7W
Mounting - Ceiling /Wall Mounting (Kits included)
Physical Security Lock - Kensington Lock Slot
Watch Dog - Yes
What's in the box

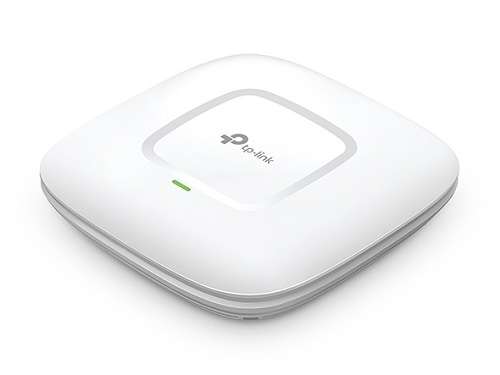

EAP110
PSU
Mounting accessories
Resource CD
Installation guide
