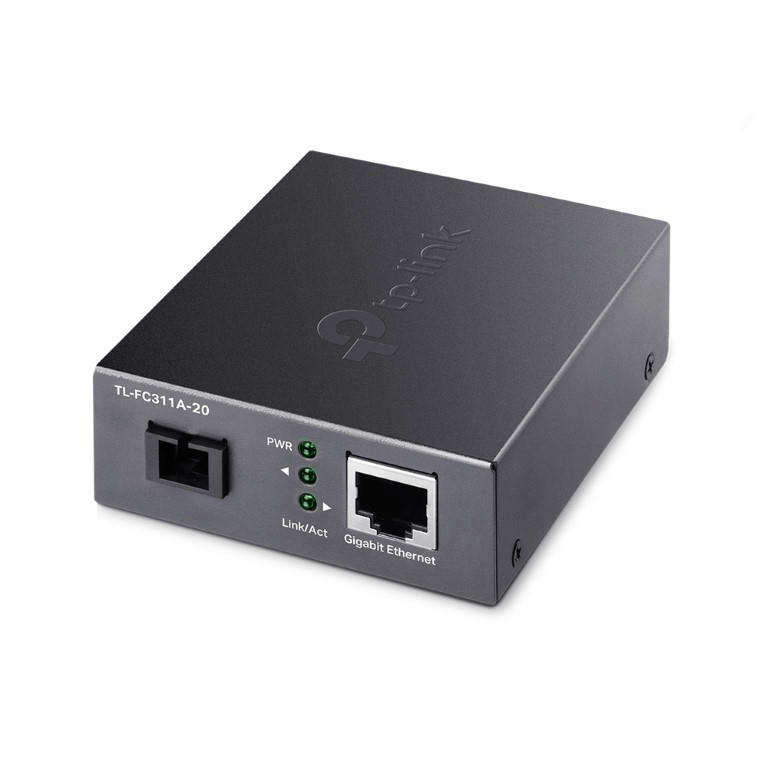

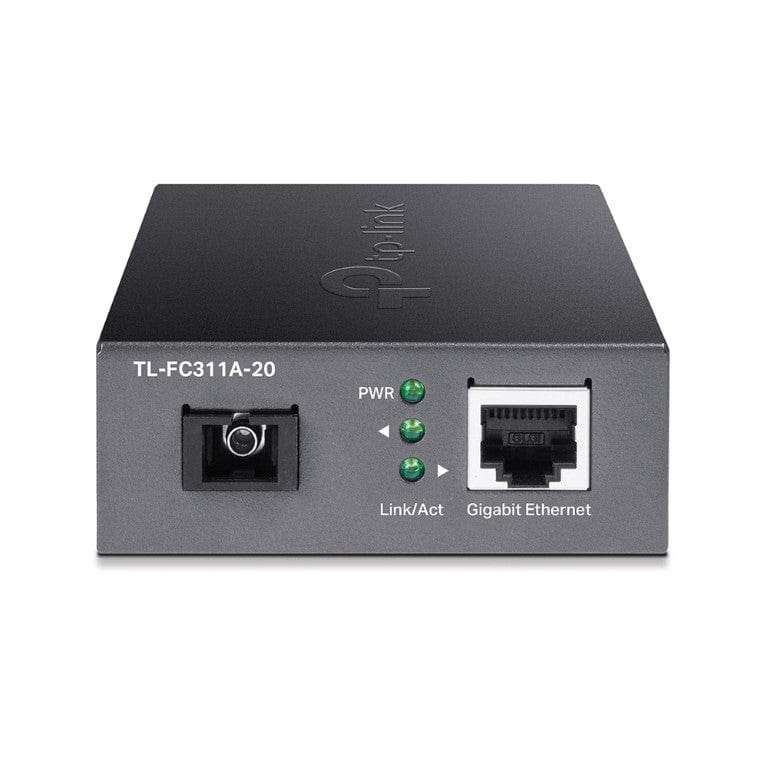

TP-Link Gigabit WDM Media Converter

What This Product Does

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20. - Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications:

• TP-Link Gigabit WDM Media Converter
• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• Ethernet interface type: Gigabit Ethernet
• Fiber optic connector: SC
• Connectivity technology: Wired
• Maximum transfer distance: 100 m
• Wavelength: 1550 nm
• Fiber mode structure: Single-mode
• LED indicators: Activity, Link, Power
• Product colour: Black
• Output voltage: 5 V
• Output current: 0.6 A
