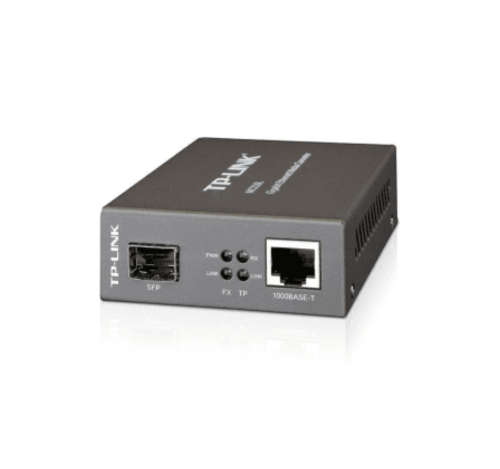

TP-Link TL-MC220L Gigabit SFP Media Converter MC220L V2.21

MC220L
Gigabit SFP Media Converter
1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3ab and IEEE 802.3z
FX port supports hot-swappable
Maximum transmission distance depends on the inserting SFP

What This Product Does
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will extend the fiber optic distance when utilizing SFP Module, and the maximum transmission distance depends on the inserting SFP Module.
