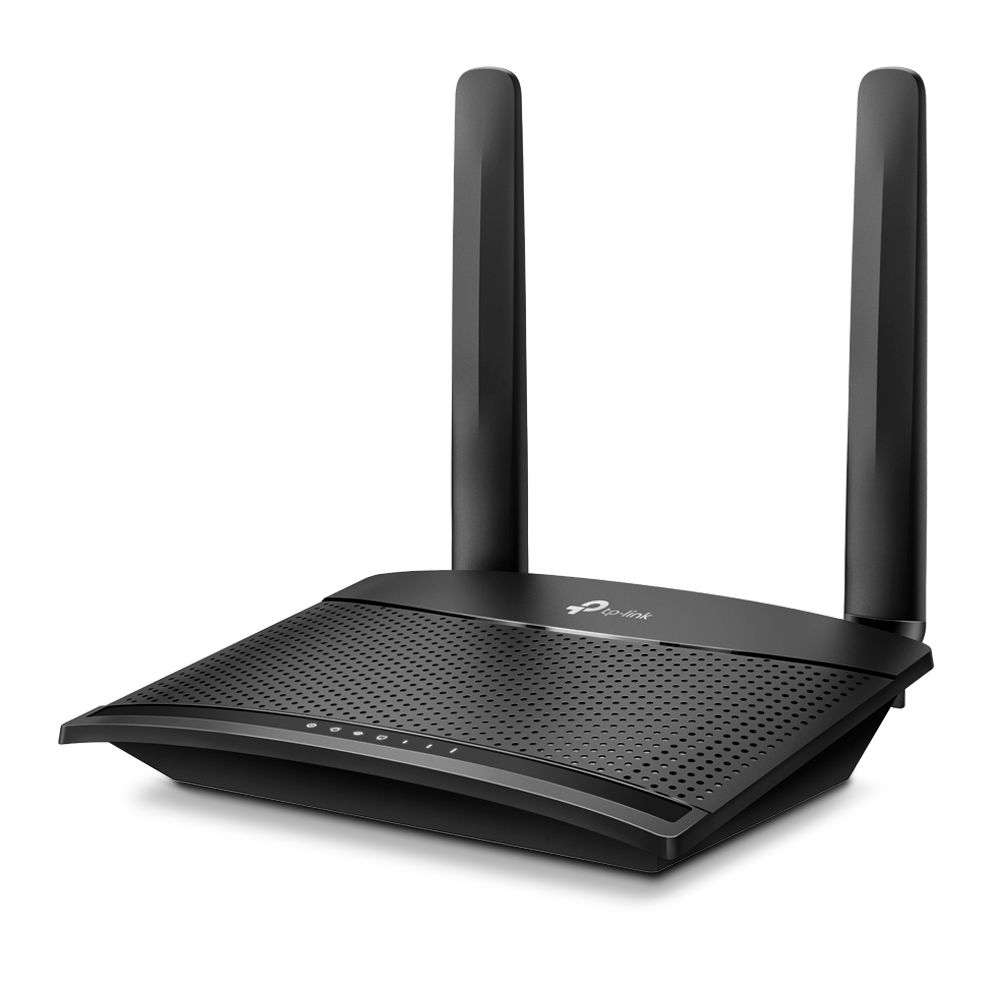

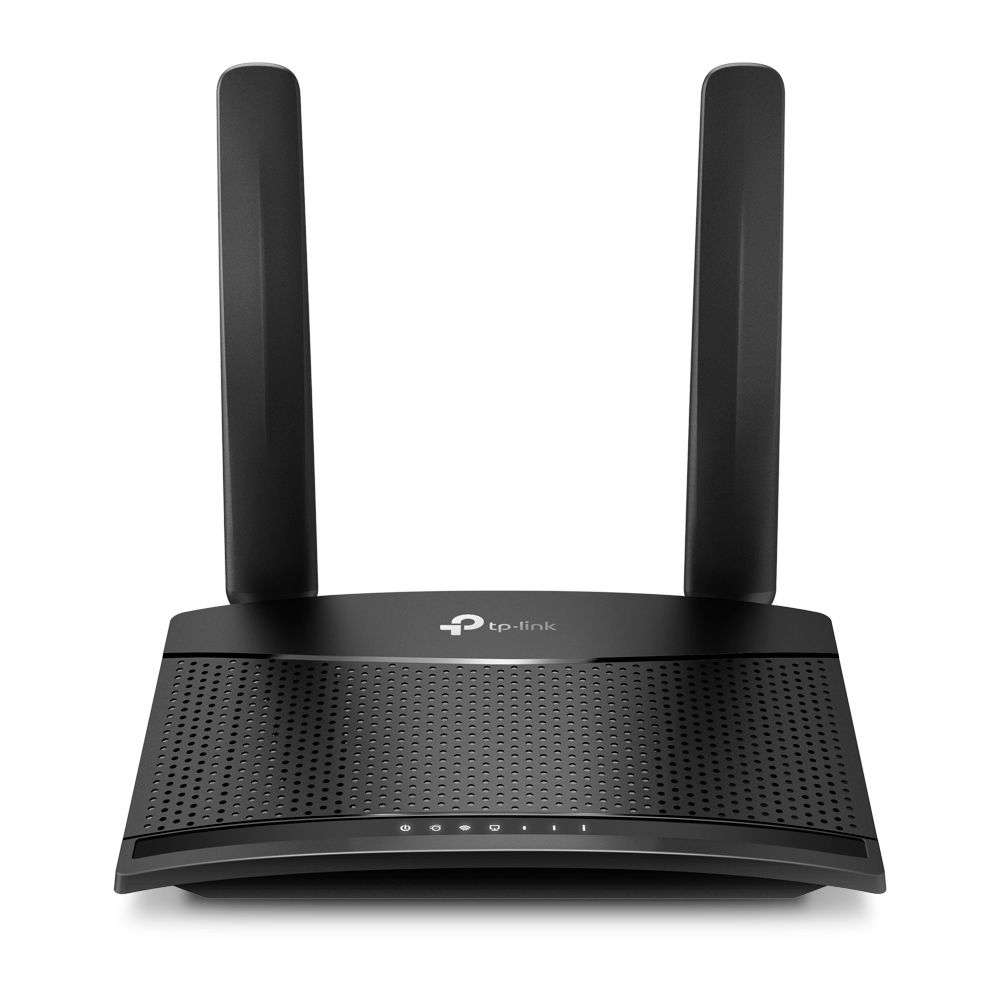

TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router

With the TL-MR100 300 Mbps Wireless N 4G LTE Router you can now enjoy 4G LTE sharing wherever you want.

• Cutting-edge 4G network Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

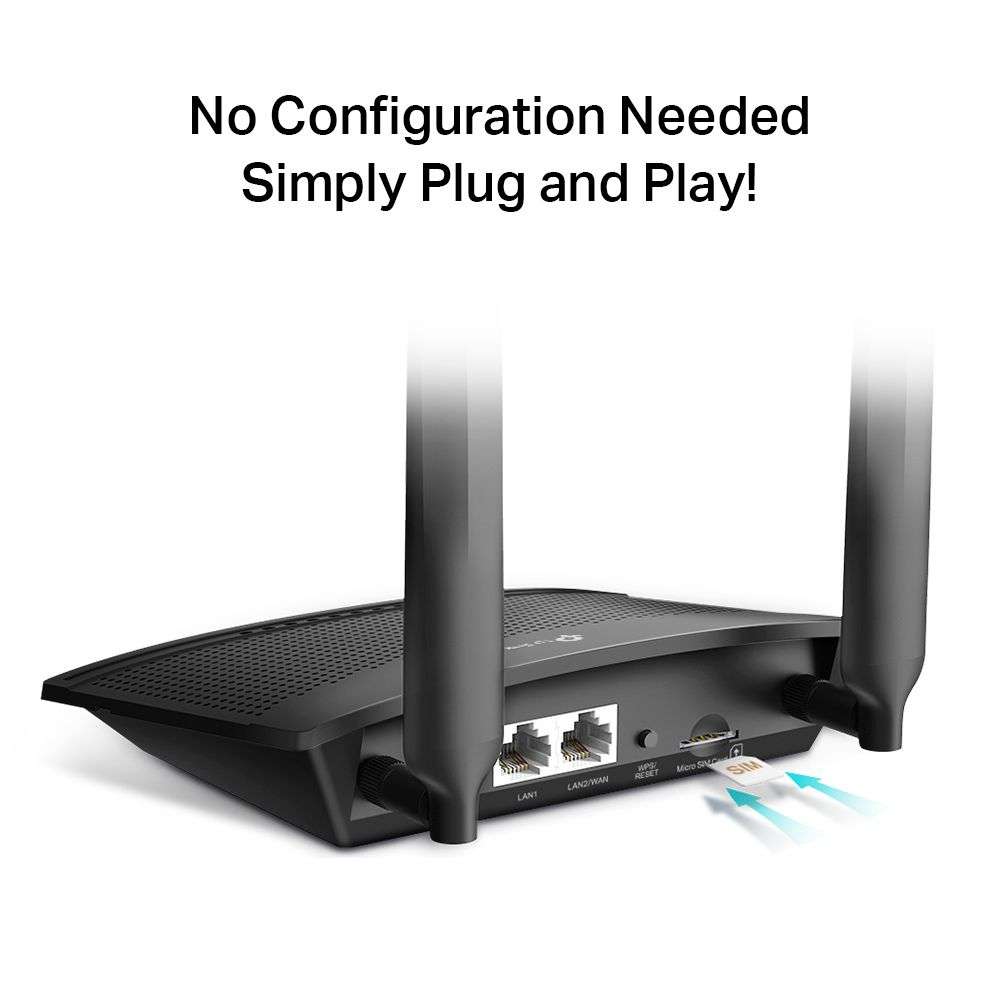

• Plug a SIM card and play No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests. With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
• Two detachable advanced LTE antennas Enjoy stable and efficient connections to every device thanks to the two external antennas
• Wi-Fi router mode Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
• Share Your 4G LTE Network - Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
• Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness
• Robust Parental Controls - If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
• Guest Network - It provides separate Wi-Fi access for guests while securing the whole network.
• Wi-Fi Where You Need It - Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you're at home or working remotely. Applicable in conference rooms, remote areas and when you are mobile.
• Reliable Access for Up to 32 Devices Simultaneously - Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

HARDWARE FEATURES
- Button: WPS/Reset Button
- External Power Supply(EU): 9V/0.85A
- Antenna: 2 Detachable External 4G LTE Antennas

Interface
- 1 10/100Mbps LAN Port
- 1 10/100Mbps LAN/WAN Port
- 1 Micro SIM Card Slot

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4 GHz
- Signal Rate: 300 Mbps
- Transmit Power < 20 dBm (2.4 GHz)
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless statistics.
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Reception Sensitivity
- 11g 54M: -74 dBm
- 11n HT20: -71 dBm
- 11n HT40: -68 dBm

Network Type:
- 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
- Security: IPv4 SPI Firewall, IP and MAC Address Binding
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management: Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- Protocols: IPv4, IPv6
- Guest Network: 2.4 GHz Guest Network
- Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS
- Certification: CE, RoHS

Requirements:
- Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS,
- NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- Java-enabled browser
- Micro SIM Card

Environment:
- Operating Temperature: 0 Degrees Celsius~40 Degrees Celsius
- Storage Temperature: -40 Degrees Celsius~70 Degrees Celsius
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing.

What's in the box
1 x 300 Mbps Wireless N 4G LTE TL-MR100
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
