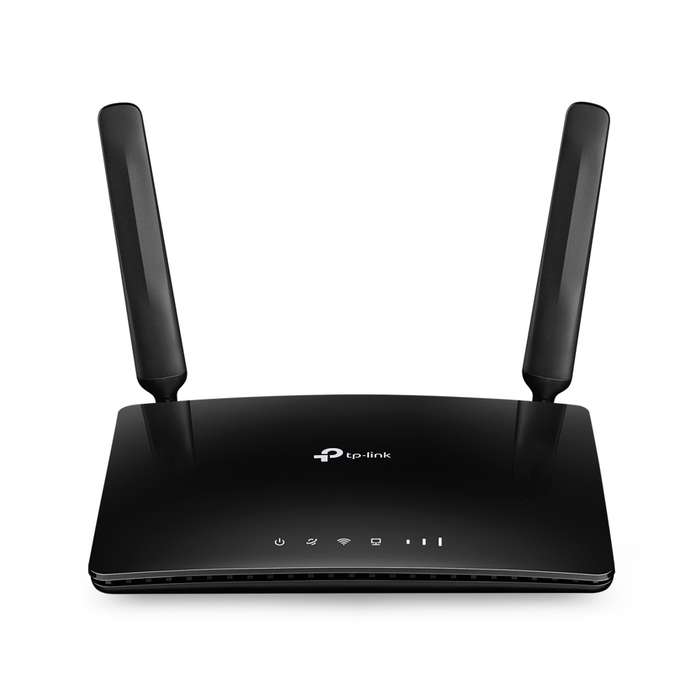

TL-MR150
300Mbps Wireless N 4G LTE Router
Cutting-edge 4G network share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
Enjoy Wi-Fi on 4G LTE
300 Mbps Wireless N 4G LTE Router - TL-MR150
No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you're at home or working remote.
Conference Room
Remote Area
Temporary Store
Private Villa
Internet Access for
up to 32 Devices simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the TL-MR150 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Specifications
HARDWARE FEATURES
Interface : 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button : WPS/RESET Button, WiFi ON/OFF Button, POWER ON/OFF Button
External Power Supply : 9V/0.85A
Dimensions ( W x D x H ) : 7.95 × 5.55 × 1.32 in. (202 × 141 × 33.6 mm)
Antenna Type : 2 × Detachable External 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards : IEEE 802.11b, 802.11g, 802.11n
Frequency : 2.4 GHz
Signal Rate : 300 Mbps at 2.4 GHz
Reception Sensitivity :
11g 54M: -74dBm
11n HT20: -71dBm
11n HT40: -67dBm
Transmit Power : CE: < 20 dBm(2.4 GHz)
Wireless Functions : Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover : Yes
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type :
4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz),
TDD-LTE (1900/2300/2500/2600MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz)
SOFTWARE FEATURES
Operating Modes : 3G/4G Router, Wireless Router
Management : Access Control, Local Management, Remote Management
WAN Connection Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP : Server, Client, DHCP Client List, Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, NO-IP
VPN : PPTP VPN, IPSec VPN , OpenVPN
Access Control : Parental Controls, Local Management Control, Host List, Access Control
Firewall Security : DoS, SPI Firewall, IP and MAC Address Binding
Protocols : IPv4, IPv6
Guest Network : 2.4GHz guest network
OTHERS
Certification : CE, RoHS
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,
MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM Card
Environment :
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
This units does Not support rain 4G Sim Cards
What's in the box
1 x 300Mbps Wireless N 4G LTE Router TL-MR150
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
