3G On-the-Go

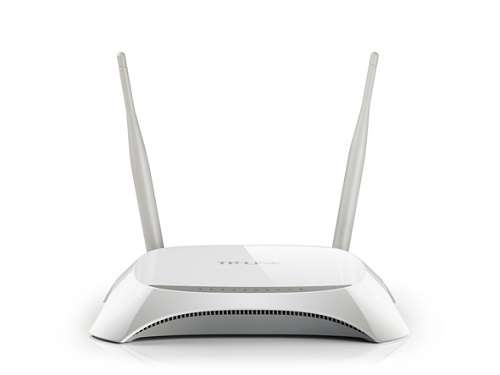

TP-LINK's TL-MR3420 3G/3.75G Wireless N Router allows you to quickly set up a 300Mbps wireless network on-the go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you're on the train, camping, or at a construction site, you'll have a reliable wireless connection to accommodate your networking needs.
Always Connected
Nothing is more frustrating than losing your Internet connection in the middle of your work. To avoid such interruptions and provide our customers with an always-online connection, TP-LINK is introducing the TL-MR3420, a robust 3G/3.75G wireless N router with true 3G/WAN failover capability.
You can set a primary link, 3G/3.75G or WAN (xDSL/Cable). TL-MR3420 switches to the secondary link when your primary service is interrupted. Once the service is restored, the router will automatically failback to the primary linkkeeping your business online with the minimal interruption to users.
HARDWARE FEATURES
Interface 1 USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem
1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12VDC/1A
Dimensions ( W x D x H ) 8x5.4x1.7 in. (204x138x44 mm)
Antenna V1&V2 Omni directional, Detachable, Reverse SMA
V3&V4 Omni directional, Undetachable, Reverse SMA
Antenna Gain 2x5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.4-2.4835GHz
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
Transmission Power <20dBm
SOFTWARE FEATURES
Security NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
Management Features Web Based Configuration(HTTP), Web Based Firmware Upgrade
OTHERS
Certification CE, FCC, RoHS
Package Content 3G/4G Wireless N Router TL-MR3420
2 Antennas
Power supply unit
Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7, 8, 10, MAC OS, NetWare , UNIX or Linux.
Environment Operating Temperature: 0 ~40 (32 ~104 )
Storage Temperature: -40 ~70 (-40 ~158 )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
1x 3G/4G Wireless N Router TL-MR3420
1x 2 Antennas
1x Power supply unit
1x Ethernet Cable
1x Resource CD
1x Quick Installation Guide
