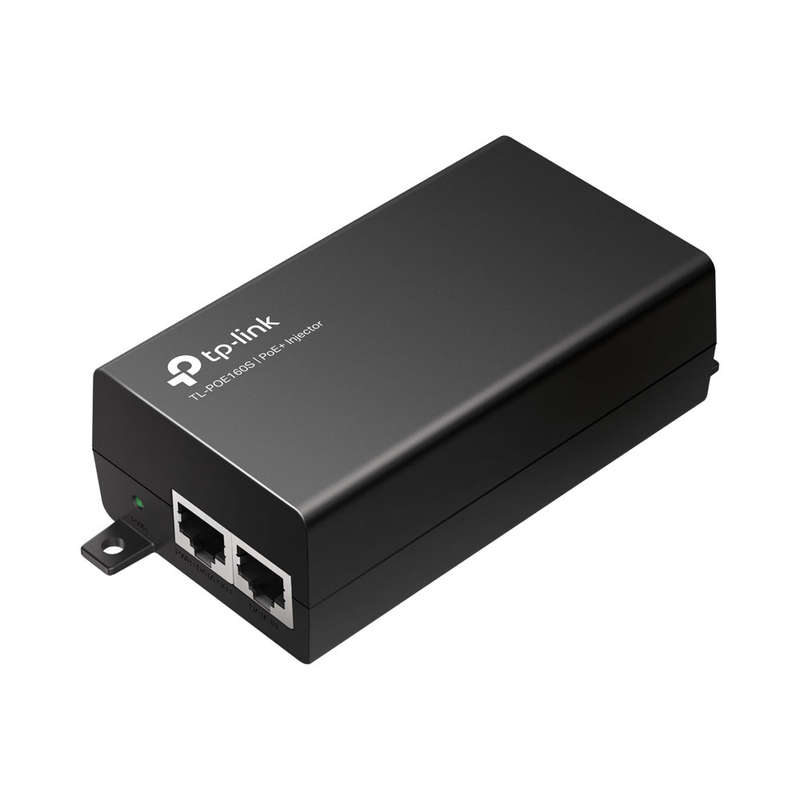

TP-Link TL-POE160S Dual Port PoE+ Injector
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| NETWORK | |
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| GENERAL | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0C to 40C (32F to 104F) |
| Storage Temperature: -40C to 70C (-40F to 158F) | |
| Operating Humidity: 10% to 90%RH non-condensing | |
| Storage Humidity: 5% to 90%RH non-condensing | |
| HARDWARE FEATURES | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) |
| EIA/TIA-568 100 STP (maximum 100 m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) | |
| EIA/TIA-568 100 STP (maximum 100 m) | |
| 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) | |
| Ports | 1 10/100/1000Mbps RJ45 data-in port |
| 1 10/100/1000Mbps RJ45 power+data-out port | |
| 1 AC power port | |
| Power Consumption | Input: 100-240 V, 50/60 Hz |
| Output: Auto-determine the necessary power requirements (max. 30 W) | |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD |
| Auto-determine the necessary power requirements | |
| Wall-mounting and desktop installation supported | |
| Plug-and-Play | |
| LED Indicator | ON: Supplying power normally |
| OFF: No power supply | |
| Dimensions ( W x D x H ) | 4.9 x 2.3 x 1.4 in |
| (125 x 59 x 37 mm) | |
