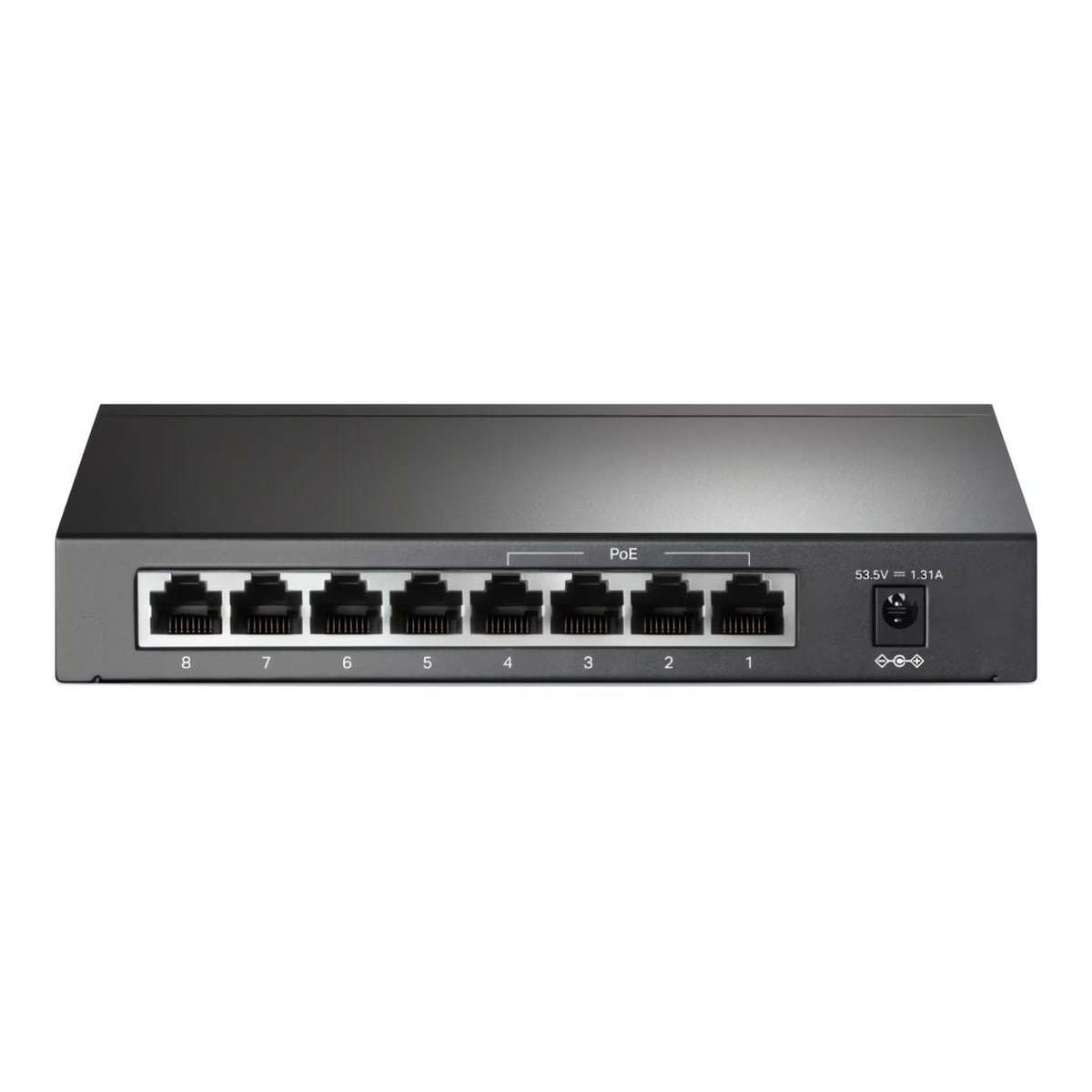

TP-Link TL-SF1008P Unmanaged Network Switch Fast Ethernet 10/100 Mbits PoE Olive

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc.

Features:

• 8× 10/100 Mbps RJ45 ports
• 4× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 66 W for all PoE ports^*

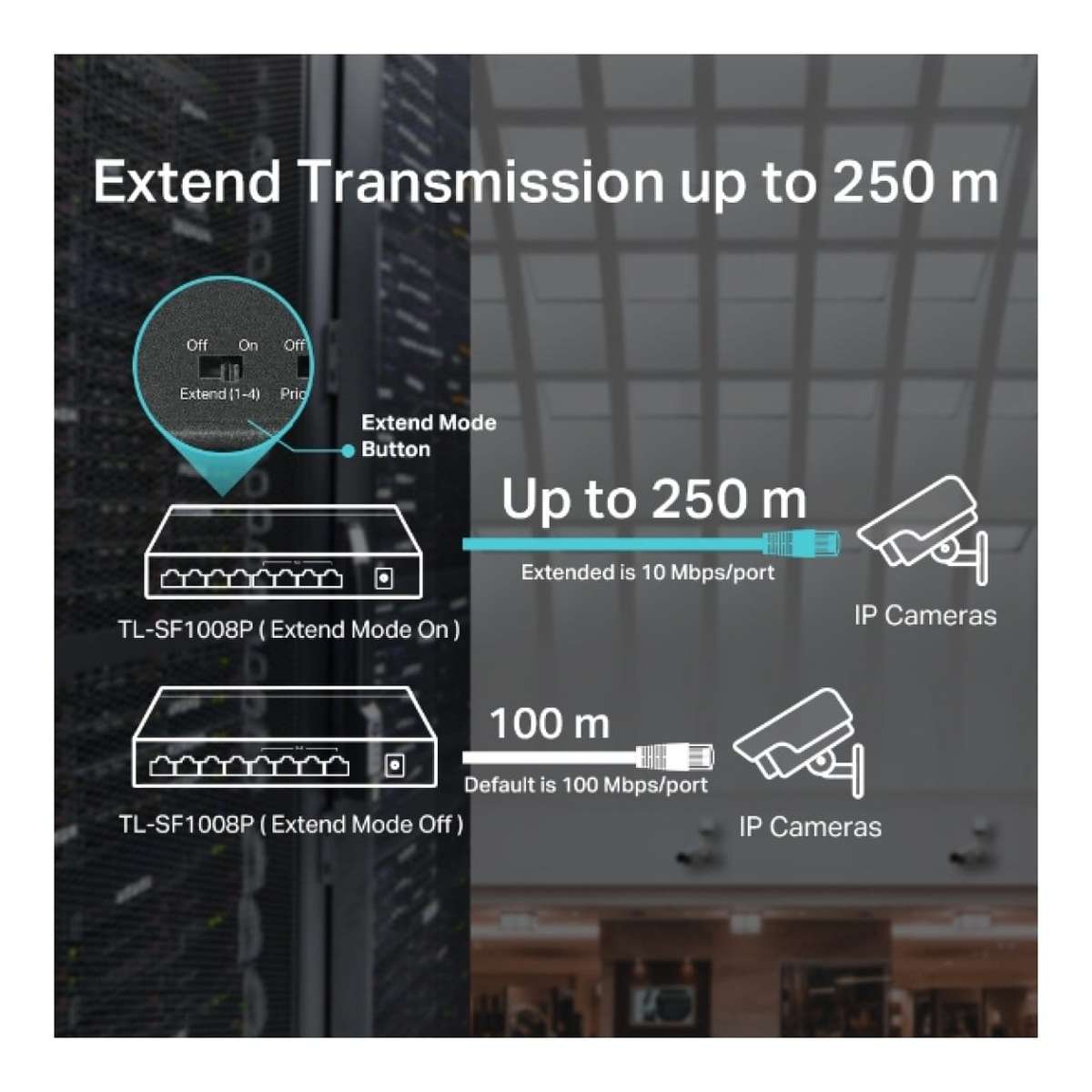

• Up to 250m data and power transmitting range under Extend Mode^**
• Priority Mode ensures high priority of ports 1—2 to guarantee the quality of sensitive application

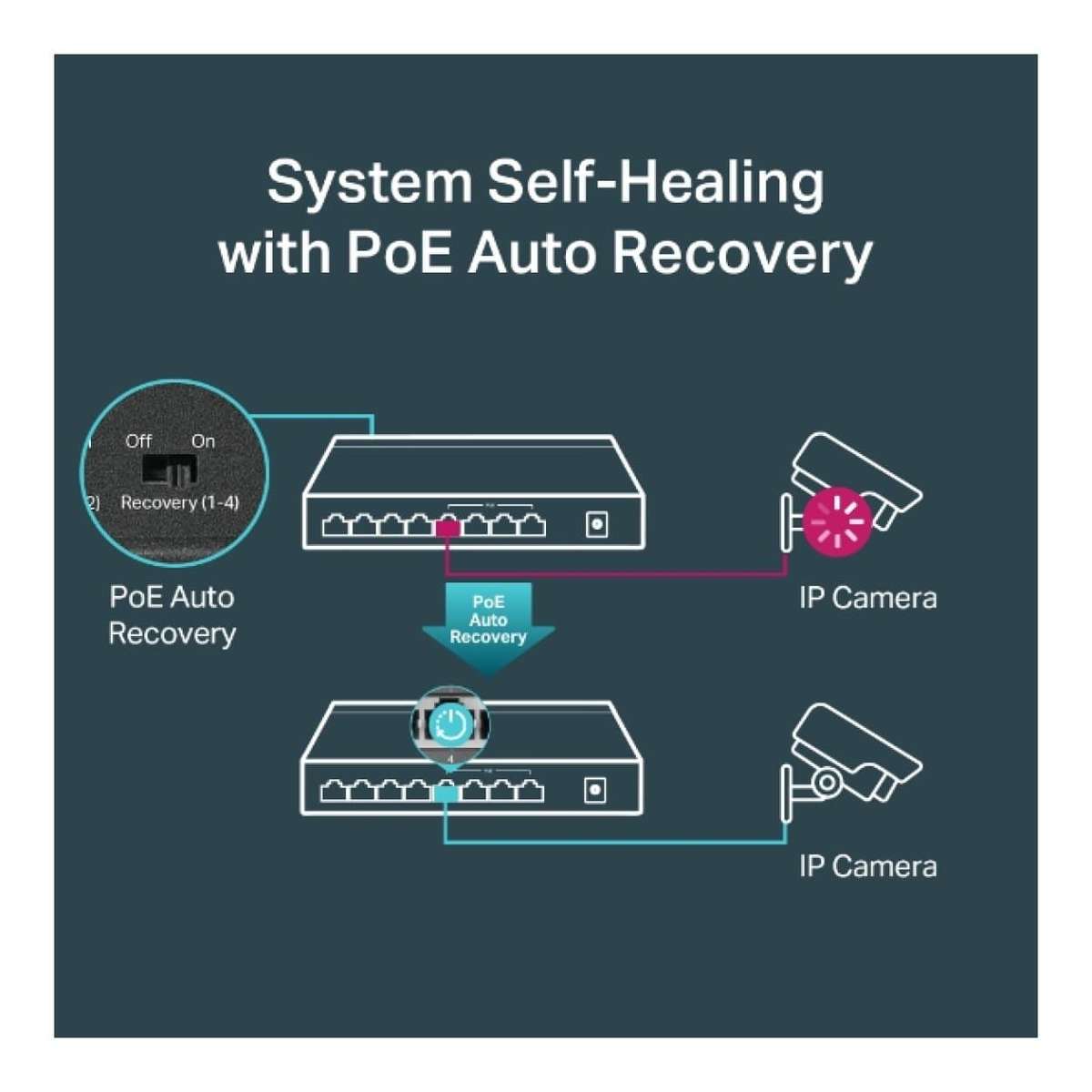

• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location

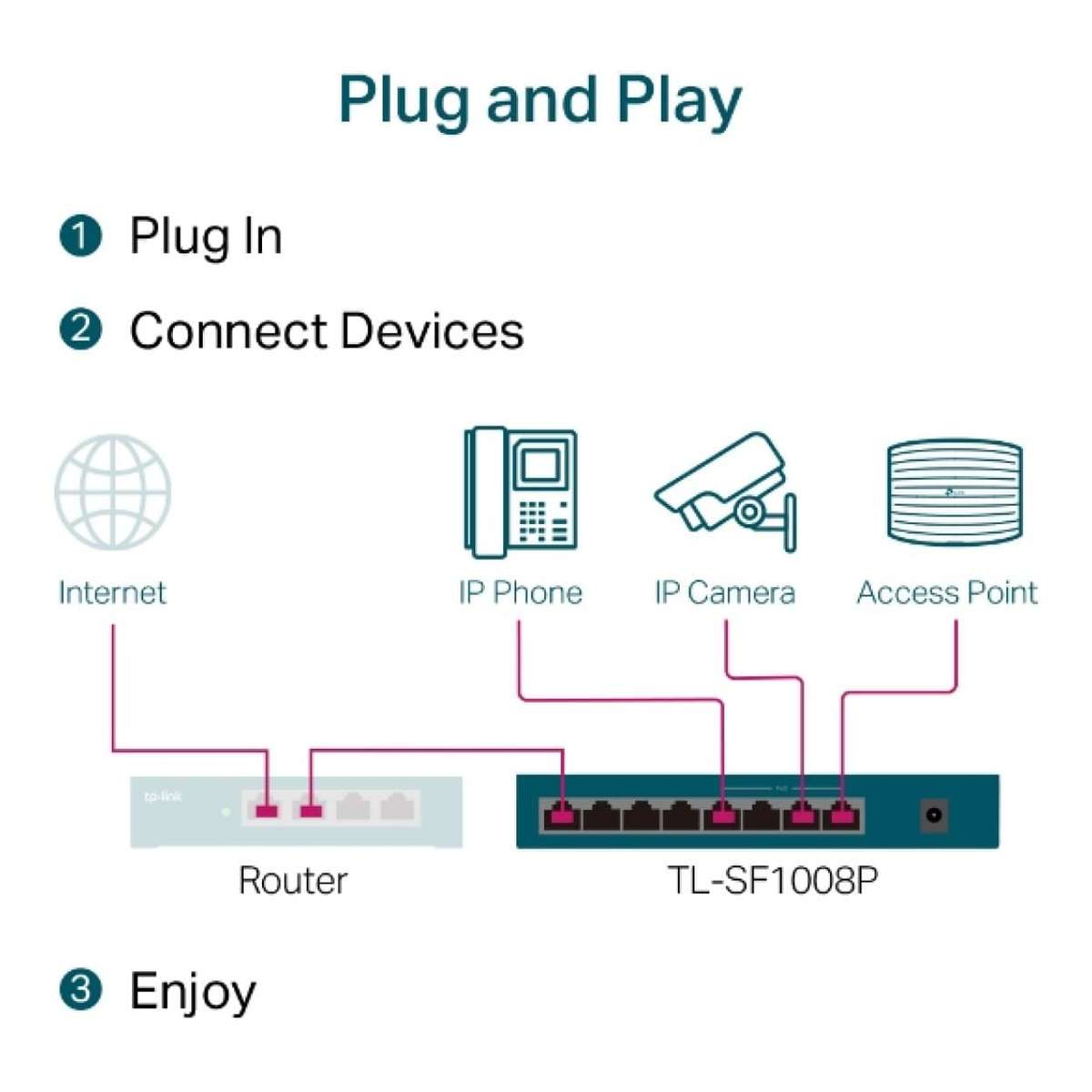

• Plug and play with no configuration required

Power over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). -Overload Arrangement TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o- the power of the lowest-priority port. -Port Priority Function Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use

TL-SF1008P is easy to install and use. It requires no confi­guration and installation. With desktop design, outstanding performance and quality, the TP-LINK's TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Technical Specifications:

Hardware Features

Interface
8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
Auto Negotiation
Auto MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

External Power Supply
External Power Adapter (Output: 53.5 V DC / 1.31 A)

Packet Forwarding Rate
1.1904 Mpps

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1—4
Power Supply: 66 W

MAC Address Table
2K

Jumbo Frame
2 KB

Switching Capacity
1.6 Gbps

Dimensions (W x D x H)
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption
2.27 W (220 V/50 Hz, no PD connected)
75.33 W (220 V/50 Hz, with 66 W PD connected)

Max Heat Dissipation
7.74 BTU/h (no PD connected)
256.88 BTU/h (with 66 W PD connected)

Software Features

Advanced Features
Extend Mode Button (Ports 1—4)
Priority Mode Button (Ports 1—2)
PoE Auto Recovery Button (Ports 1—4)
MAC Address Auto-Learning and Auto-Aging

Transmission Method
Store-And-Forward

Others

Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0—40 ⃠(32—104 â)
Storage Temperature: -40—70 ⃠(-40—158 â)
Operating Humidity: 10—90% RH non-condensing
Storage Humidity: 5—90% RH non-condensing

What's in the Box:

• TL-SF1008P
• Power Adapter
• Installation Guide
• Rubber Feet
