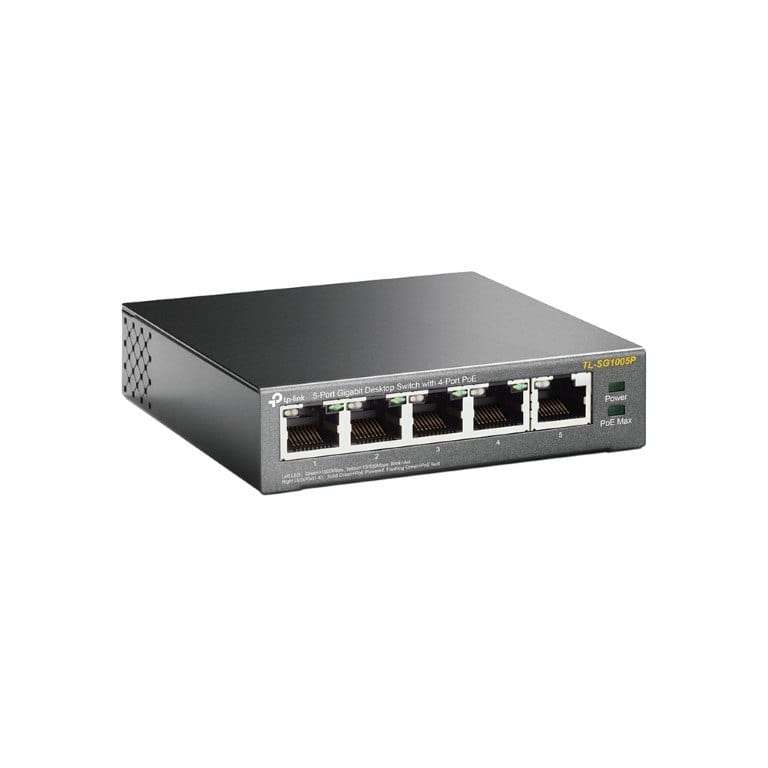

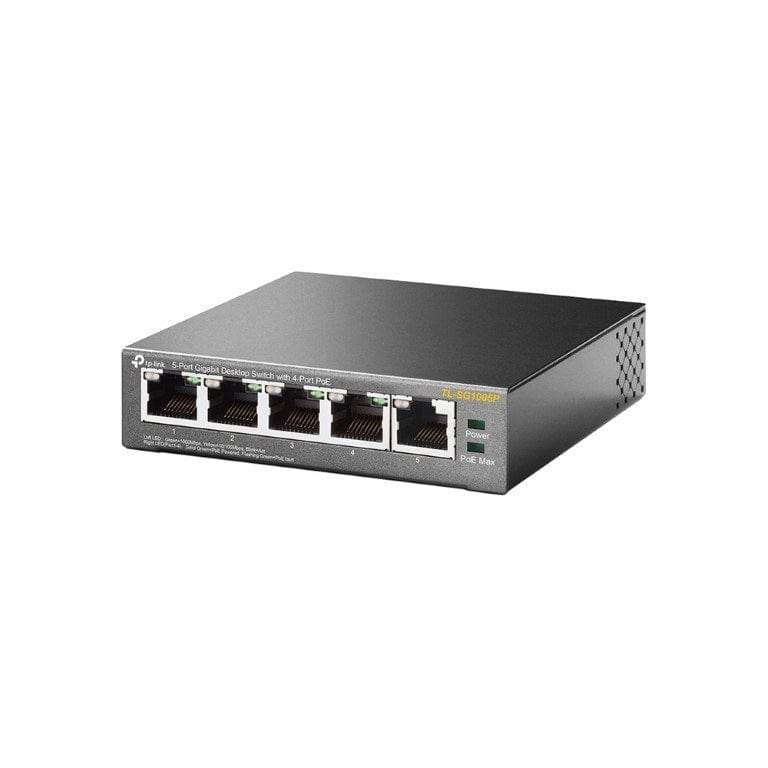

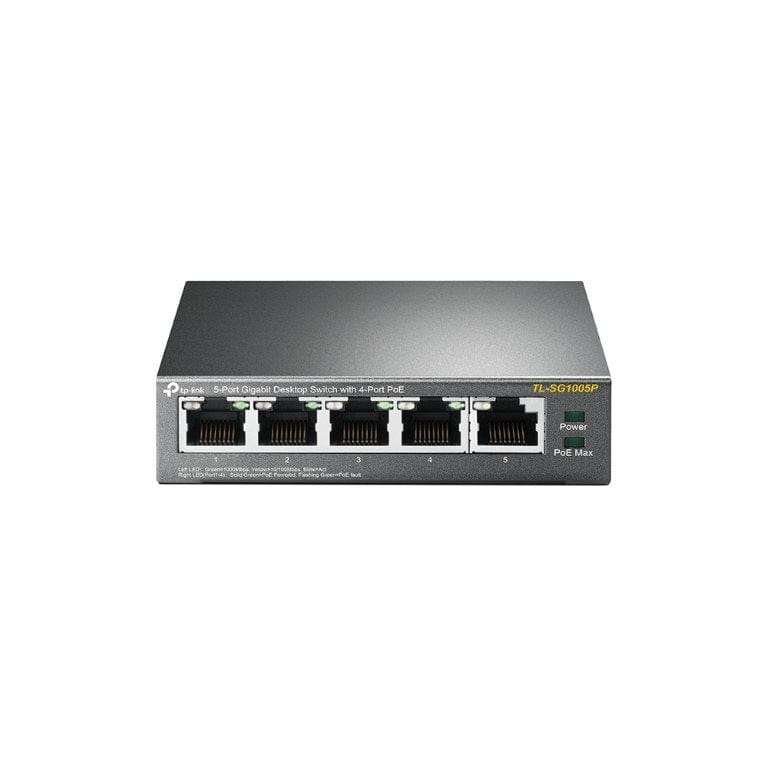

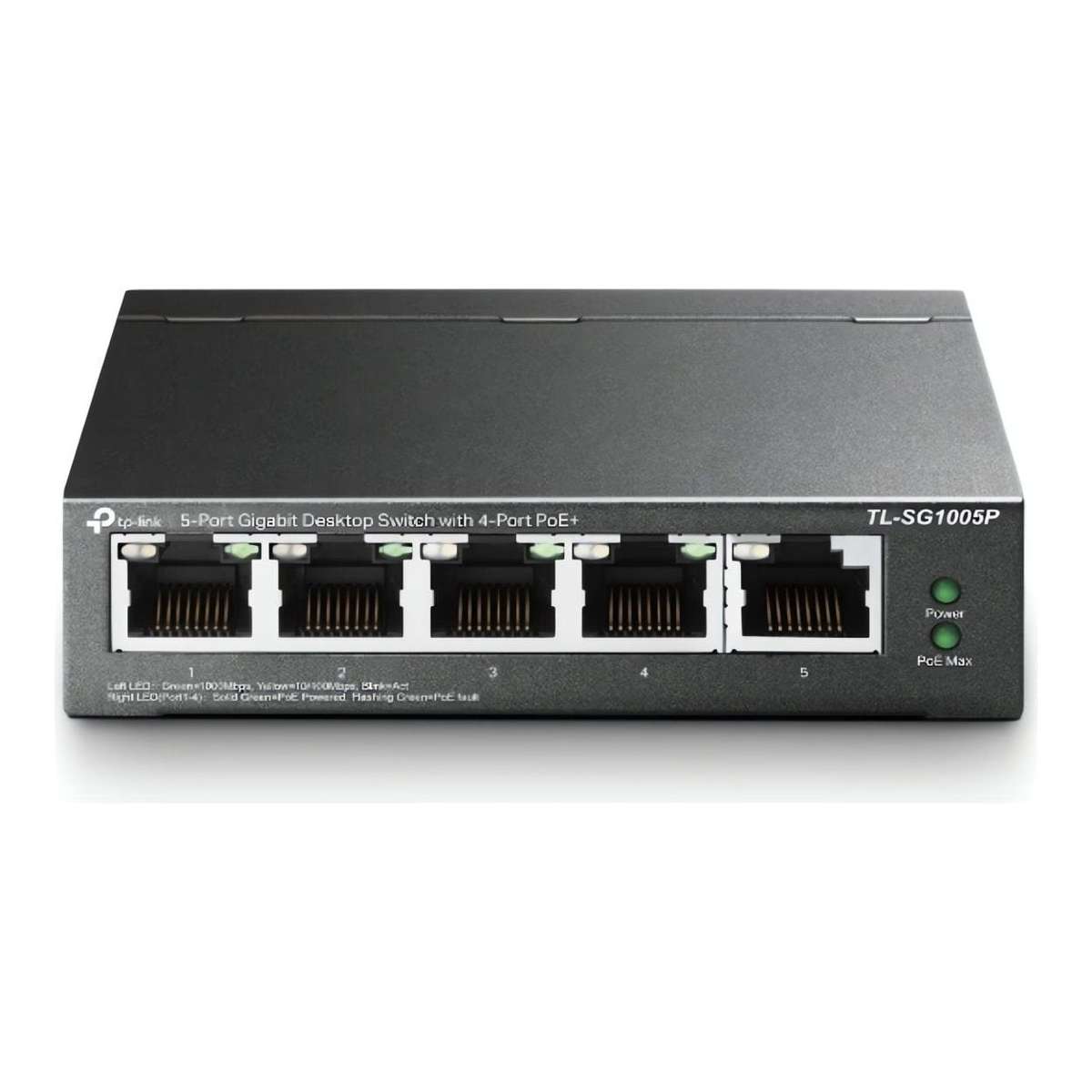

TP-Link TL-SG1005P 5-port GbE Unmanaged Desktop Switch with 4x PoE+ ports

Features

• 5x 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for all PoE ports^*
• Up to 250m data and power transmitting range under Extend Mode^**
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1—2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)

Technical Specification

• 5x 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100 STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100 STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100 STP (maximum 100m)

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1—4
• Power Supply: 65 W

Package Contents

• TL-SG1005P
• Power Adapter
• Installation Guide
