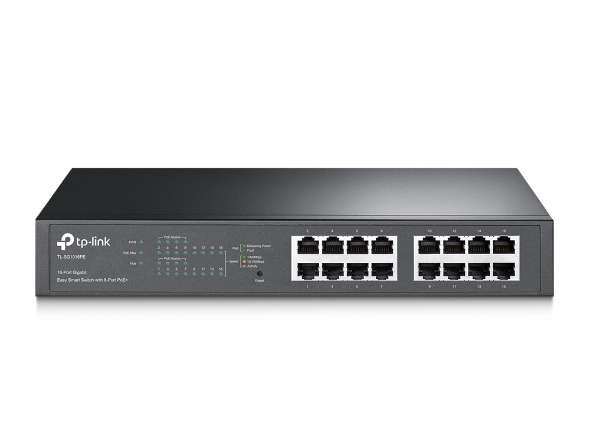

16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
TL-SG1016PE
16 10/100/1000Mbps RJ45 ports:
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 110W, up to 30W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
What This Product Does:
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works:
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement:
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function:
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.
Easy To Use:
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Specifications:
Hardware Feature:
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
- 16 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- Fan Quantity: 1
- Physical Security Lock: Yes
- Power Consumption: Maximum: 124.4W (220V/50Hz)
- PoE Ports (RJ45):
- Standard: 802.3 at compliant
- PoE Ports: Port 1- Port 8
- PoE Power Budget: 110W
- Dimensions ( W x D x H ): 11.6x7.1x1.7 in. (294x180x44 mm)
- Mounting: Rack Mountable
- Max Power Consumption:
- 14.72W (110V/60Hz with no PD connected)
- 131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation:
- 50.22 BTU/h (with no PD connected)
- 448.41 BTU/h (with 110W PD connected)
Performance:
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.8Mbps
- MAC Address Table: 8K
- Packet Buffer Memory:4.1Mbit
- Jumbo Frame: 9KB
Software Features:
Quality of Service:
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN:
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management:
- Web-based GUI
- Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
Others:
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows for running Utility
Environment:
- Operating Temperature: 0?-40? (32?-104?)
- Storage Temperature: -40?-70? (-40?-158?)
- Operating Humidity: 10%-90% non-condensing
- Storage Humidity: 5%-90% non-condensing
What's in the box
TP-Link TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
