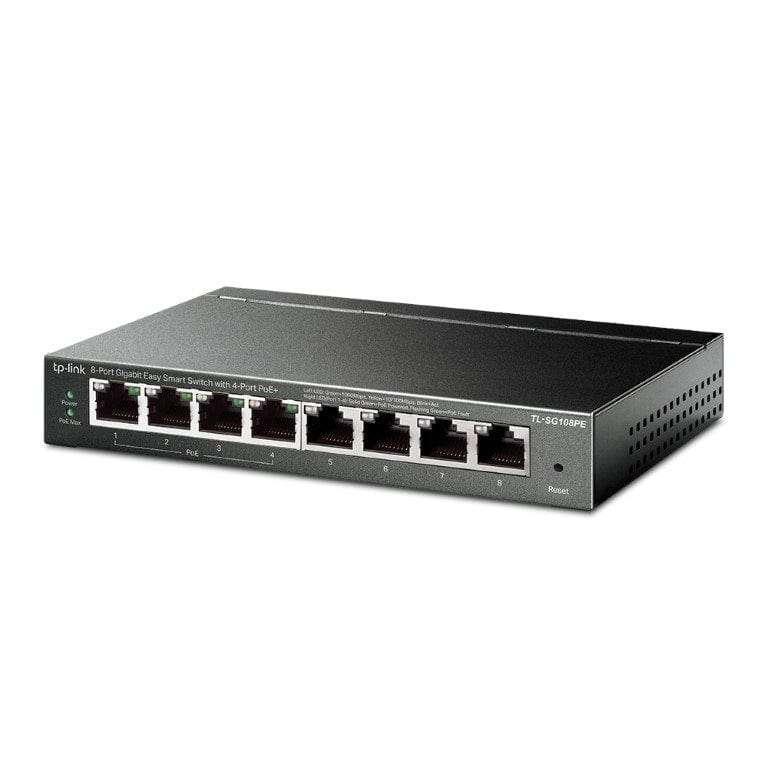

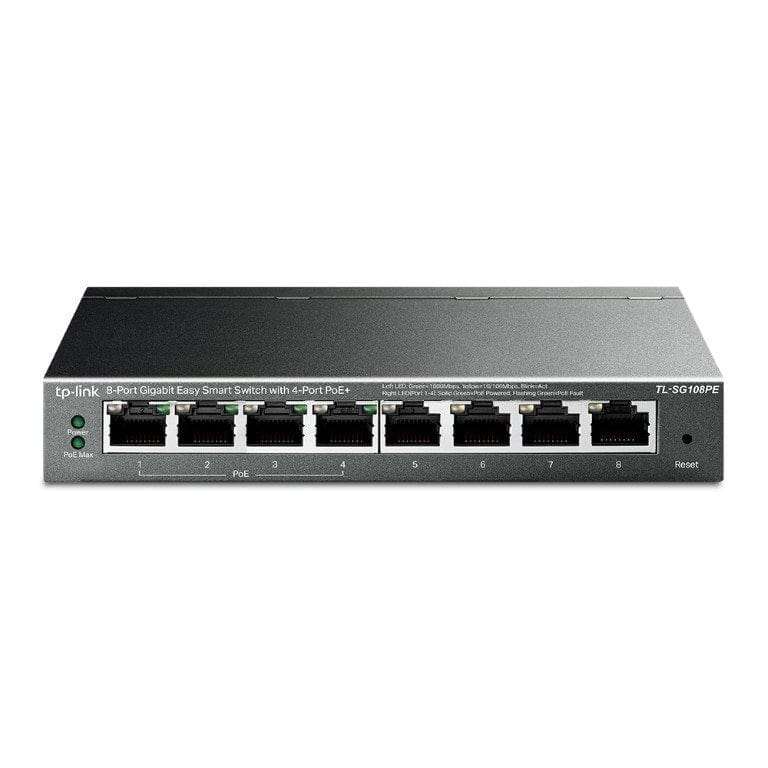

TP-Link 8-port Gigabit Easy Smart Switch with 4-port PoE+ TL-SG108PE
The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Features
- Eight 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 64 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Technical Specification
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface: 8x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media:
-
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-
EIA/TIA-568 100 STP (maximum 100m)
-
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-
EIA/TIA-568 100 STP (maximum 100m)
-
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45)
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
MAC Address Table: 4 K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Package Contents:
-
TL-SG108PE
-
Power Adapter
- Installation Guide
- Rubber Feet
