16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed
What This Product Does
The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring.
So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network!
This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free.
No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
EEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Interface
16 × 10/100/1000Mbps Ports
Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
11.3 × 4.4 × 1.0 in.
(286 × 112 × 25 mm)
Max Power Consumption
10W
Max Heat Dissipation
34.1 BTU/h
PERFORMANCE
Packet Forwarding Rate
23.8Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1Mb
Jumbo Frame
10KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
FCC ,RoHS
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box

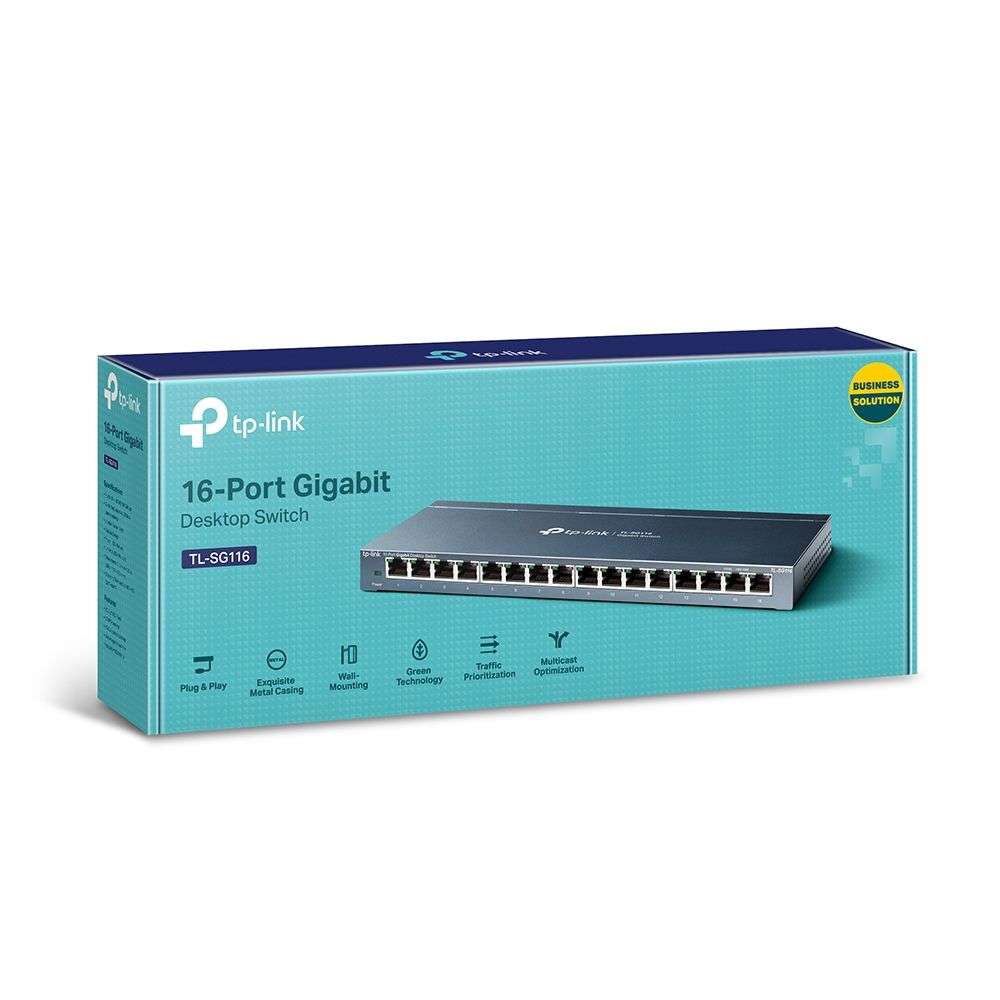

1 x 16-Port 10/100/1000Mbps Desktop Switch
1 x Power Adapter
1 x Installation Guide
1 x Rubber Feet
