| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, |
| | IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
| Interface | 9x 10/100/1000Mbps RJ45 Ports |
| | 1x 1000Mbps Combo SFP/RJ45 Port |
| | AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| | EIA/TIA-568 100 STP (maximum 100m) |
| | 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| | EIA/TIA-568 100 STP (maximum 100m) |
| | 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
| | EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| | PoE Ports: Port 1- Port 8 |
| | PoE Power Budget: 123W |
| Dimensions ( W x D x H ) | 209 x 126 x 26 mm |
| Max Power Consumption | 7.66W (220V / 50Hz with no PD connected) |
| | 141.54W (220V / 50Hz with 123W PD connected) |
| Max Heat Dissipation | 26.12 BTU/h (220V / 50Hz with no PD connected) |
| | 482.65 BTU/h (220V / 50Hz with 123W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4 K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-Based/802.1p/DSCP priority |
| | Support 4 priority queues |
| | Rate Limit |
| | Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 |
| | Static Link Aggregation |
| | Port Mirroring |
| | Cable Diagnostics |
| | Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| | MTU/Port/Tag VLAN |
| PoE | Extend Mode** |
| | PoE Auto Recovery |
| Management | Web-based GUI |
| | Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |

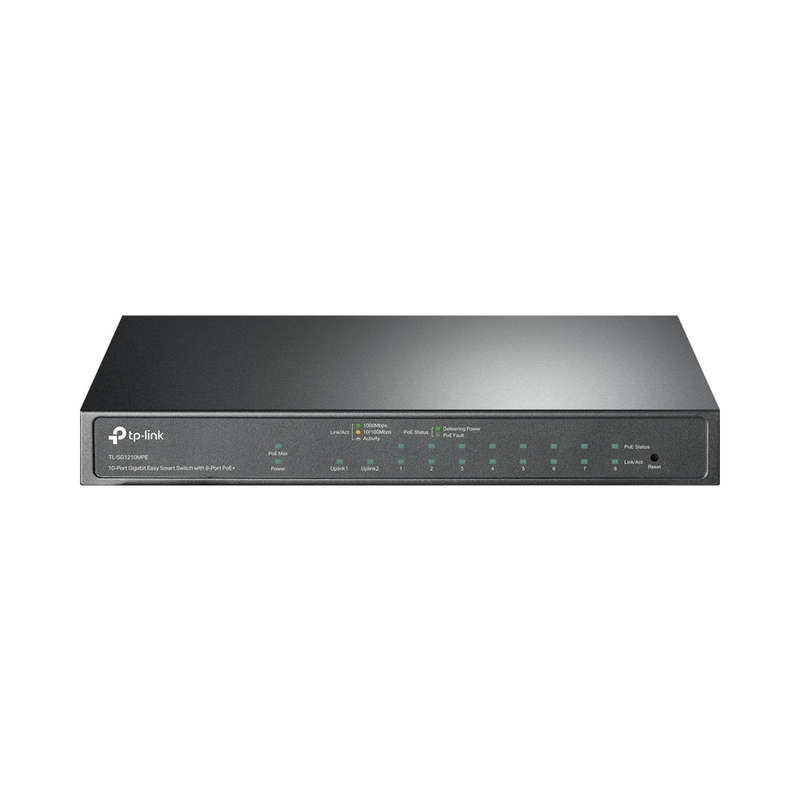

| Package Contents | TL-SG1210MPE |
| | Power Adapter |
| | Installation Guide |
| | Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0°C~40°C |
| | Storage Temperature: -40°C~70°C |
| | Operating Humidity: 10%~90%RH non-condensing |
| | Storage Humidity: 5%~95%RH non-condensing |
