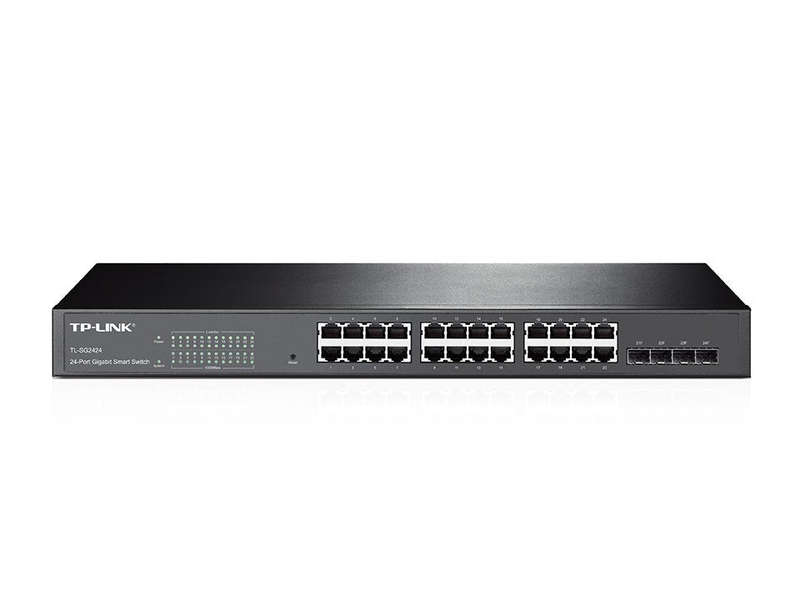

TP-Link TL-SG2424 24-Port Gigabit Smart Switch is a high-performance Layer 2 switch built for enterprise and business networks requiring secure, scalable, and high-speed switching. Equipped with 24 Gigabit RJ45 ports and 4 combo SFP slots, this smart-managed switch delivers 48Gbps switching capacity, seamless fiber uplink support, and advanced traffic management features.
This brand-new switch supports robust Layer 2 capabilities including VLANs, IGMP snooping, LACP, STP/RSTP/MSTP, and storm control. Its intuitive web-based GUI and CLI management interfaces, along with SNMP, RMON, and Syslog support, make it ideal for administrators managing medium to large-scale networks. With a compact 1U rackmount design and three integrated cooling fans, it ensures reliable operation in demanding IT environments.
Key Features & Benefits:
24 Gigabit RJ45 Ports + 4 Combo SFP Slots High-speed switching with uplink flexibility for fiber connections.
48Gbps Switching Capacity Non-blocking architecture supports bandwidth-intensive applications.
Advanced QoS & VLAN Support Prioritize traffic with 802.1p/DSCP and manage up to 512 VLANs concurrently.
Robust Security Features Includes port security, access control lists, storm control, SSL/SSH, and 802.1X.
Full Layer 2 Management IGMP snooping, LACP, Spanning Tree, LLDP, BPDU guard, and more.
Smart Management Tools Web GUI, CLI, SNMP (v1/v2c/v3), RMON, DHCP filtering, and SYSLOG for enterprise-grade network administration.
Built for Reliability Durable metal chassis, rackmountable, and temperature tolerant for demanding setups.
Ideal Uses:
Enterprise & Corporate Networks Scalable switching for backbone and edge connectivity.
Data Centers & Server Rooms High-speed port access with fiber-ready SFP slots.
Schools & Campuses VLAN and security segmentation for managing student, staff, and IoT devices.
Managed Office Buildings Efficient network administration with remote diagnostics and monitoring tools.
Specifications
Condition:
Device with no signs of previous use. Device has been extensively tested and is 100% Functional.
Manufacturer & Model:
TP-Link TL-SG2424
Form Factor:
Rackmount 1U Managed Gigabit Switch
Ports & Interfaces:
24 x 10/100/1000Mbps RJ45 Ports (Auto MDI/MDIX)
4 x Combo 100/1000Mbps SFP Slots
Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d/s/w/q/p
Performance:
Switching Capacity: 48Gbps
Forwarding Rate: 35.7Mpps
MAC Address Table: 8K
Jumbo Frame Support: 10,240 Bytes
Fans: 3 Internal Cooling Fans
Layer 2 Features:
IGMP Snooping v1/v2/v3
LACP (6 groups, 4 ports per group)
STP/RSTP/MSTP
Loopback Detection, LLDP/LLDP-MED
BPDU Guard & Filtering
Port/Flow-Based Rate Limiting
Voice VLAN Support
VLANs Supported: Up to 512 (out of 4K IDs)
Security Features:
Port Security
Broadcast/Multicast/Unknown Unicast Storm Control
SSH v1/v2, SSL v2/v3/TLS v1
MAC/IP/TCP/UDP-Based Access Control Lists
Time Range-Based Filtering
Quality of Service (QoS):
4 Priority Queues
Scheduling: SP, WRR, SP+WRR
CoS/DSCP Prioritization
Management & Monitoring:
Web GUI, CLI (Telnet/SSH)
SNMP v1/v2c/v3 (Public and TP-Link Private MIBs)
RMON (1, 2, 3, 9 Groups)
DHCP/BOOTP Client, DHCP Filtering
Port Mirroring
Time Sync: SNTP
Firmware Upgrades via TFTP/Web
Diagnostic Tools: VCT
SYSLOG Support
Power & Environmental:
Power Input: 100~240VAC, 50/60Hz
Power Consumption:
Max with PoE: 216W
Max without PoE: 36W
Operating Temp: 0°C ~ 40°C
Storage Temp: -40°C ~ 70°C
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 90% (non-condensing)
Dimensions & Weight:
440 x 330 x 44 mm (17.32 x 13 x 1.73 in.)
Standard 1U Rackmount Size
Certifications:
CE, FCC, RoHS
Operating System:
Not Applicable (Managed Switch)
Warranty & Inclusions
Warranty: 12-Month Carry-In Warranty
What's in the Box?
TP-Link TL-SG2424 Switch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Enterprise-Level Switching High-capacity performance for business-critical networks.
Versatile Uplink Options Combo SFP slots support fiber uplinks to remote locations.
Complete Management CLI, SNMP, and Web GUI for full administrative control.
Smart & Secure Full Layer 2 support, VLANs, and strong security make it ideal for corporate networks.
