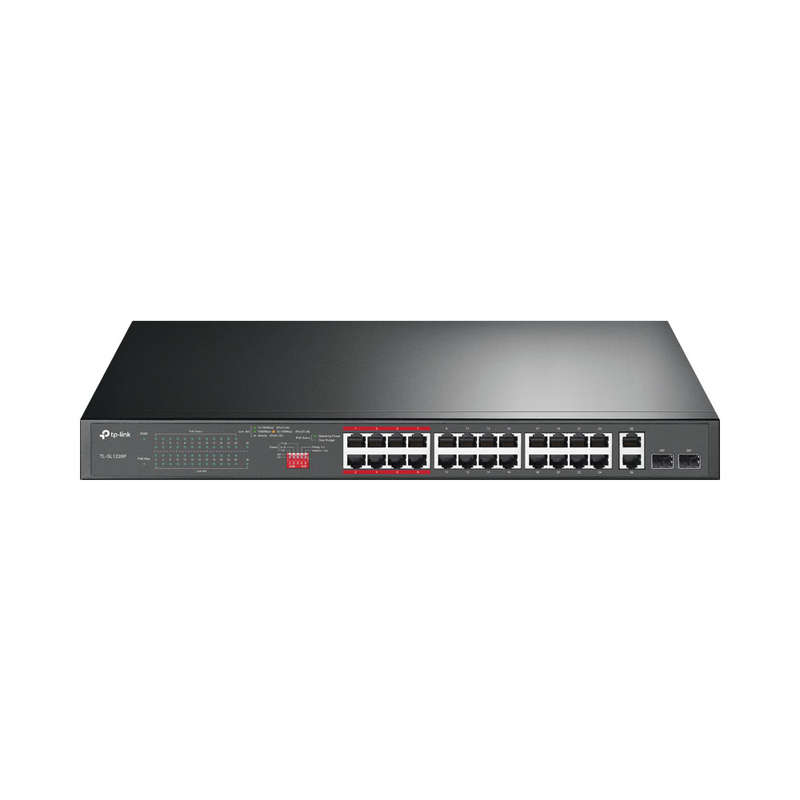

TP-Link TL-SL1226P 24-Port 10/100Mbps plus 2-Port Gigabit and 2-Port Gigabit SFP Unmanaged PoE+ Switch
Dedicated PoE Switch for Small and Medium Business IP Surveillance
FEATURES:
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 24x PoE+ 10/100Mbps RJ45 Ports |
| 2x 10/100/1000Mbps RJ45 Ports | |
| 2x Combo Gigabit SFP Slots | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100 STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100 STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100 STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Backup Bandwidth | 8.8Gbps |
| Packet Forwarding Rate | 6.5472Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Port 1 — Port 24 | |
| PoE Power Budget: 250 W | |
| Mac Address Table | 8 K |
| Jumbo Frame | 10 KB |
| Switching Capacity | 8.8Gbps |
| Dimensions ( W x D x H ) | 440 x 180 x 44 mm |
| Max Power Consumption | 18.32W (220/50 Hz. no PD connected) |
| 294W (220/50 Hz. with 250W PD connected) | |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) |
| 1002.54 BTU/h (with 250W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs |
| Extend Mode (Up to 250m PoE power supply and data transmission) | |
| Priority Mode | |
| Isolation Mode | |
| PD Detection | |
| Intelligent Power Supply | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE802.3x Flow Control | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL1226P |
| Power Cable | |
| Installation Guide | |
| Two mounting brackets and the fittings | |
| Environment | Operating Temperature: 0—50C |
| Storage Temperature: -40—70C | |
| Operating Humidity: 10—90% non-condensing | |
| Storage Humidity: 5—90% non-condensing |
