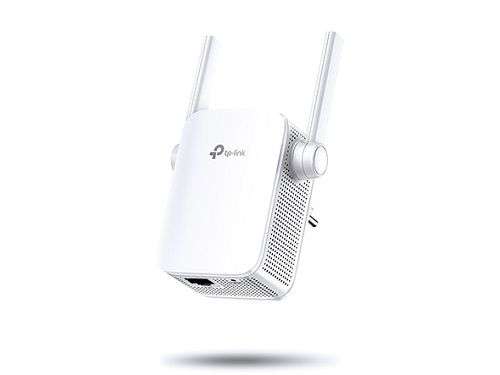

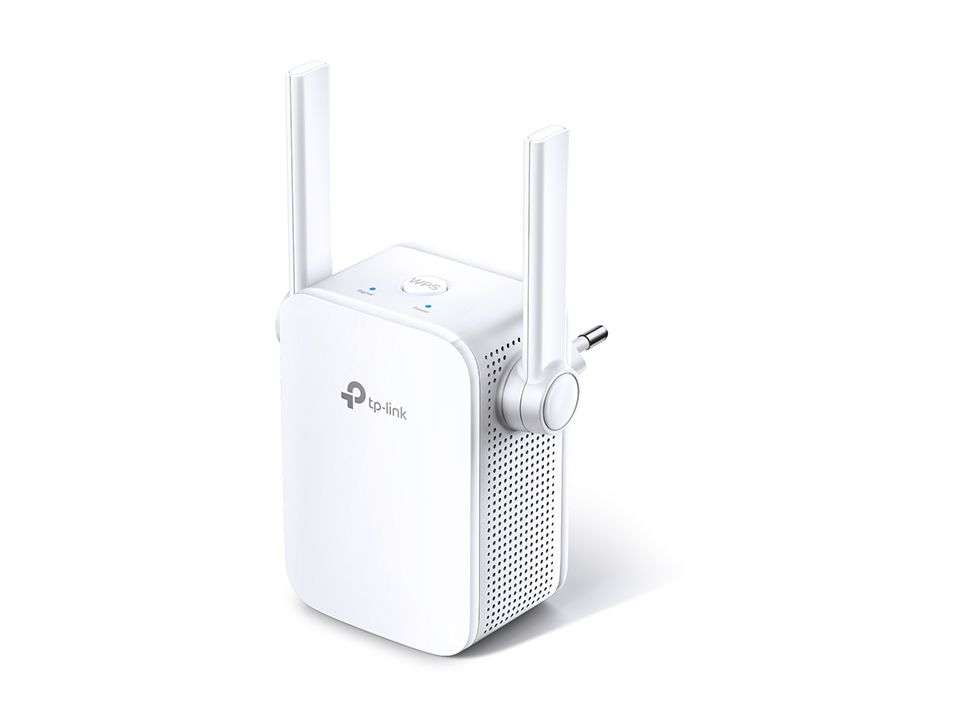

TL-WA855RE
300Mbps Wi-Fi Range Extender
Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity
External antennas for faster and more reliable Wi-Fi
Supports AP mode which creates a new Wi-Fi Access point
Easily expand wireless coverage at a push of the Range Extender button
Set the Power Schedule for the range extender for power-saving
Works with Any Wi-Fi Router
Specifications
Hardware Features
Plug Type : EU, UK, US
Interface : 1 x 10/100M Ethernet Port (RJ45)
Button : WPS Button, Reset Button
Power Consumption : 3.6W
Dimensions ( W x D x H ) : 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm)
Antenna : 2 x external
Wireless Features
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 2.4~2.4835GHz
Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity
270M: <-68dBm@10% PER
130M: <-68dBm@10% PER
108M: <-68dBm@10% PER
54M: <-68dBm@10% PER
11M: <-68dBm@8% PER
6M: <-68dBm@10% PER
1M: <-68dBm@8% PER
Transmit Power : < 20 dBm (EIRP)
Wireless Modes : Range Extender/Access Point
Wireless Functions : Wireless MAC Address Filtering, Domain Login Function, Transmit Power Control
Wireless Security : 64/128/152-bit WEP, WPA-PSK / WPA2-PSK
Others
Certification : CE, RoHS
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
This Extender best supports WIFI3
Customer support line: 010 590 6147
Times: 8:30 to 5:00pm
Monday to Friday
What's in the box
300Mbps Wi-Fi Range Extender TL-WA855RE
Quick Installation Guide
