Wired or Wireless?Why not Both!
Meet an Excellent Home Network Solution
HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home's existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
Play&Play with no configuration required
Wi-Fi Auto-Sync for
Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

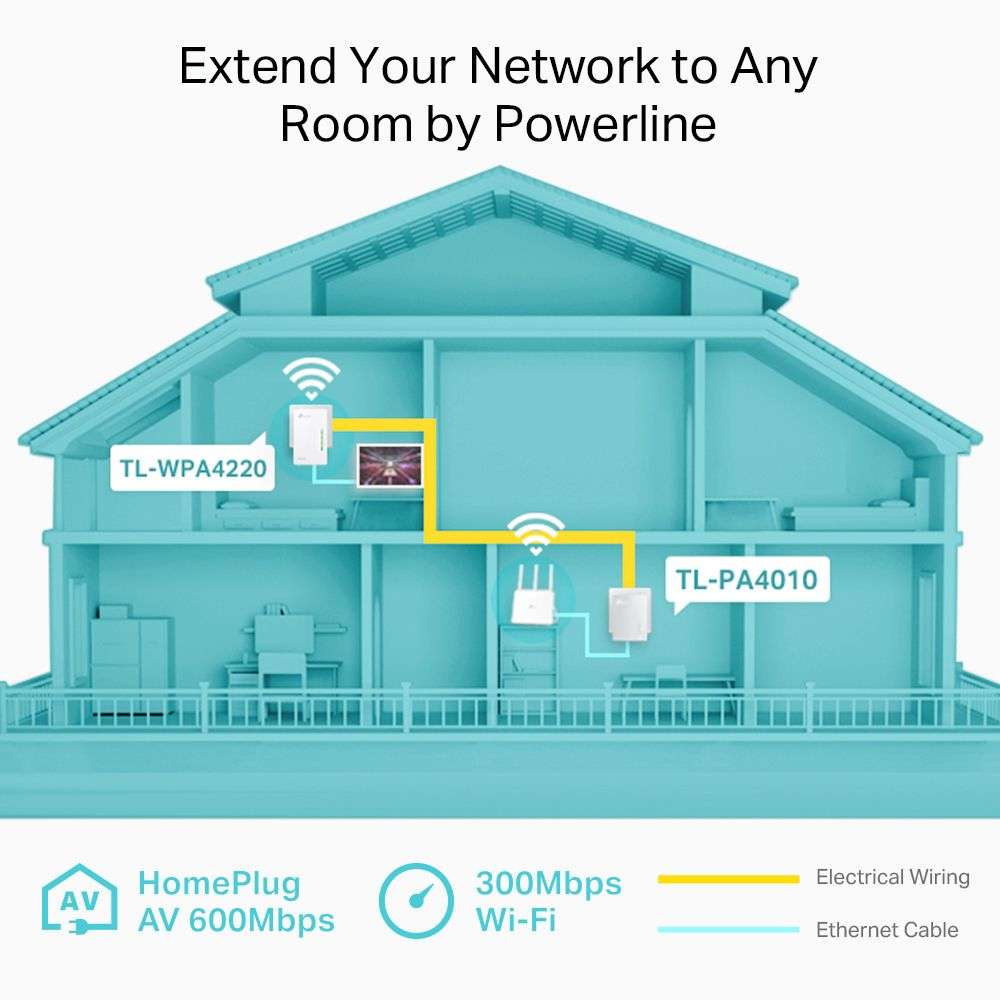

Extend Your Powerline Network to Any Room
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV2, TL-WPA4221 KIT is perfect for providing stable, high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters, bring network to anywhere there is a power outlet.

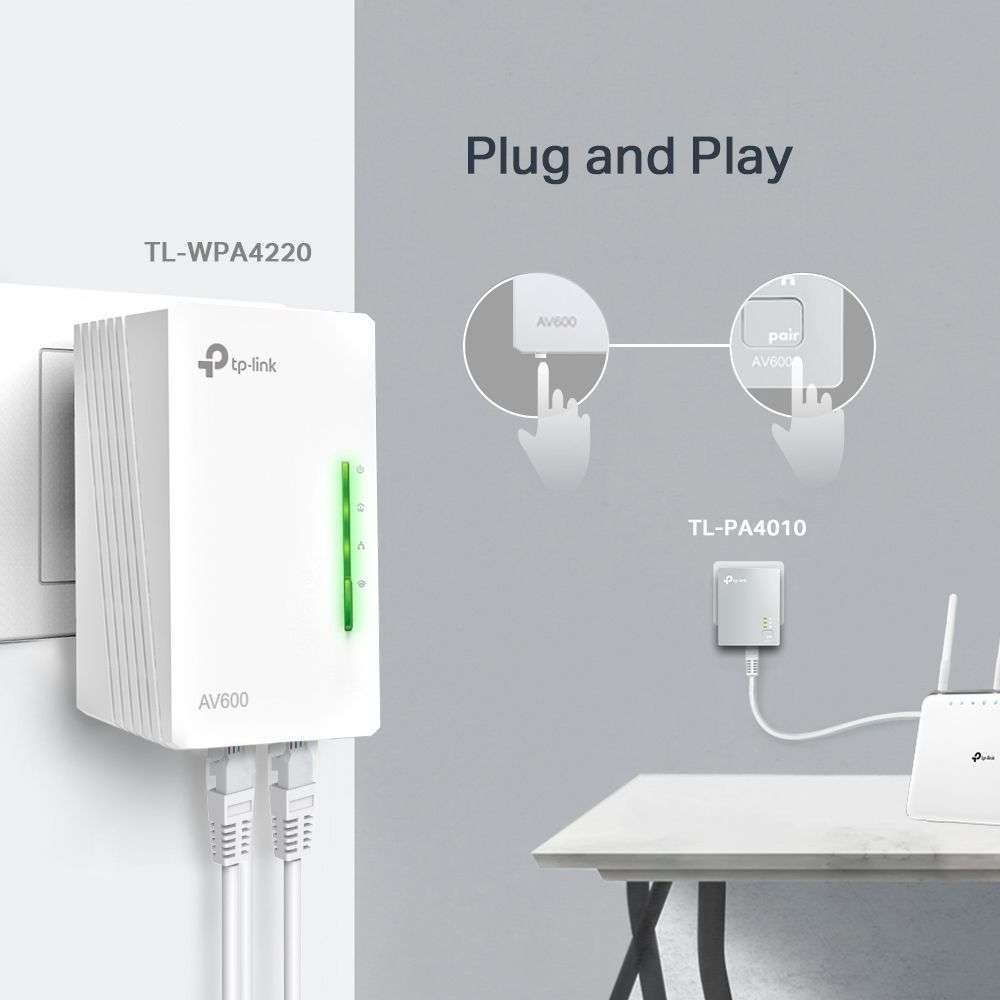

Plug and Play!
Plug the TL-PA4010 in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! Just enjoy the seamless, high speed wired and wireless network.
Press the "Pair" buttons on both adapters to create a more secure network.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/en.
SPECIFICATIONS
HARDWARE FEATURES
Plug Type
EU, AU
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface
2*10/100Mbps Ethernet Port
Button
Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption
TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
TL-PA4010: Maximum: 2.6W, Typical: 2.3W
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )
TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range
300 Meters over electrical circuit
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power
CE: FCC:
Wireless Security
64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions
Enable/DisableWireless Radio,WMM, Wireless Statistics
SOFTWARE FEATURES
Modulation Technology
OFDM (PLC)
Encryption
Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification
CE, FCC, RoHS
System Requirements
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box

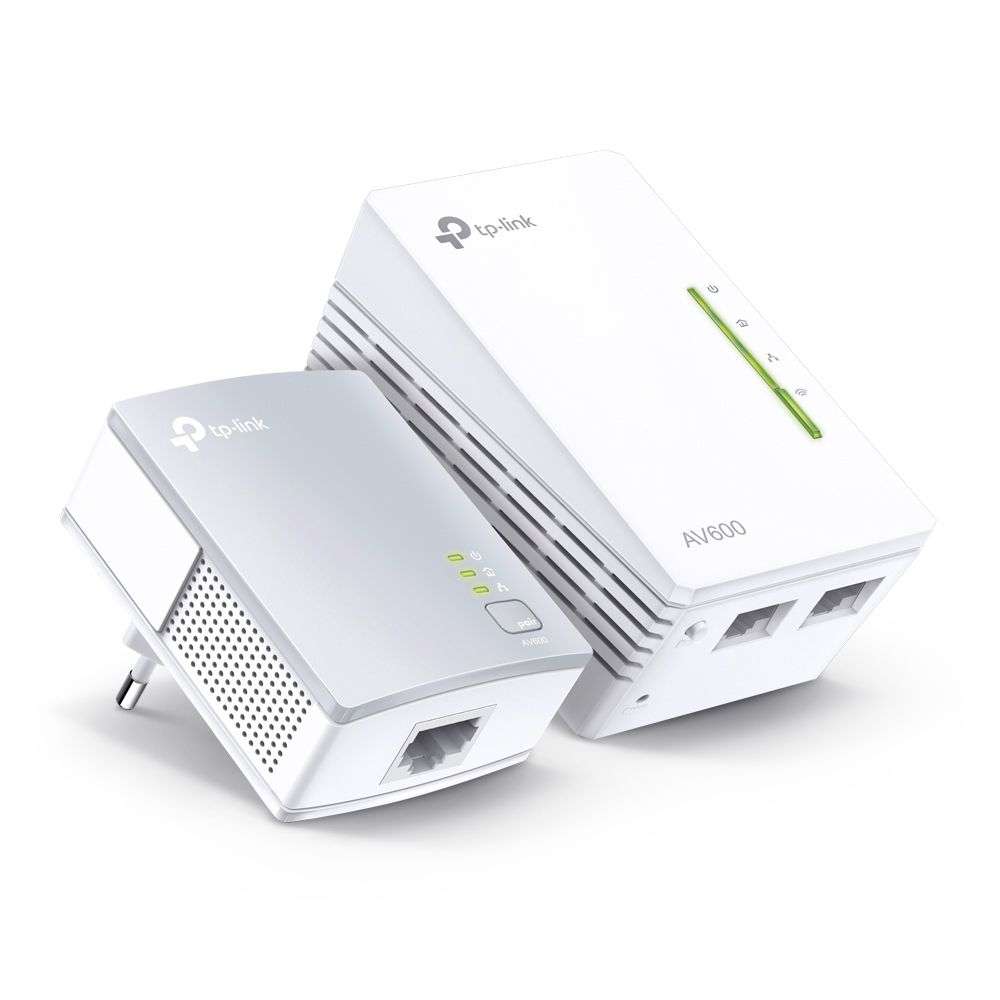

Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
2 x 6.5 ft. (2 m) Ethernet cable (RJ45)
1x Quick Installation Guide
