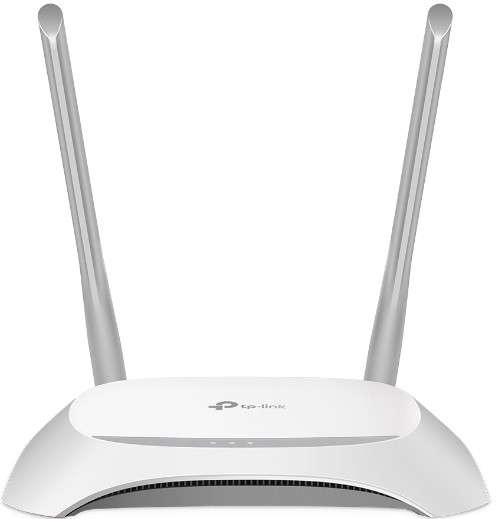

The 300 Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. The TL-WR840N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
r
The TP-Link TL-WR840N 300Mbps Wireless N Router offers fast Wi-Fi speeds ideal for HD streaming and online gaming, with support for four modes: Router, Access Point, Range Extender, and WISP. Features like Parental Controls, Guest Network access, and IPTV optimization ensure secure and efficient connectivity for home or small office use. With easy setup via the Tether app and compatibility with IPv6, it provides a versatile and user-friendly networking solution.
r
r
Specifications
r
Product Code: TL-WR840N
Description: TP-Link TL-WR840N 300Mbps Wireless N Speed
Interfaces: 4x 10/100 Mbps LAN ports & 1x 10/100Mbps WAN port
WPS/RESET Button: Yes
Antenna: 2x External Antennas
External Power Supply: 9VDC / 0.6A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna Gain: 2 x 5 dBi
Frequency: 2.4 - 2.4835 GHz
Transmit Power: <20 dBm
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service: WMM, Bandwidth Control
WAN Types: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management: Access Control, Local Management, Remote Management
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, Comexe, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
Protocols: Support IPv4 and IPv6
Guest Network: 2.4GHz Guest Network
Dimensions (W x D x H): 182 x 128 x 35 mm
Signal Rates
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
