300 Mbps Multi-Mode Wi-Fi Router
TL-WR844N
High-Speed Wi-Fi - 300 Mbps wireless transmission rate is ideal for both bandwidth sensitive tasks and basic work.
Boosted Coverage - Two omnidirectional antennas and 2×2 MIMO deliver strong Wi-Fi signal and reliable connections.
Multi-Mode 4 in 1 - Supports Router, Access Point, Range Extender, and WISP modes to meet any network need.
Parental Controls - Manages when and how connected devices can access the internet.
Guest Network - Provides separate access for guests while securing the host network.
Smooth HD Streaming - Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
IPv6 Supported - Compatible with the IPv6 (the latest Internet Protocol version 6).
Reliable Wi-Fi for Your Daily Delight - 300 Mbps Multi-Mode Wi-Fi Router -TL-WR844N
High-Speed Wi-Fi
Enjoy web browsing, HD streaming, and downloading with your family. 300 Mbps wireless speeds on the 2.4 GHz band meet your daily needs.
Strong Signal, Great Coverage
Enhance wireless signal transmission with two 5 dBi antennas, 2×2 MIMO technology, and five high-speed Ethernet ports to provide reliable Wi-Fi and wired connections throughout medium-sized homes.
Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.
Parental Controls - Block content, Limit online time
Guest Network - Use a different password, Secure private network
QoS - Prioritize devices
Multi-Mode 4 in 1
Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices
Access Point Mode
Transform your existing wired network into a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your house.
WISP Mode
Connect to the ISP network wirelessly in areas without wired service.
Smooth Video Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.
IPv6 Compatible
Compatible with the most recent Internet Protocol version (IPv6). Keep your router future-proof and enjoy the IPv6 services provided by your ISP.
Elegant Design
Designed to conserve space and complement virtually any décor while delivering stable Wi-Fi to your home.
Easy Setup at
Your Fingertips
Set up Wi-Fi in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
Specifications
Hardware Features

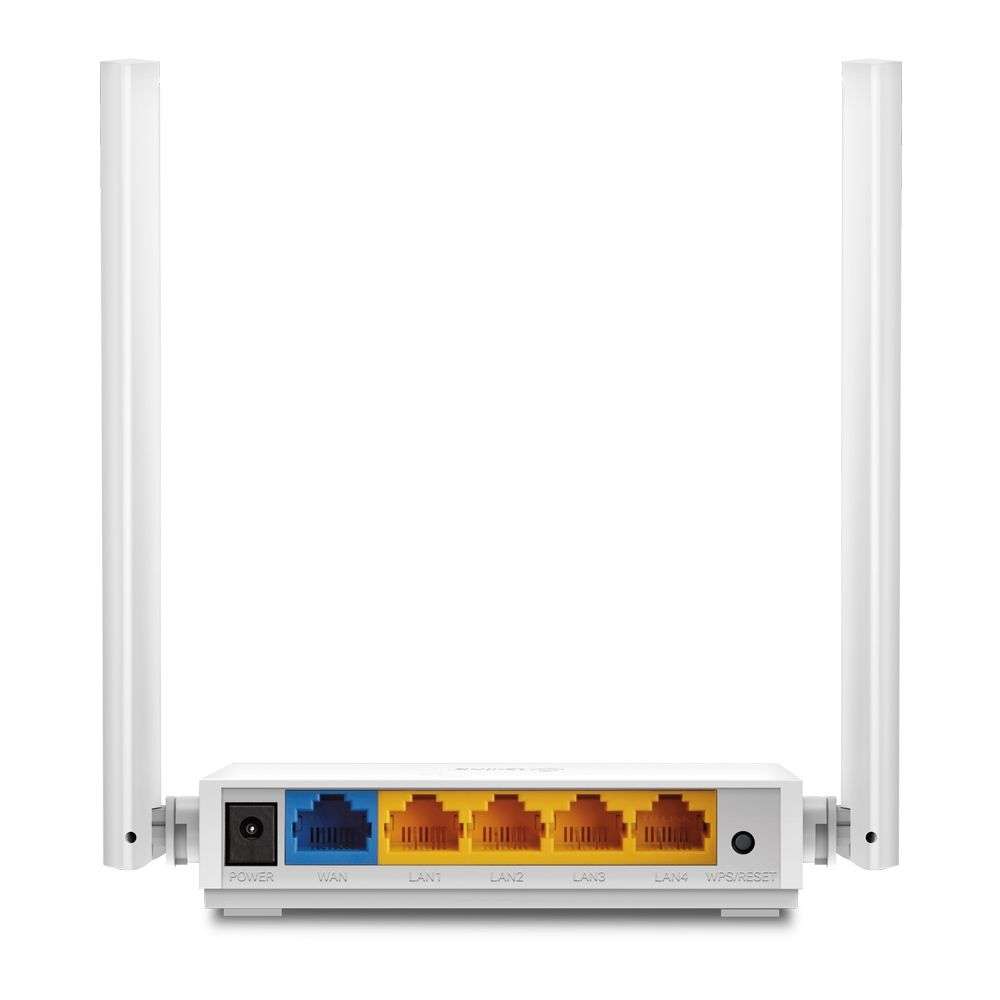

Ports : 4× 10/100 Mbps LAN Ports, 1× 10/100 Mbps WAN Port
Button : WPS/Reset Button
External Power Supply : 5VDC / 0.6A
Dimensions ( W x D x H ) : 4.5 x 4.2 x 1.0 in (115 x 106.7 x 24.3 mm)
Antenna : 2× 5dBi Omni-Directional Antennas
Wireless Features
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 2.412~2.472 GHz
Signal Rate
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity :
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
Wireless Functions : Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security : WEP, WPA / WPA2, WPA / WPA2-PSK
Software Features
Quality of Service : WMM
WAN Type : Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access)
Management : Parental Controls, Access Control, Local Management, Remote Management
DHCP : DHCP Server, DHCP Client List, Address Reservation
Dynamic DNS : DynDns, NO-IP
Firewall Security : SPI Firewall, IP and MAC Address Binding
Protocols : IPv4, IPv6
Guest Network : 2.4 GHz Guest Network
Working Modes : Wireless Router, Range Extender, Access Point, WISP
Others
Certification : CE, RoHS
System Requirements :
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment :
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
Wireless Router TL-WR844N
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
