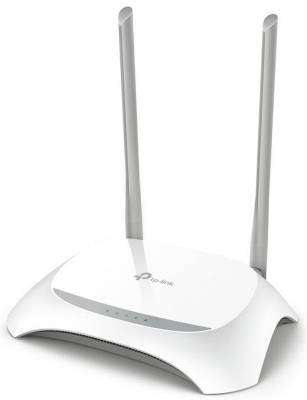

TP-Link TL-WR850N | 300Mbps Wireless N ISP Router (EN020-F5)
Ideal and Preconfigured for ISPs
Supports Aginet Config:
Enable ISPs to customize default configurations according to their requirements, it solves the ISP's problem when end users reset the device.
FEATURES:
SPECIFICATIONS:
HARDWARE FEATURES | |
Interface | 4 10/100Mbps LAN PORTS |
1 10/100Mbps WAN PORT | |
Button | WPS/RESET Button |
External Power Supply | 9VDC 0.6A |
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions (W D H) | 182 128 35mm |
Antenna | 2 Fixed Omni Directional Antennas |
Flash | 4MB |
DRAM | 32MB |
Chipset | MT7628NN |
575MHz | |
WIRELESS FEATURES | |
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps (dynamic) |
11g: Up to 54Mbps (dynamic) | |
11b: Up to 11Mbps (dynamic) | |
Transmit Power | CE: |
<20dBm | |
FCC: | |
<30dBm | |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
Quality of Service | WMM, Bandwidth Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management | Access Control |
Local Management | |
Remote Management | |
Aginet Config (Optional) | |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server,Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall |
IP Address Filter/MAC Address Filter/Domain Filter | |
IP and MAC Address Binding | |
Protocols | Support IPv4 and IPv6 |
Guest Network | 1 2.4GHz Guest Network |
OTHERS | |
Certification | CE, RoHS |
Package Contents | TL-WR850N Wireless N Router (EN020-F5) |
Power supply unit | |
Ethernet Cable | |
Quick Installation Guide | |
System Requirements | Windows 2000/XP/Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system |
Environment | Operating Temperature: 0C~40C |
Storage Temperature: -40C~60C | |
Operating Humidity: 10%90% non-condensing | |
Storage Humidity: 5%90% non-condensing |
