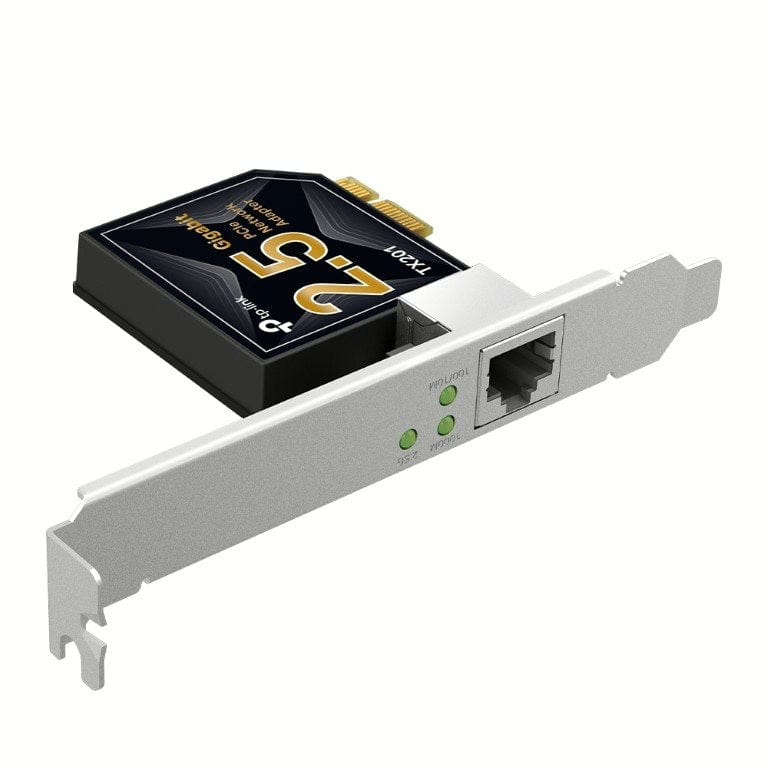

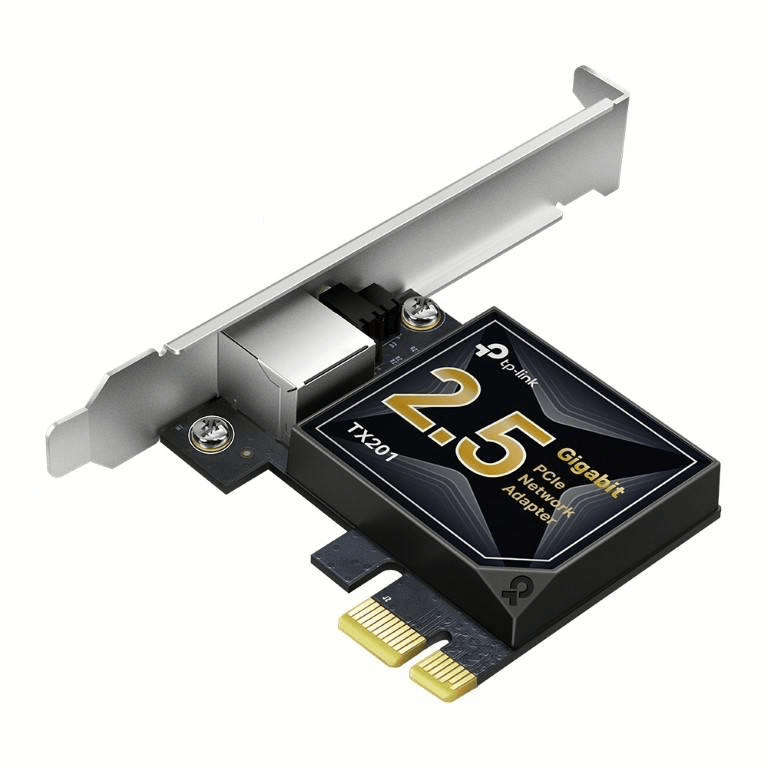

TP-Link TX201 1-port 2.5GbE PCIe Network Interface Card
All in Seconds with Blazing Fast 2.5G Speeds
Features
- Blazing Speed: 2.5 Gigabit Ethernet unlock the highest performance of your Multi-Gig bandwidth and devices. Whether local data transfer or Internet access, the TX201 is up to the task.
- Versatile Compatibility: With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
- Low-Profile and Full-Height Brackets: In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
- Comprehensive System Support: Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.
Household Storage, Share in Seconds
For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
2.5G Extremely Fast Internet Response
With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
- Lag-Free Gaming
- 4K Streaming
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management.
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Technical Specification
Product: TP-Link TX201 PCIe Network Interface Card
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface: 1x PCI Express 2.1
Ports: 1x RJ45 Gigabit/Megabit Port
Network Media: 2.5GBASE-T/1000BASE-T/100BASE-TX
Data Rates
10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,
20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions: 120.8 x 98.2 x 21.5 mm
Flow Control: 802.3x
Package Contents
- 2.5 Gigabit PCIe Network Adapter (TX201)
- Standard/Low-Profile Brackets
- Quick Installation Guide
- Resource CD
