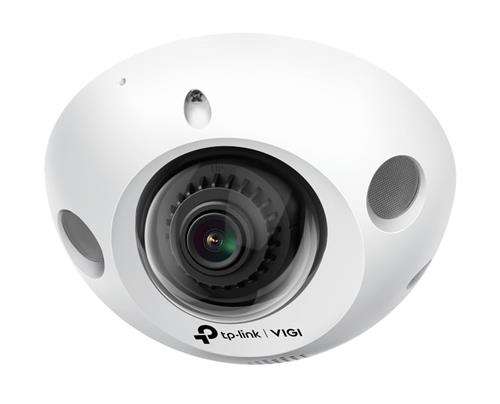

TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera - Maximum Resolution 2304 x 1296 Progressive Scan CMOS, Image Sensor 1/2.8", Lens 2.8 mm (F1.6), Day/Night Switch Unified/Scheduled/Auto, Digital Noise Reduction 3D DNR, WDR DWDR, IR Working Distance 30m (2 IR LEDs, 850nm), Storage Temperature -40 to 60 deg C, Vandal Resistant IK08, Output Notification via Push, Dimensions 114 x 114 x 58 mm, Weight Net 0.23 kg, Gross 0.41 kg, Retail Box, 1 Year Warranty
The TP-Link VIGI C230I Mini packs a powerful 3MP punch in a compact design, ideal for wide-angle surveillance in tight spaces. Smart features like human/vehicle detection and night vision enhance security and keep you informed.
-Product code: VIGI-C230I MINI(2.8MM)
-Description: TP-Link VIGI C230I Mini 3MP 2.8mm IR Mini Dome Network Camera
-Image Sensor 1/2.8 Progressive Scan CMOS
-Lens 2.8 mm
-Day/Night Switch Unified/ Scheduled/ Auto
-Digital Noise Reduction 3D DNR
-WDR DWDR
-IR Working Distance 30m
-Shutter Speed 1/3 to 1/10000 s
-Aperture F1.6
-Lens Mount M12
-Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
-ONVIF Yes
-API ONVIF
-Operating Temperature -30-60 deg C
-Storage Temperature -40-60 deg C
-Quick Start Guide
-Mounting Accessories
-Mounting Template
-Dimensions( H X W X D ) 114 x 114 x 58 mm
-Net Weight 0.23 kg
-Gross Weight 0.41 kg
-Power Supply 12V DC plus or minus 5%, 5.5mm Coaxial Power Plug
-PoE (802.3af/at, class 0)
-Vandal Resistant IK08
-Protection IK08
-Power DC Power Port
-Output Notification Message Push
-Main Stream: H.265+/H.265/H.264+/H.264
-Sub-Stream: H.265/H.264
-Resolution: 704x576, 640x480, 352x288, 320x240
-Max. Resolution 3MP (2304 x 1296)
-Video Streaming 3 Main Streams
-Video Bit Rate 64 Kbps to 4 Mbps
-Audio Input Yes
-Audio Output Yes
-Audio Compression Yes
-Audio Sampling Rate 8KHz
-Environment Noise Filtering Yes
-Audio Bit Rate 64 Kbps(G.711 alaw)
-IR LED Quantity: 2
-Range: 30m
-Wavelength: 850nm
-DORI Distance 2.8mm ;
-Detect: 49 m (161 ft)
-Observe: 20 m (67 ft)
-Recognize: 10 m (32 ft)
-Identify: 5 m (16 ft)
-Range Pan: -30 deg to 30 deg
-Tilt: 0 deg to 85 deg
-Rotate: -15 deg to 15 deg
-Max. Resolution 2304 x 1296
