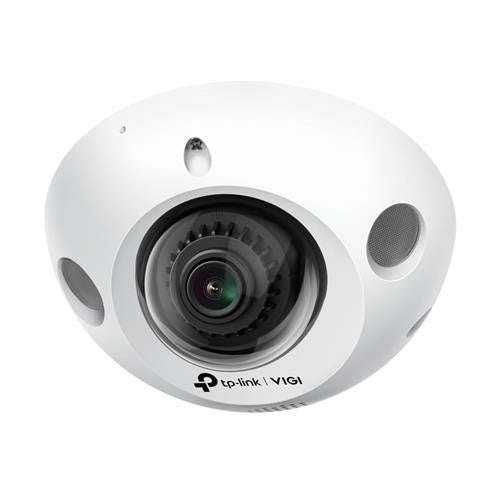

TP-Link VIGI C230I Mini 3MP 2.8mm IR Mini Dome Network Camera, Retail Box, 1 Year Warranty
The TP-Link VIGI C230I Mini packs a powerful 3MP punch in a compact design, ideal for wide-angle surveillance in tight spaces. Smart features like human/vehicle detection and night vision enhance security and keep you informed.
Product code: VIGI-C230I MINI(2.8MM)
Description: TP-Link VIGI C230I Mini 3MP 2.8mm IR Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Lens 2.8 mm
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
IR Working Distance 30m
Shutter Speed 1/3 to 1/10000 s
Aperture F1.6
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
ONVIF Yes
API ONVIF
Operating Temperature -3060 °C
Storage Temperature -4060 °C
Quick Start Guide
Mounting Accessories
Mounting Template
Dimensions( H X W X D ) 114 × 114 × 58 mm
Net Weight 0.23 kg
Gross Weight 0.41 kg
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal Resistant IK08
Protection IK08
Power DC Power Port
Output Notification Message Push
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
Video Streaming 3 Main Streams
Video Bit Rate 64 Kbps to 4 Mbps
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
DORI Distance 2.8mm ;
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
Range Pan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
Max. Resolution 2304 × 1296
