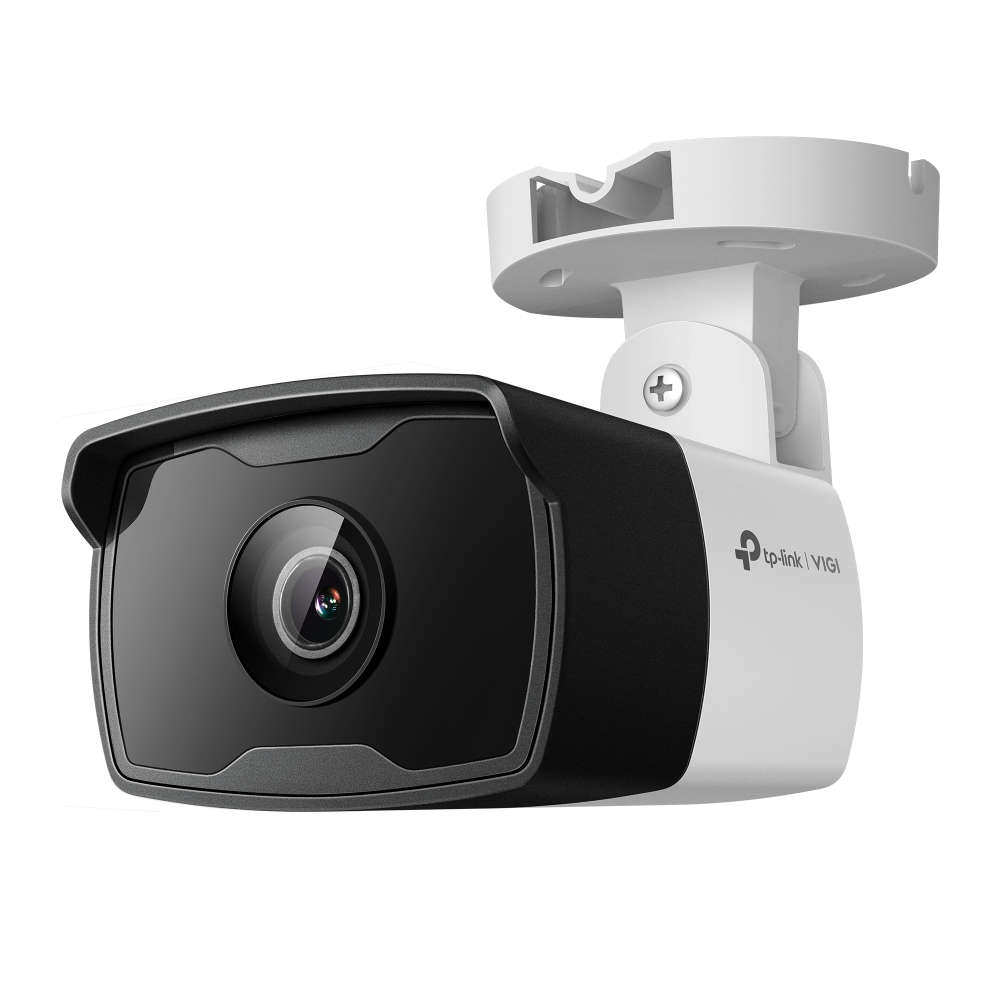

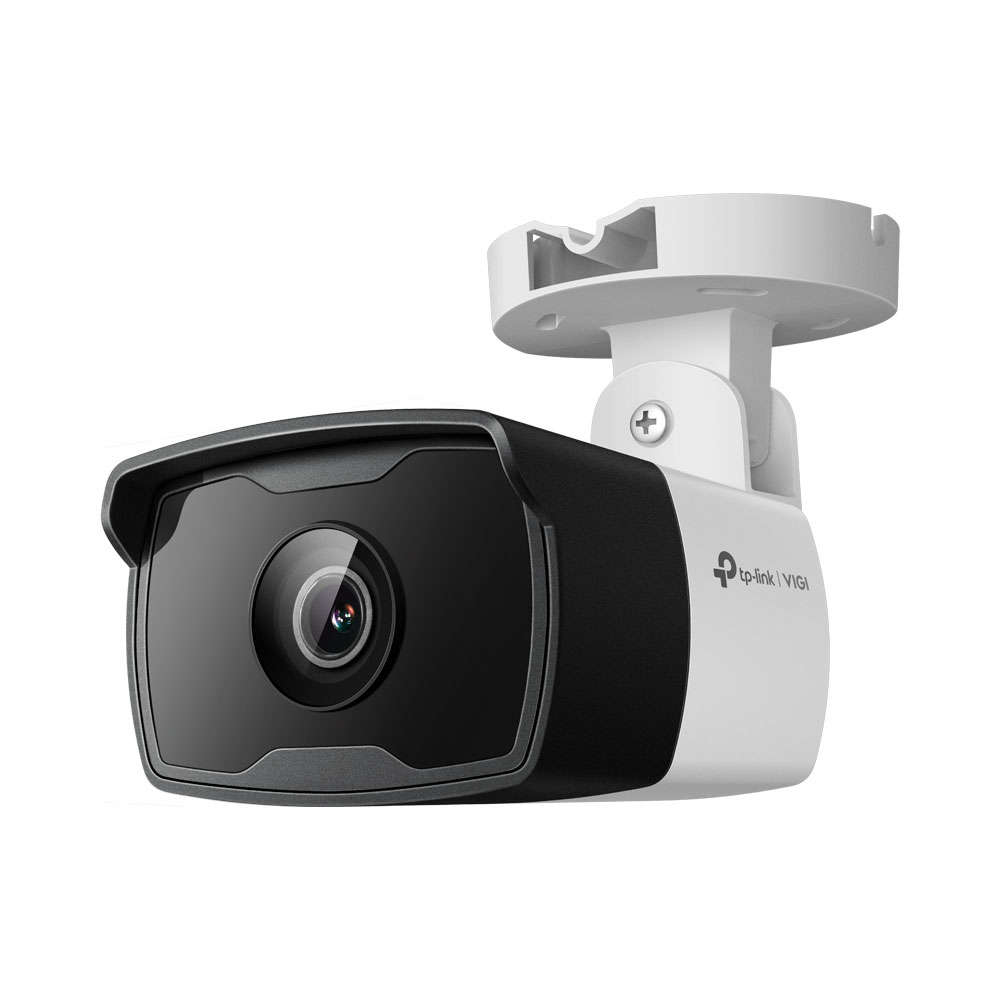

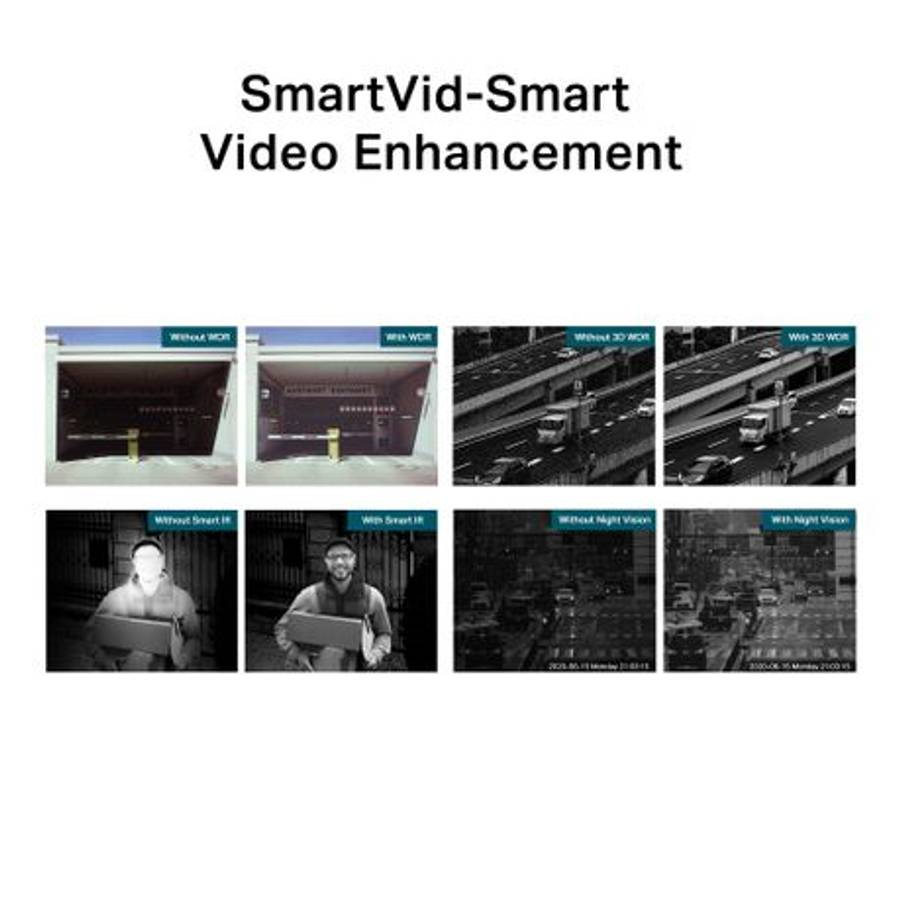

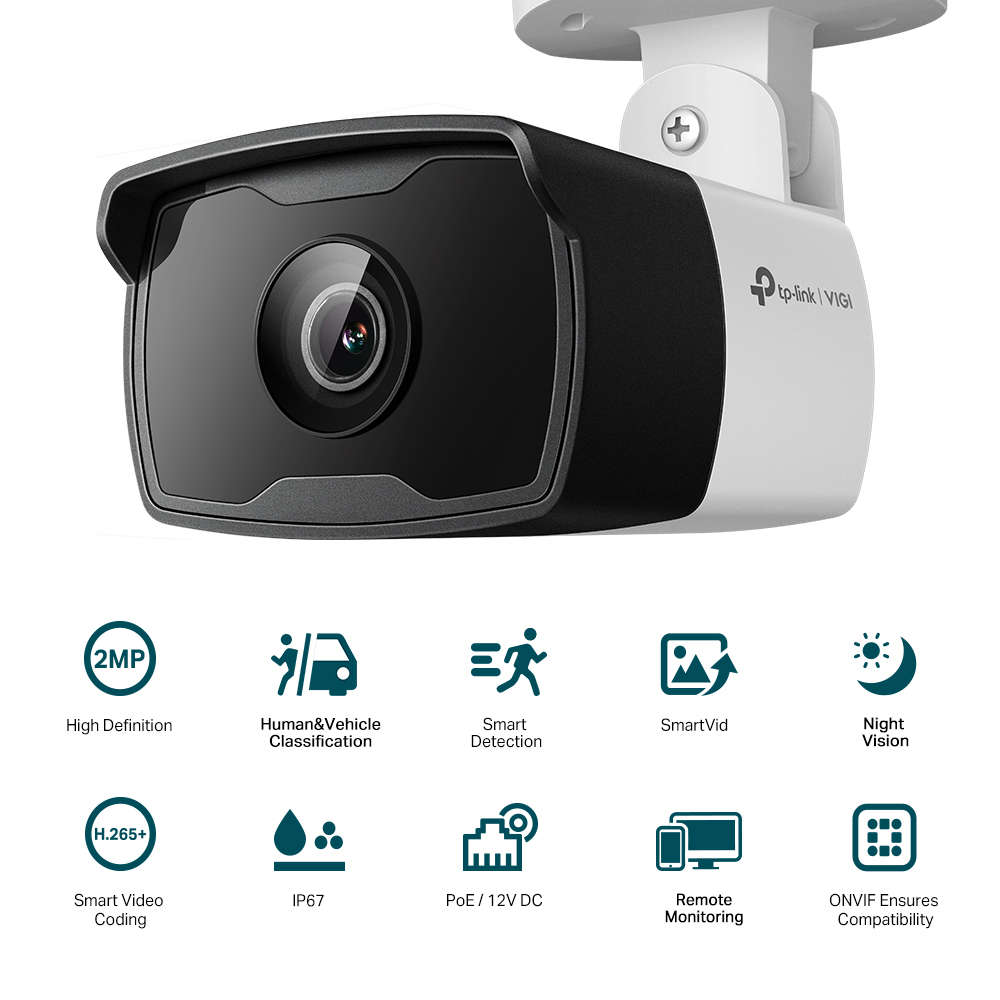

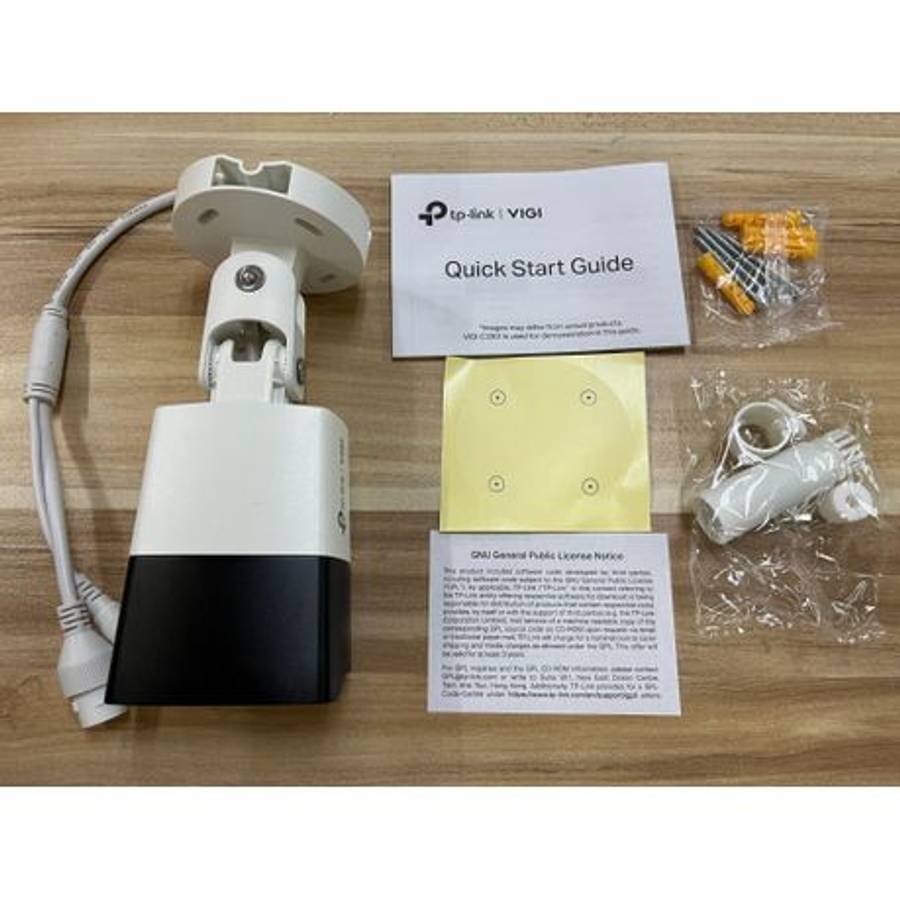

OverviewVIGI C3201(2.8mm)VIGI 2MP Outdoor IR Bullet Network Camera2MP Full-High Definition and IR Night VisionHuman & Vehicle ClassificationSmart DetectionSmart Video Enhancement TechnologyBuilt-In MicrophoneIP67 WaterproofH.265+ Compression TechnologySpecificationsCAMERAImage Sensor 1/3" Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination Color: 0.01 Lux; 0 Lux with IRDay/Night Mechanism IR Cut FilterDay/Night Switch Unified/ Scheduled/ AutoLENSType Fixed Focal LensFocal Length 2.8 mm/4 mm/6 mmAperture 2.8 mm: F2. 2 4 mm: F2.0 6 mm: F2.0FOV 2.8 mm:Horizontal FOV: 88.2 , Vertical FOV: 48.6 , Diagonal FOV: 106.5 4 mm:Horizontal FOV: 75.2 , Vertical FOV: 40.8 , Diagonal FOV: 88.3 6 mm:Horizontal FOV: 49.8 , Vertical FOV: 27.6 , Diagonal FOV: 57.7 Lens Mount M12DORI Distance 2.8 mm:Detect: 45 m (149 ft)Observe:19 m (62 ft)Recognize: 9 m (30 ft)Identify: 5 m (15 ft) 4 mm:Detect: 60 m (198 ft)Observe: 25 m (83 ft)Recognize: 12 m (40 ft)Identify: 6 m (20 ft) 6 mm:Detect: 91 m (297 ft)Observe: 38 m (124 ft)Recognize: 18 m (59 ft)Identify: 9 m (30 ft)Angle Adjustment (Manual)Range Pan: 0 to 360 Tilt: 0 to 90 Rotation: 0 to 360 ILLUMINATORIR LED Quantity: 2 Range: 50m Wavelength: 850nmWhite LED N/AIlluminator On/Off Control Auto/Scheduled/Always on/Always offVIDEOMax. Resolution 1920 × 1080Main Stream Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution:1920x1080, 1280x960, 1280x720Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.Sub-Stream Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution:704x576, 640x480, 352x288, 320x240Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.Bit Rate Control CBR, VBRVideo Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264H.264 Type High ProfileH.264+ Main Stream SupportedH.265 Type Main ProfileH.265+ Main Stream SupportedVideo Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 KbpsImageImage Settings Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Adjustable by Client Software Rotation(90 /270 )Image Enhancement BLC/3D DNR/HLC/SmartIRWide Dynamic Range DWDRSNR 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesAUDIOAudio Communication N/AAudio Input Yes (Built-in Microphone)Audio Output N/AAudio Compression YesAudio Sampling Rate 8KHzEnvironment Noise Filtering YesAudio Bit Rate 64 Kbps(G.711 alaw)NETWORKProtocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMPONVIF YesAPI Open Network Video Interface (Profile S/T)Simultaneous Live View 3 Main Streams & 3 Sub-StreamsClient VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC ClientWeb Browser Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and aboveCloud YesSecurity Password Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationALARM AND EVENT MANAGEMENTSmart Event Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle DetectionBasic Event Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login)Alarm Linkage Message PushINTERFACESNetwork Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarm N/AReset Button N/APower N/AOn-board Storage N/ABuilt-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the CameraBuilt-in Speaker N/AAudio N/AGENERALOperating Temperature -30 C to 60 C (-22 F to 140 F)Storage Temperature -40 C to 60 C (-40 F to 140 F)Operating Humidity 95% or Less (Non-Condensing)Storage Humidity 95% or Less (Non-Condensing)Material PlasticNet Weight 0.28 KgGross Weight 0.43 KgPower Supply PoE: 802.3af/at, class 0, Max. 5.5 WProtection IP67 WaterproofProduct Dimensions (L x W x H) 3.1 × 7.4 × 2.9 in (78.50 × 188.03 × 71.55 mm)Certifications CE, NTRA, VCCI, BSMIWhat's in the box1 x VIGI Network Camera1 x Set of Waterproof Cable Attachments1 x Set of Mounting Accessories1 x Quick Start Guide
