C330I-6
- 3MP Super-High Definition: The VIGI C330I camera comes with 3MP - more than enough pixels to pick up some of the more discrete details.
- Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Waterproof: Reliable IP67 for stable outdoor performance.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C330I comes with three different lens types to better suit your security needs.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Security Never Shuts Down

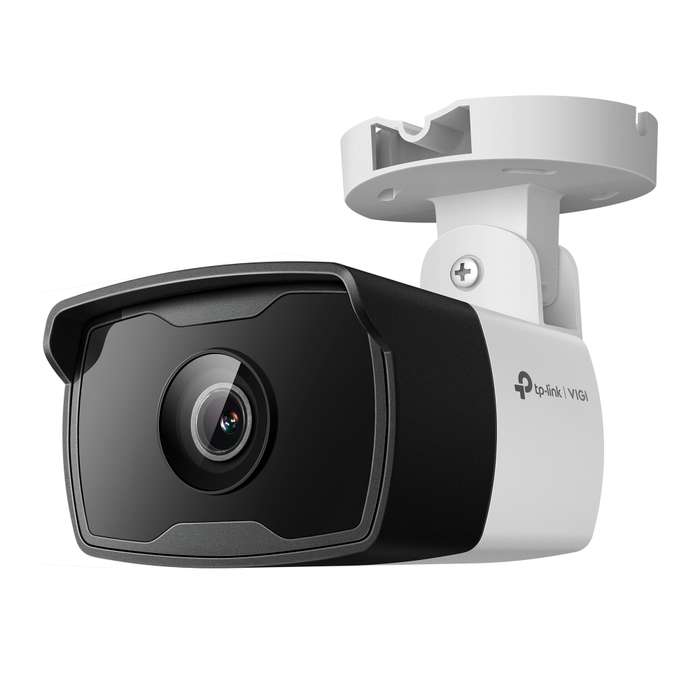

3MP Outdoor IR Bullet Network Camera
VIGI C330I (6mm Lens)
Features:
Looking for a higher resolution? It's right here. 3MP Super-High Definition:
- The VIGI C330I camera comes with 3MP - more than enough pixels to pick up some of the more discrete details.
Human and Vehicle Classification:
- Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection:
- Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
a) Motion Detection
b) Line-Crossing
c) Intrusion Detection
d) Object Abandoned Detection
e) Object Removal Detection
f) Camera Tampering
Never miss a detail: SmartVid-Smart Video Enhancement:
- VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality:
- Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
(Calculations based on laboratory testing using a 3MP VIGI camera, and actual performance may vary according to the amount of activity recorded, resolution, and other variables.)
IP67 for Better Protection:
- Capable of withstanding temperatures from -30 degrees Celsius - 60 degrees Celsius, VIGI performs well even in harsh environments with rain and dust.
Discover the best way to power your camera. PoE/12V DC
- Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security. 2.8/4/6 mm lens
- Whether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C330I comes with three different lens versions to better suit your security needs.
Flexible Installation Gives You More Convenience:
- Find the perfect vantage point by simply securing your camera to the ceiling, wall, or pole.
Flexible Management:
- Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
One system. Full security. Run your business with peace of mind:
- The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Specifications:
CAMERA
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Lens: 6mm
- Aperture (6-mm): F2.0
- Lens Mount: M12
- Viewing Angle (6mm): 51.9 degree / 28.7 degree / 60 degree (H/V/D)
- Day/Night Mechanism: IR Cut Filter
- IR Working Distance: 30m
- Minimum Illumination:
a) Color: 0.1 Lux
b) 0 Lux with IR
- Weatherproof Rating: IP67
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
NETWORK
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- API: ONVIF
- Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
GENERAL
- Operating Temperature: -30 Degree Celsius 60 Degree Celsius
- Certifications: CE/BSMI/VCCI/ONVIF
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Supply:
a) 12V DC +/- 5%, 5.5mm Coaxial Power Plug
b) PoE (802.3af/at, class 0)
- Power Consumption:
a) 12V DC: Max 5W
b) PoE: Class 0
VIDEO/IMAGE
- Video Compression:
1/ Main Stream: H.265+/H.265/H.264+/H.264
2/ Sub-Stream: H.265/H.264
- Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 704x576, 640x480, 352x288, 320x240
- Max. Resolution: 3MP (2304 × 1296)
- Video Streaming: Main Stream, Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90 degrees / 270 degrees)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Video Bit Rate: 64 Kbps to 4Mbps
- Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
- Smart Event: Human and Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
INTERFACES
- Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
- Button: -
- Video Output:
What's in the box
1 x VIGI C330I-6
1 x Quick Start Guide
1 x Waterproof Cable Attachments
1 x Mounting Accessories
