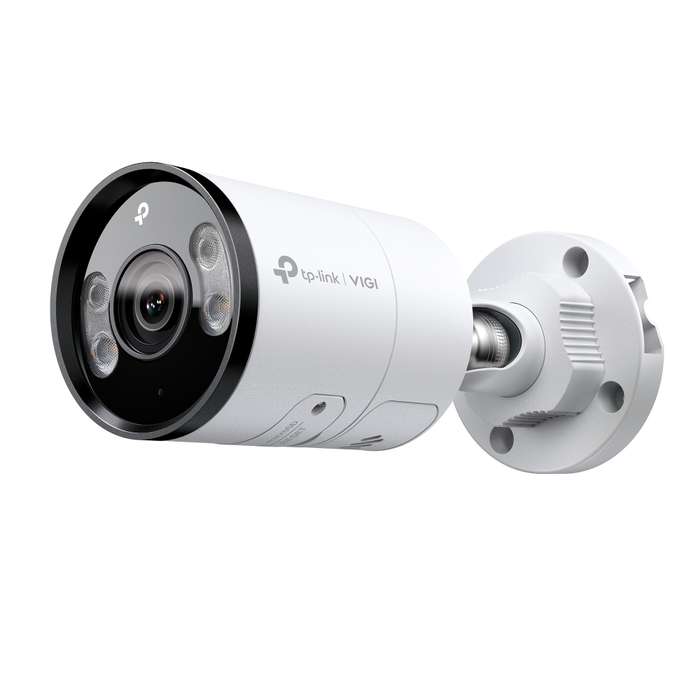

The TP-Link VIGI C355 is a state-of-the-art IP security camera designed for outdoor placement, ensuring robust surveillance capabilities for your property. This model features a bullet form factor and is finished in a sleek white color, making it both functional and aesthetically pleasing. With its wired connectivity technology, the VIGI C355 guarantees a stable and reliable connection, essential for continuous monitoring.
Equipped with a high-performance CMOS sensor, the VIGI C355 offers exceptional low-light performance with a minimum illumination of just 0.0005 lx. The camera boasts an impressive horizontal lens viewing angle of 88 and a vertical lens viewing angle of 46 , allowing for comprehensive coverage of your surroundings. With a detect distance of up to 80 m, an observe distance of 33 m, and a recognize distance of 16 m, this camera ensures that no detail goes unnoticed.
The TP-Link VIGI C355 stands out in its category due to its advanced surveillance capabilities, making it an ideal choice for both residential and commercial applications. This model is part of the renowned VIGI line, known for its reliability and high-quality performance. With its robust features and superior technology, the VIGI C355 is designed to meet the demands of modern security needs, providing peace of mind through effective monitoring.
Features:
5MP Super-High Definition and 24h Full-Color
People & Vehicle Analytics
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology
Specifications:
CAMERA
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch; Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 2.8/4/6 mm
Aperture: F1.6
FOV 2.8 mm:
Horizontal FOV: 111.4 , Vertical FOV: 58.8 , Diagonal FOV: 134
4 mm:
Horizontal FOV: 88 , Vertical FOV: 46 , Diagonal FOV: 105.4
6 mm:
Horizontal FOV: 57.3 , Vertical FOV: 31.3 , Diagonal FOV: 67.2
Lens Mount: M12xP 0.5
DORI Distance 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
6 mm
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range Pan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2880 X 1620
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720
Note:
If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note:
If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profilex
H.265+ Main Stream Supportedx
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR: 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
Smart Frame
People Detection
Vehicle Detection
Basic Event Motion Detection
Video Tampering Detection
Exception ( Illegal Login)
Scene Change Detection
Alarm Linkage Memory Card Video Recording
Message Push
Audible Warning
White Light Flashing
Linkage Method; N/A
Output Notification: Message Push
Deep Learning Function
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GBxx
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
GENERAL
Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material: Metal
Net Weight: 0.525 Kg
Power Supply: 12V DC 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.7 W
Protection: IP67
Product Dimensions (L x W x H): 74 × 184 × 74 mm
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
What's in the box
1 x VIGI C355 (4mm)
1 x Quick Start Guide
1 x Waterproof Accessories
1 x Mounting Accessories
...
