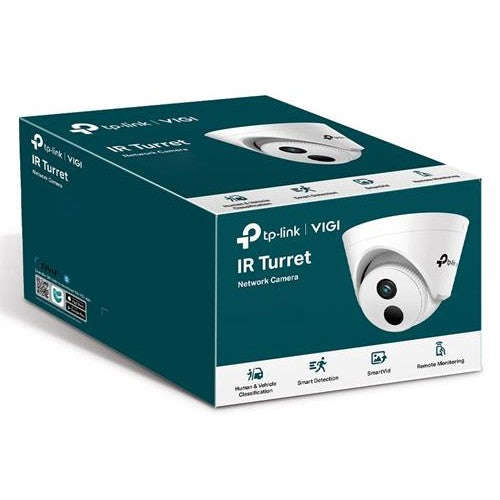

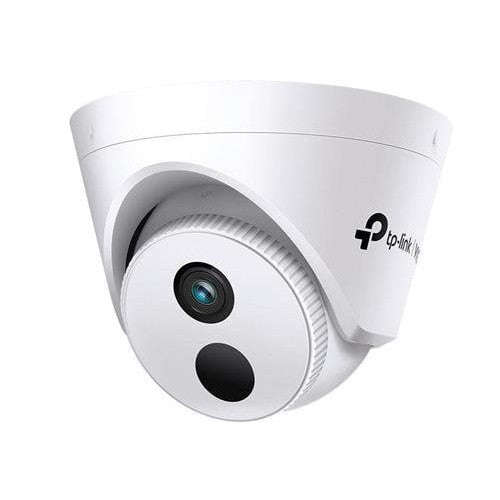

TP-Link VIGI C430I - 3MP 2.8mm IR Turret Network Camera, Retail Box, 1 Year Warranty

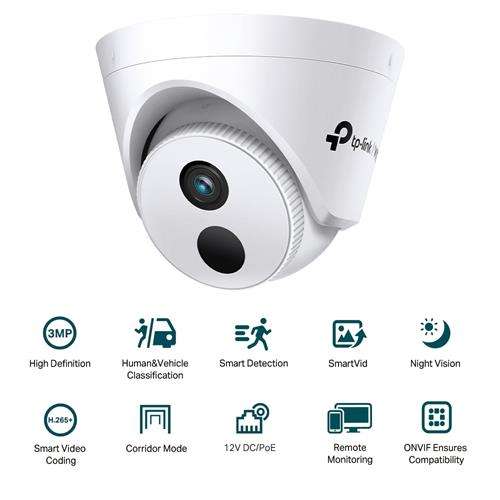

The TP-Link VIGI C430I captures sharp 3MP video with night vision for wide-area surveillance. Smart features like human/vehicle detection and corridor mode enhance monitoring and keep you informed of potential security events.
Specifications
Product code: VIGI-C430I(2.8MM)
Description: TP-Link VIGI C430I - 3MP 2.8mm IR Turret Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Aperture 2.8 mm: F2.2
4 mm: F2.0
Lens 2.8 mm
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
4mm: 82.5°/44.9°/99.3°(H/V/D)
Type Fixed Focal Lens
Focal Length 2.8mm
Aperture 2.8 mm: F2.2
4 mm: F2.0
FOV 2.8mm:
DORI Distance 2.8 mm
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
Detect: 65 m (214 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 7 m (21 ft)
Range Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LED Quantity: 1
Range: 30m
Wavelength: 850nm
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Image Parameters Switch Yes
Web Browser Google Chrome® 57 and above
Storage Temperature -4060 °C
Package Contents VIGI Network Camera
Dimensions ( H X W X D ) 123 × 123 × 83 mm
Net Weight 0.19 Kg
Gross Weight 0.34 Kg
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Product Dimensions (L x W x H) 123× 83× 123 mm
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Max. Resolution 3MP (2304 × 1296)
