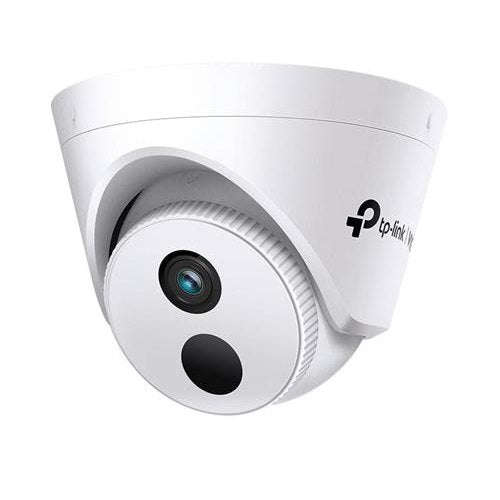

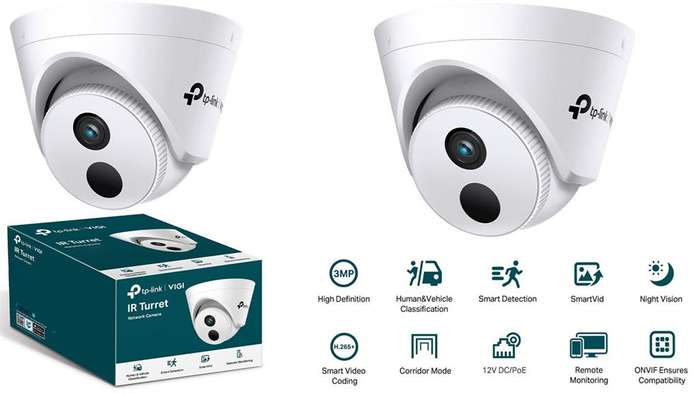

TP-Link VIGI C430I - 3MP 4mm IR Turret Network Camera, Retail Box, 1 Year Warranty
The TP-Link VIGI C430I captures sharp 3MP video with night vision for wide-area outdoor security. It offers two lens options (sold separately) for adapting to your specific needs, and smart features ensure you're alerted to potential security events.
Product code: VIGI-C430I(4MM)
Description: TP-Link VIGI C430I - 3MP 4mm IR Turret Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 2.8 mm: F2.2
4 mm: F2.0
Lens 2.8 mm/ 4 mm
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
4mm: 82.5°/44.9°/99.3°(H/V/D)
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
4 mm Detect: 65 m (214 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 7 m (21 ft)
Range Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Wide Dynamic Range WDR
SNR 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
Operating Temperature -3060 °C
Storage Temperature -4060 °C
Gross Weight 0.34 Kg
Power Consumption 12V DC: Max 5W
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Max. Resolution 3MP (2304 × 1296)
