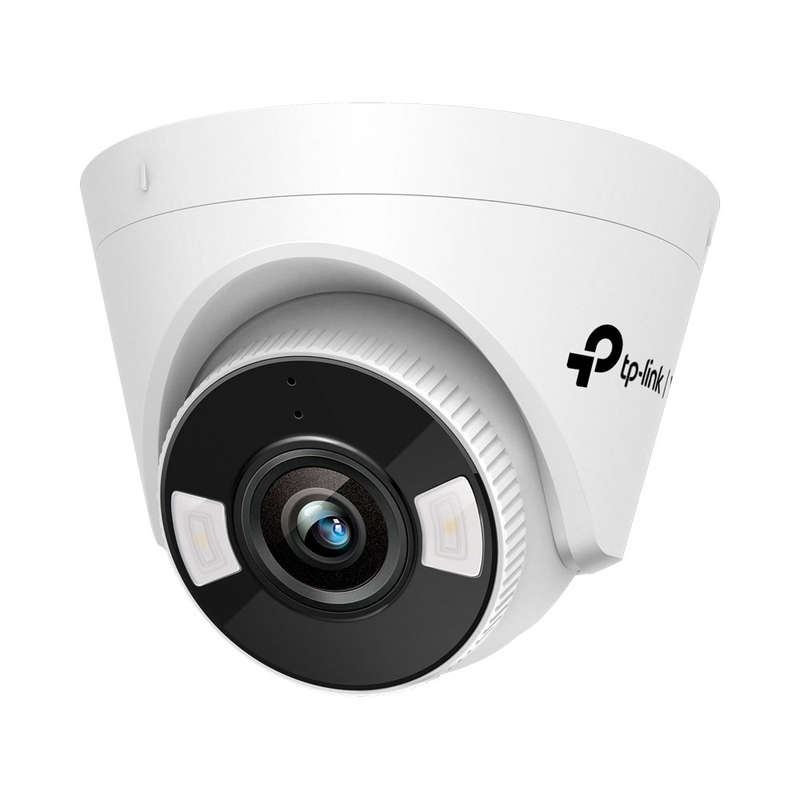

TP-Link VIGI 4MP Turret Full-Colour PoE IP Camera, H.265+
All The Colours, All The Time
Available in either 2.8mm or 4mm Fixed Focal Lens
FEATURES:
SPECIFICATIONS:
NETWORK | |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
GENERAL | |
Package Contents | VIGI Network Camera |
Quick Start Guide | |
Screws and Anchors | |
Mounting Template | |
Operating Temperature | -3060 °C |
Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
Dimensions( H X W X D ) | 123 × 123 × 84 mm |
Material | Plastic |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
PoE (802.3af/at, class 0) | |
CAMERA | |
Image Sensor | 1/3" Progressive Scan CMOS |
Lens | Fixed focal lens (2.8mm / 4mm) |
Aperture | 2.8mm: F1.6 |
4mm: F1.6 | |
Lens Mount | M12 |
Viewing Angle | (2.8mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122° |
(4mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93° | |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Illumination Distance | 30m (LED) |
Minimum Illumination | 0 lux with IR/white Light |
Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
Sub-Stream: H.265/H.264 | |
Frame Rate & Resolutions | Main Stream |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 | |
Sub-Stream | |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 640x480, 352x288, 320x240 | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
Sub-Stream: 64 Kbps to 512 Kbps | |
SMART FEATURE-SET | |
Smart Event | Area Intrusion Detection, Line-Crossing Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception (illegal login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
INTERFACES | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Audio Input | Built-in Microphone |
Audio Output | Built-in Speaker |
Button | Reset Button |
Slot | Micro SD card |
