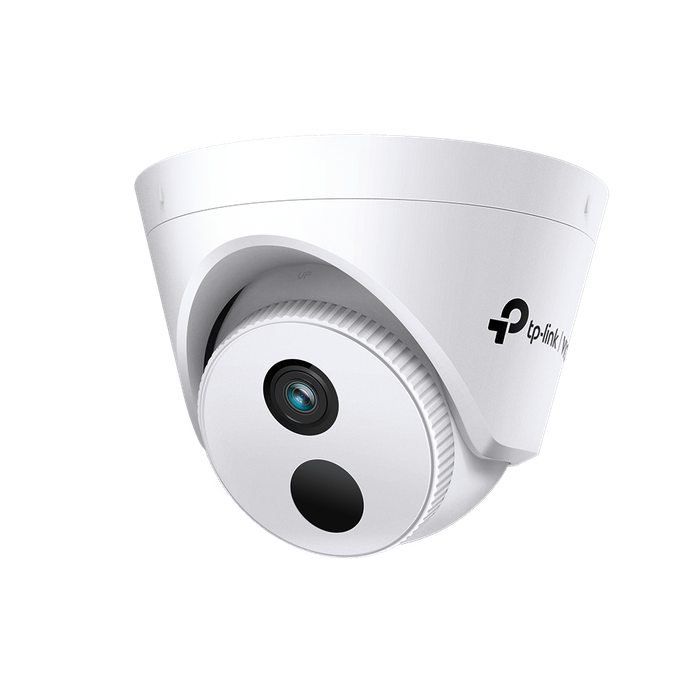

4MP Super-High Definition: The VIGI C440I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

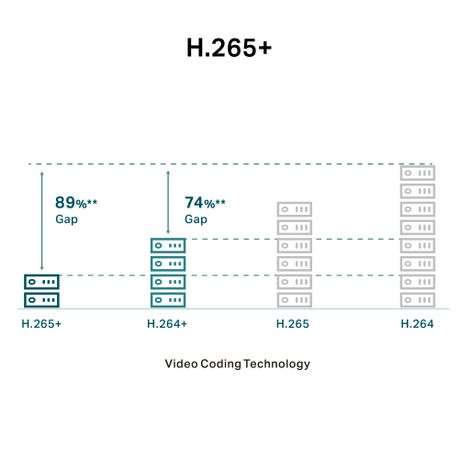

H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

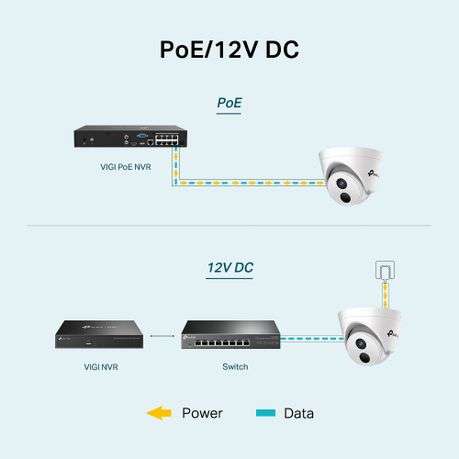

12V DC/PoE: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

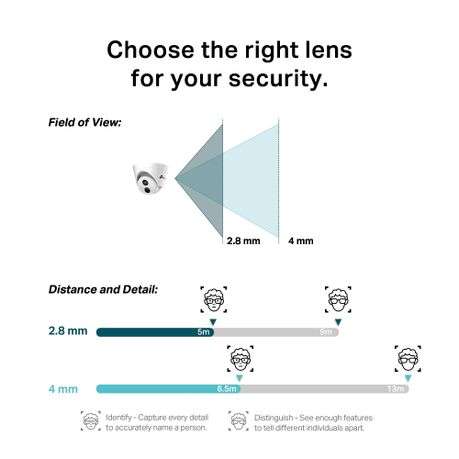

2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C440I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Image Sensor: 1/3" Progressive Scan CMOS
Lens: 2.8 mm/ 4 mm
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
IR Working Distance: 30m
Shutter Speed: 1/3 to 1/10000 s
Aperture: 2.8 mm: F2.2 4 mm: F2.2
Lens Mount: M12
Viewing Angle: 2.8mm: 88.8 /48.9 /106.5 (H/V/D) 4mm: 75.1 /41.5 /88.7 (H/V/D)
Slow Shutter: Yes
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: Yes
Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents: VIGI Network Camera Quick Start Guide Mounting Accessories
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply: 12V DC 5%, 5.5mm Coaxial Power Plug
PoE: (802.3af/at, class 0)
Certifications: CE/BSMI/VCCI/ONVIF
Operating Temperature: -30-60 C
Power: DC Power Port
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Message Push
Output Notification: Message Push
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution: 4MP (2560 × 1440)
Video Streaming: Main Stream Sub-Stream
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 /270 )
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Video Bit Rate: 64 Kbps to 4 Mbps
Day/Night Switch: Day/Night/Auto/Schedule
Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
IR LED: Quantity: 1 Range: 30m Wavelength: 850nm
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Type: Fixed Focal Lens
Focal Length: 2.8/4 mm
Aperture: 2.8 mm: F2.2 4 mm: F2.2
FOV: 2.8mm: Horizontal FOV: 88.8 , Vertical FOV: 48.9 , Diagonal FOV: 106.5 4mm: Horizontal FOV: 75.1 , Vertical FOV: 41.5 , Diagonal FOV: 88.7
Lens Mount M12
DORI Distance: 2.8 mm Detect:60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft) 4 mm Detect: 80 m (262 ft) Observe:33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Max. Resolution 2560 × 1440
Main Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Sub-Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90 /270 )
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range WDR
SNR 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting: Yes, up to 8 OSDs
What's in the box
1 x VIGI Network Camera
