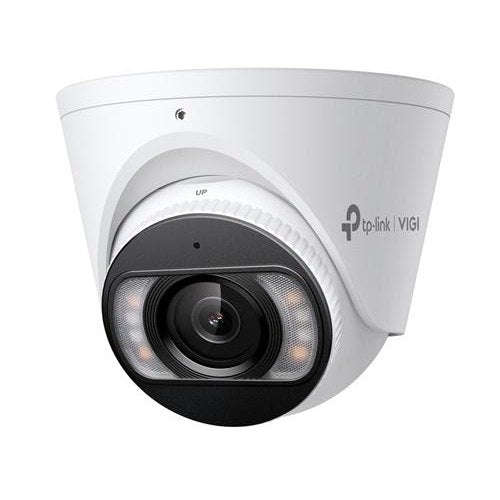

TP-Link VIGI C485 VIGI 8MP 2.8mm Full-Color Turret Network Camera, Retail Box, 1 Year Warranty
The TP-Link VIGI C485 captures high-quality 8MP video with 24/7 color night vision. Smart features like human/vehicle detection and two-way audio enhance security monitoring.
Product code: VIGI-C485(2.8MM)
Description: TP-Link VIGI C485 VIGI 8MP 2.8mm Full-Color Turret Network Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Type Fixed Focal Lens
Focal Length 2.8/4 mm
Aperture F1.6
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
4 mm:Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
M12*P 0.5
DORI Distance
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Range: 30m
Wavelength: 850nm
White LED Quantity: 4
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3840 X 2160
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution:704x576,640x480, 352x288, 320x240
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile*
H.265+ Main Stream Supported*
Wide Dynamic Range 120 dB
SNR 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
Cloud Yes
Reset Button Yes
Material Metal
Net Weight 0.48 Kg
Power Supply 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.5 W
