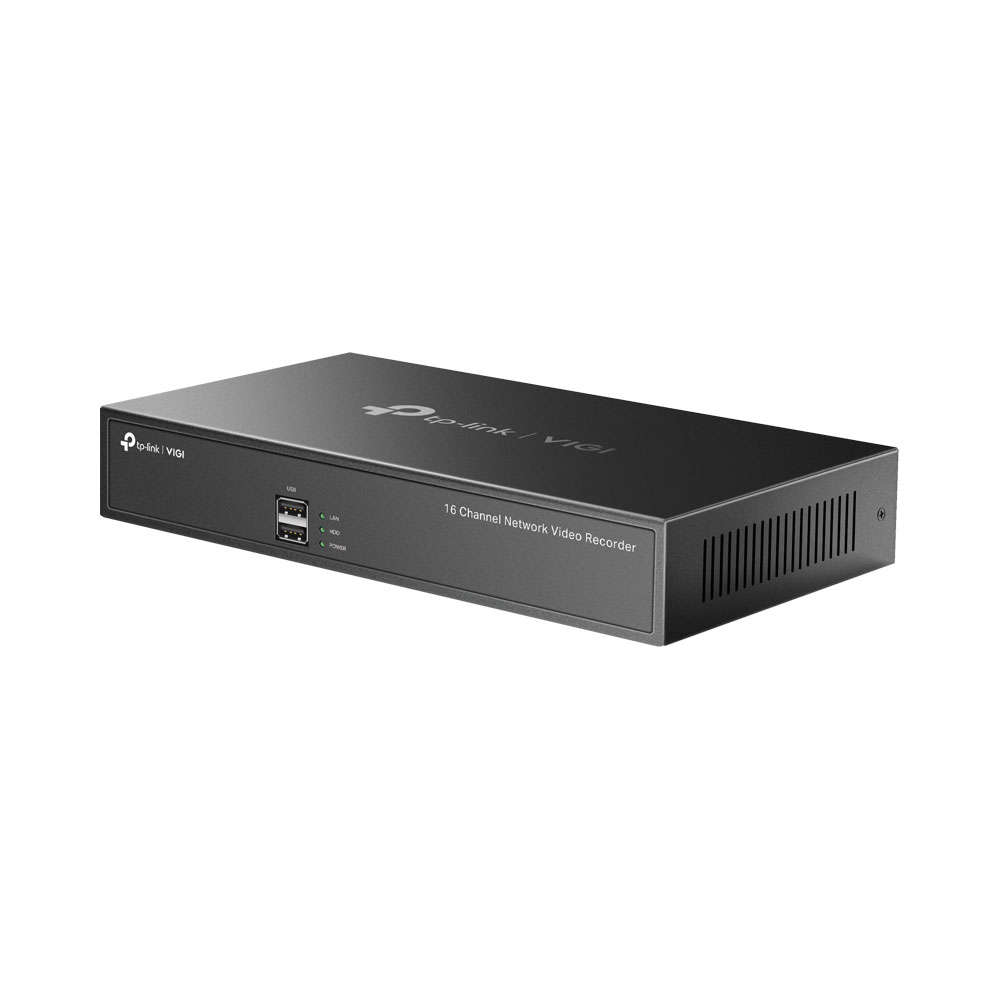

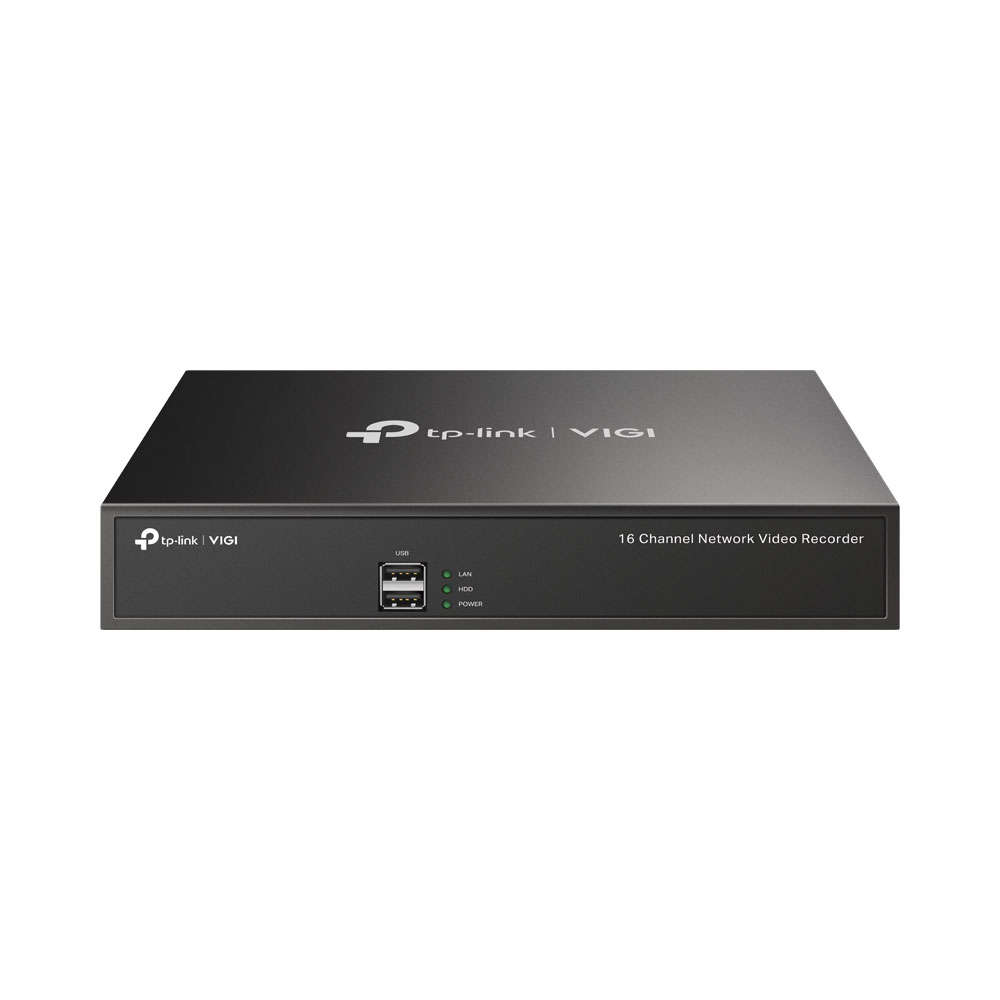

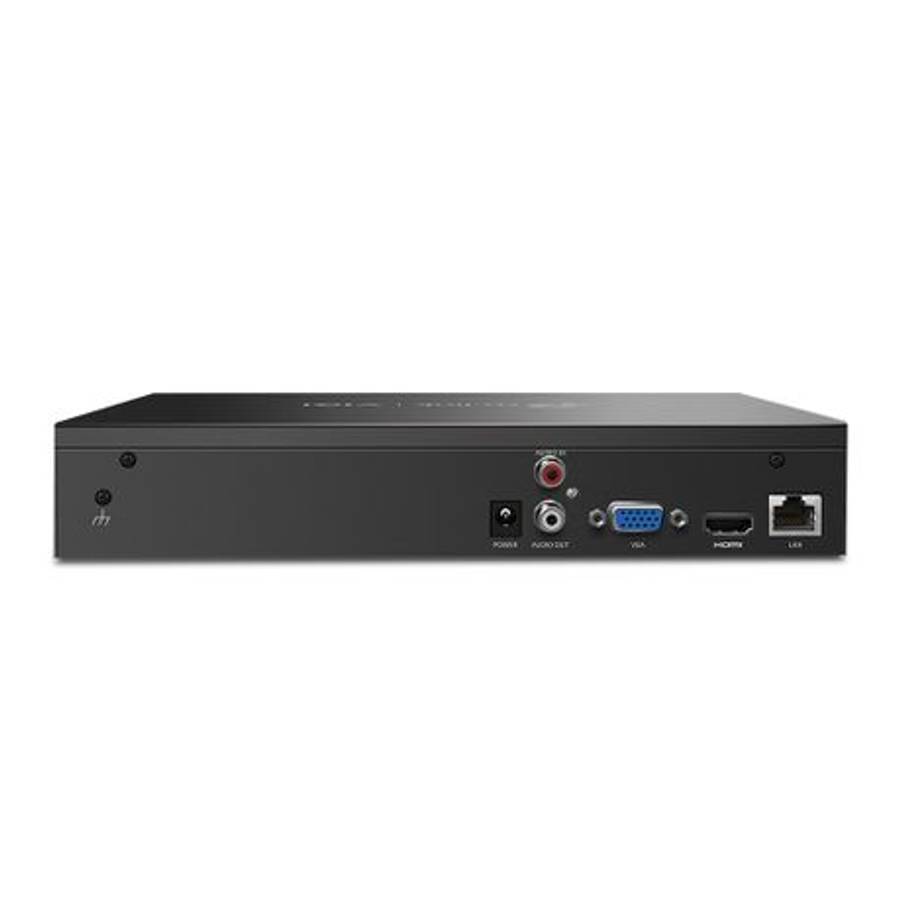

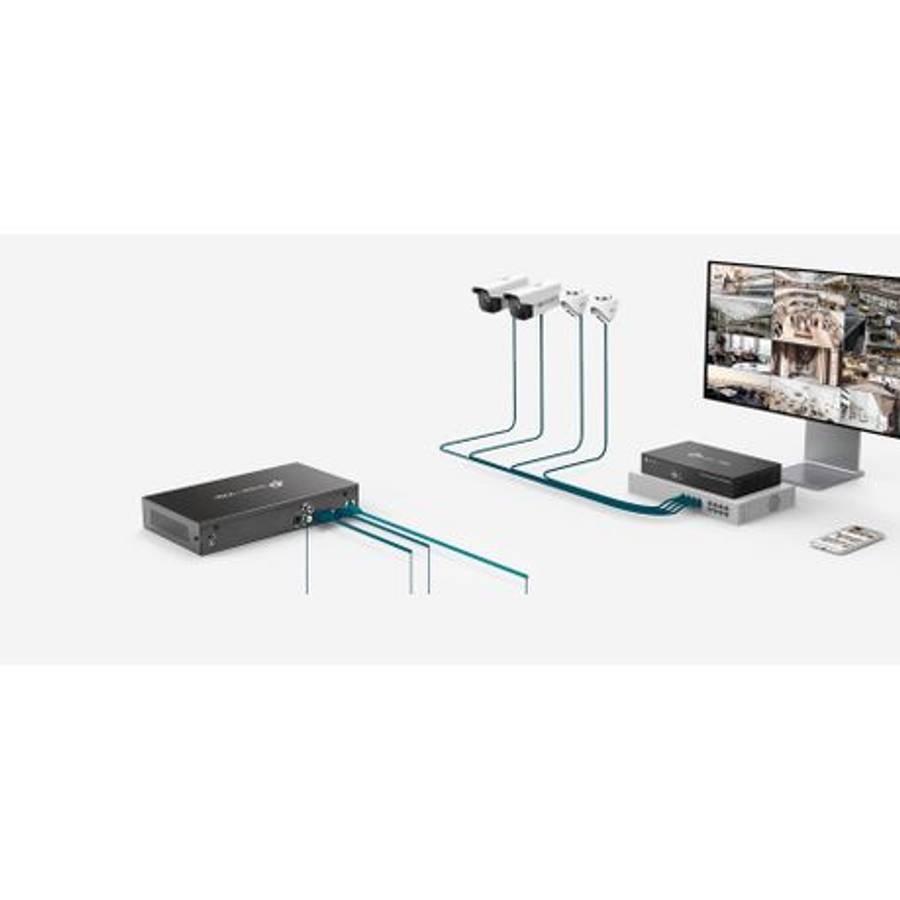

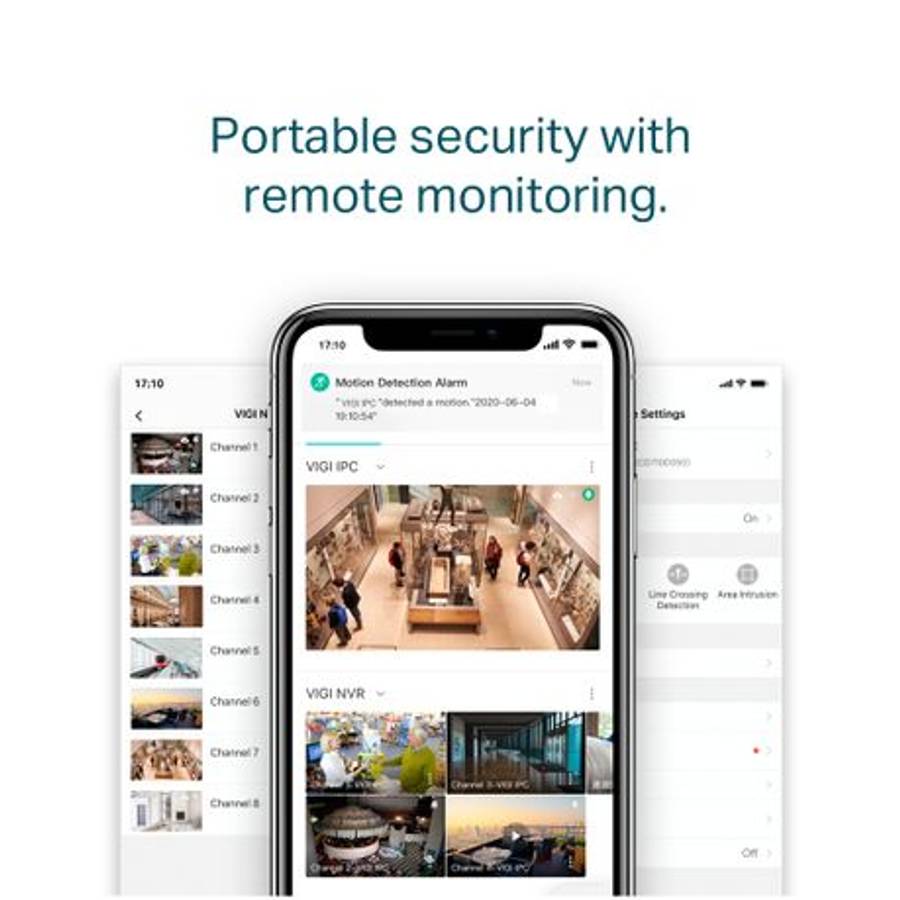

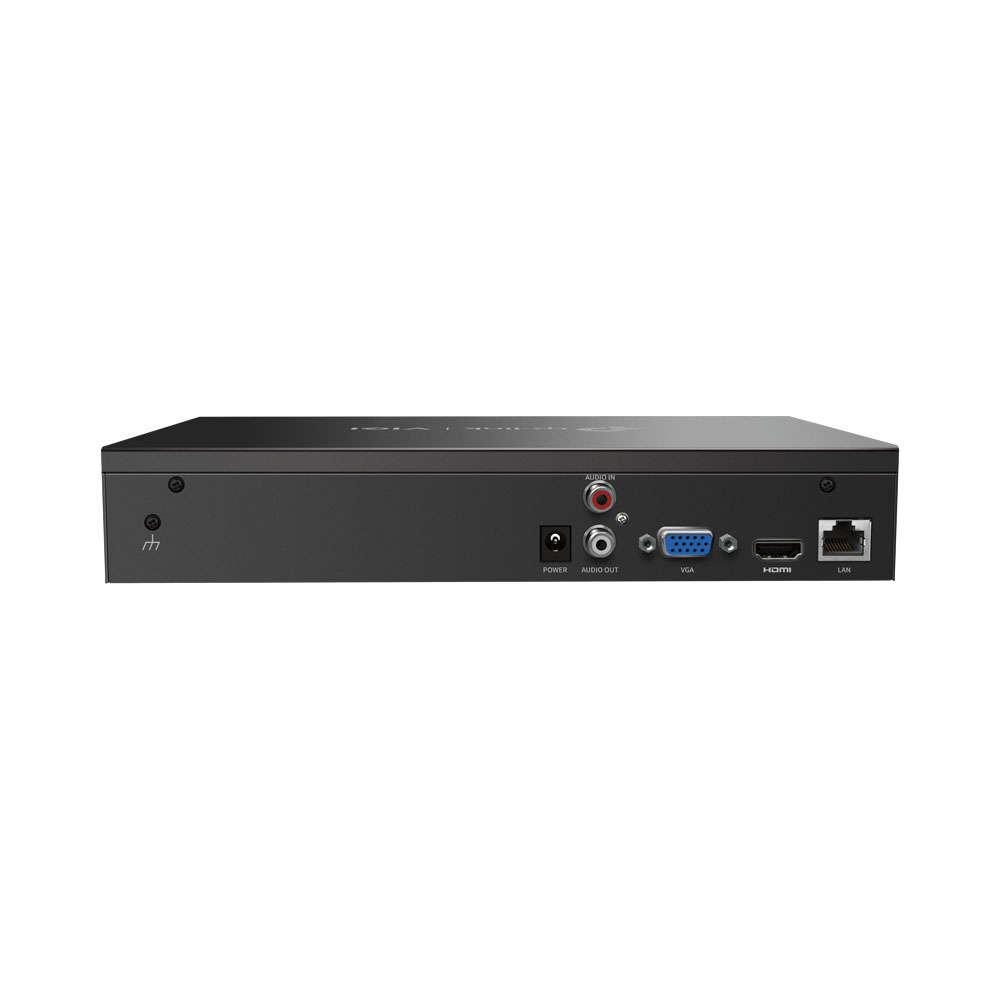

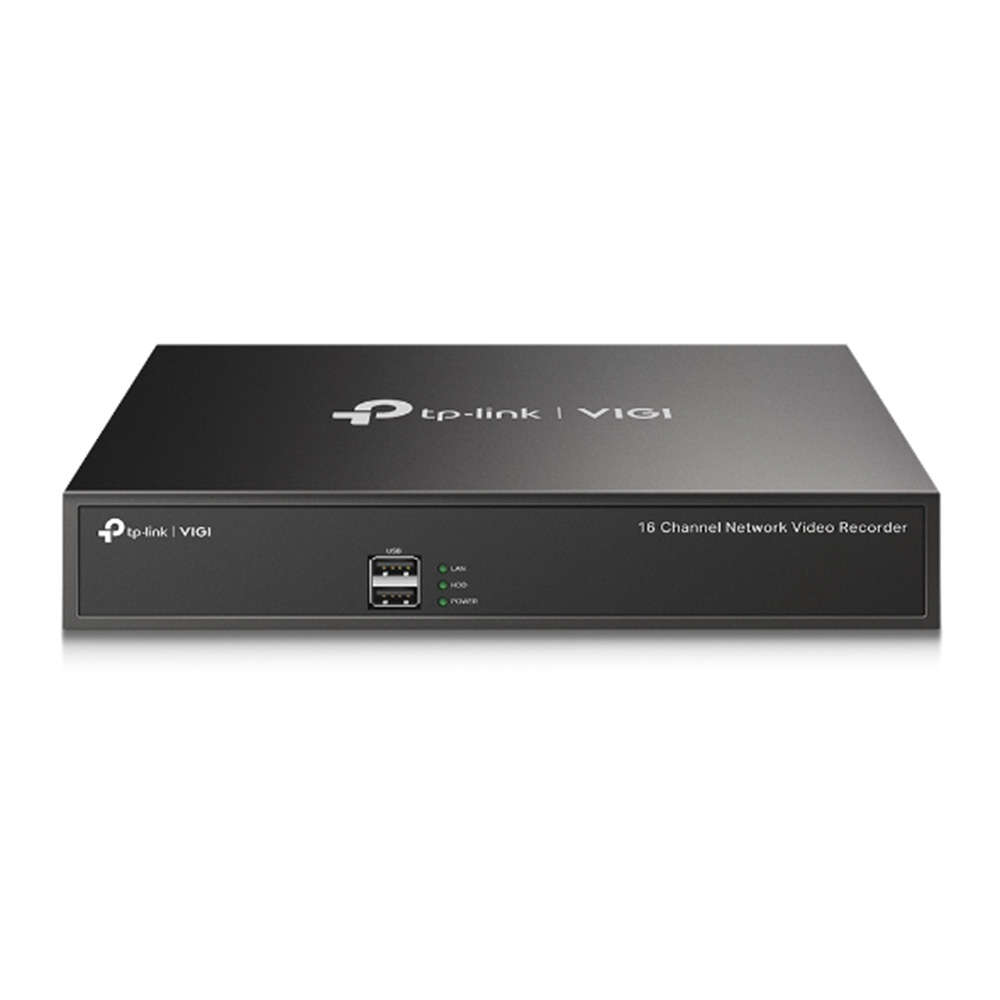

OverviewVIGI NVR1016HVIGI 16 Channel Network Video Recorder16-Channel Live View and 4K HDMI Video OutputUp to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability16-Channel Synchronous Playback80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth1× SATA Interfaces and 1 Up to 16 TBH.265+ Compression TechnologyHDMI and VGA Simultaneous OutputRemote MonitoringSpecificationsVideo and AudioIP Video Input 16-ChannelIncoming Bandwidth 80 MbpsOutgoing Bandwidth 60 MbpsHDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVideo Output Mode HDMI/VGA Simultaneous OutputMulti-View Display 1/4/6/8/9/16DECODINGAudio Compression G.711A/G.711U/G.726Video Compression H.265+/H.265/ H.264+/H.264Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous Playback 16-ChannelCapability 25fps:2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP 30fps:4-ch @ 3MP, 2-ch @ 5MPRecord ManagementRecord Mode Manual Recording Scheduling Recording Motion Detection RecordingPlayback Mode Instant Playback Regular Playback Tag Playback Event PlaybackBackup Mode Regular Backup Video Clip BackupPlayback Function Play Pause Stop Fast Forward Fast Backward Play By Frame Full Screen Video Clip Export Clip Digital Zoom Lock Recording Audio On/OffNETWORKProtocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMPMobile Phone Access Android, iOSWeb Browser Chrome (57+), Firefox (52+), Edge (91+)Interoperability ONVIF Profile S/T, CGIExternal InterfaceNetwork Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceUSB Interface 2× USB 2.0Audio Interface 1-ch RCA Input; 1-ch RCA OutputAlarm In/Out N/ASerial Interface N/APower 1× DC JackReset Button 1Speaker N/AeSATA N/AHDMI 1VGA 1HARD DISKSATA 1 SATA InterfaceCapacity Up to 16 TB Capacity for Each HDDAlarmGeneral Alarm Motion Detection Video Tampering Scene Change Detection Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Loitering Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Abnormal Sound Detection Smart FrameNote: The alarm function requires the use of a camera.Anomaly Alarm Video Loss Offline and IP Conflict Disk Exception Login ExceptionAlarm Linkage Recording White Light Alarm Buzzer Log Audible AlarmNote: The alarm function requires the use of a camera.GENERALStorage Temperature -40 to 70 C (-40 to 158 )Storage Humidity 10%~90% RH Non-CondensingWorking Temperature NVR: -10 to 55 C (14 to 131 Power Adapter: 0 to 40 C (32 to 104 )Working Humidity 10%~90% RH Non-CondensingDimensions( W X D X H ) 9.7 × 5.8 × 1.8 in (246.2 × 148.2 × 45 mm)External Power Supply DC 12V/1.5ANet Weight 0.61 KgGross Weight 1.12 KgMax. Power Consumption 4.25 W (Without Disk)Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCCUSB Interface 2× USB 2.0What's in the box1 x VIGI Network Video Recorder1 x Power Adapter1 x HDD Screws1 x Mouse1 x Quick Installation Guide
