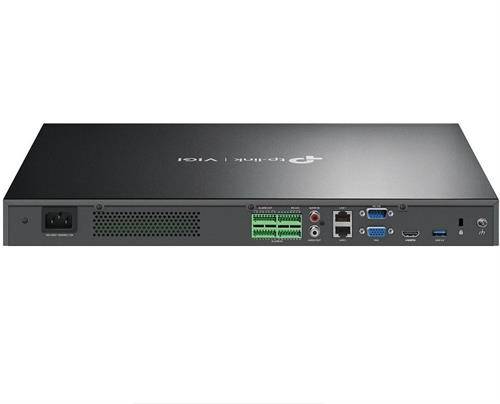

TP-Link VIGI NVR4032H 32-Channel Network Video Recorder

NVR4032H
- Face Recognition: Enhances access management and maximizes security.
- Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- 320Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
- Mass Storage: Supports 4 x SATA, up to 10TB each. (2)
- 16-ch@2MP/ 8-ch@4MP Decoding Capacity (1): Allows you to enjoy more channels, live view, and playback at the same time.
- 1 HDMI and 1 VGA Interface: Supports independent video output.
- 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Security Never Shuts Down.
VIGI 32 Channel Network Video Recorder
VIGI NVR4032H

Notes:
1/ Calculations based on laboratory testing using VIGI cameras.
2/ HDDs are not included.

Specifications
NETWORK
- Incoming Bandwith: 320Mbps
- Outgoing Bandwidth: 320Mbps
NETWORK MANAGEMENT
- Network Protocols: UPnP (Plug and Play), NTP (Network Timing)
- Interoperability: ONVIF, CGI
- Mobile Phone Access: Android, iOS
- Browser: Chrome (57+), Firefox (52+), Edge (91+)
GENERAL
- Working Temperature: -10 - 55 C
- Working Humidity: 10% ~ 90% RH Non-Condensing
- Power Supply: 100 - 240VAC, 50 to 60HZ, 1.5A
- Power Consumption:
a) 5W (Without Disk)
b) 48W (With Disk)
RECORD PLAYBACK
-Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
- Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
- Backup Mode: Regular Backup, Video Clip Backup
- Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
EXTERNAL INTERFACE
- Network Interface: 2 x RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
- USB Interface: USB Interface
- Audio Interface: 1 x Audio In; 1 x Audio Out
- Alarm In/Out: 16/4
- Serial Interface: 1 x RS232
ALARM
- General Alarm: Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
- Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm
VIDEO/IMAGE
- IP Video Input: 32-Channel
- Multi-View Display: 1/4/6/8/9/16/25/32/36
- Video Output Mode: HDMI/VGA Independent Output
- Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- HDMI Output Resolution:
a) 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output Resolution:
a) 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
DECODING
- Decoding Format: H.265+/H.265/ H.264+/H.264
- Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-Channel
- Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
HARD DISK
- SATA: 4 x SATA Interfaces
- Capacity: Up to 10TB Capacity for Each HDD

What's in the box
1 x NVR4032H VIGI Network Video Recorder
1 x Power Adapter
1 x HDDs Screws set
1 x Quick Installation Guide
