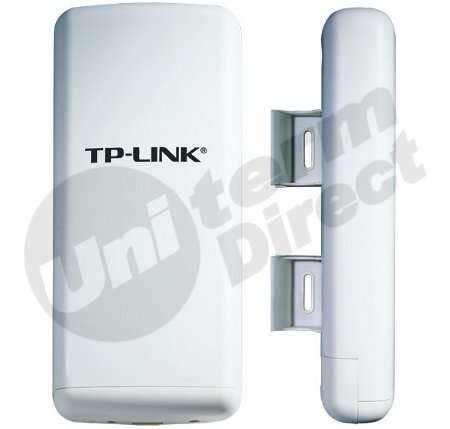

TP-Link WA5210G High Power Wireless Outdoor CPE

TP-Link 2.4GHz High Power Wireless Outdoor CPE

The TL-WA5210G 2.4GHz High Power Wireless Outdoor CPE is dedicated to WISP CPE solution and long distance wireless network solutions. It integrates the functions of a Wireless Access Point and WISP Client with high gain antenna and weatherproof enclosure. It features 12dBi high gain antenna, high output power and high RX sensitivity which can significantly extend the transmission range to deliver a more stable wireless connection. The TL-WA5210G provides three operation modes for multiple users to access the Internet: AP client router (WISP Mode), AP router and AP (Access Point/Client/WDS Bridge/Repeater.). The TL-WA5210G is easy-to-deploy, featuring passive power over Ethernet capability.

Product features:

• Outdoor weatherproof and lightning/ESD protection design
• 12dBi dual-polarized antenna easy to build up to 15km wireless link
• Passive Power over Ethernet for flexible deployment
• WISP Mode Supported
• High output transmission power and reception sensitivity optimized
• Support 15kV ESD Protection
• Supports AP Client Router, AP Router and AP operation mode
• Distance Adjustment for long range transmission, up to 50km
• Supports Antenna Alignment
• Supports Layer 2 User Isolation
• Provides throughput monitor indicating the current wireless throughput.
• Supports Ping Watch Dog
• Supports Wireless Speed Test
• Supports Remote Management.
• Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
• Provides external RP-SMA connector for higher gain antenna upgrade

Specifications:

Standards:                        IEEE 802.11g, IEEE 802.11b
Frequency Range:             2.4 - 2.4835 GHz
Wireless Transmit Power:  27 dBm (Max.)
Antenna:                          12dBi Dual Polarized
Beamwidth (HPBW):         Horizontal: 60°
Vertical:                           30°
Wireless Modes:
    * AP Router
    * AP Client Router (WISP Client)
    * AP/Client/WDS Bridge/Repeater

Wireless Security:
    * SSID Broadcast Enable/Disable
    * MAC Address Filter (ACL)
    * 64/128/152-bit WEP Encryption
    * WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

Interfaces:                       1x 10/100Mbps Auto-Sensing RJ45 port (Auto MCI/MDIX, PoE)
                                       1x Reverse SMA connector for external antenna
                                       Grounding terminal
ESD Protection:              15kV ESD protection
Operating Temperature: -30° - 70° C
Relative Humidity:          10% - 90% (non-condensing)
Dimensions:                    265 x 120 x 83 mm
