300Mbps Wireless N Speed
TL-WR820N
300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Compatible with IPv6 (Internet Protocol version 6)
Guest Network provides separate access for guests while securing the host network
Parental Controls manage when and how connected devices can access the internet
Security protocols protect your home network with firewalls and wireless encryption
Wi-Fi Ideal for Everyday Use
300Mbps Wireless N Speed
TL-WR820N
300Mbps Wireless N Speed - Fast Downloads
TL-WR820N is compatible with IEE 802.11b/g/n and provides a high-speed Wi-Fi. Enjoy speeds of up to 300 Mbps for even your most demanding home networking needs, such as HD streaming, online gaming, and downloading large files.
Strong Signal, Great Coverage

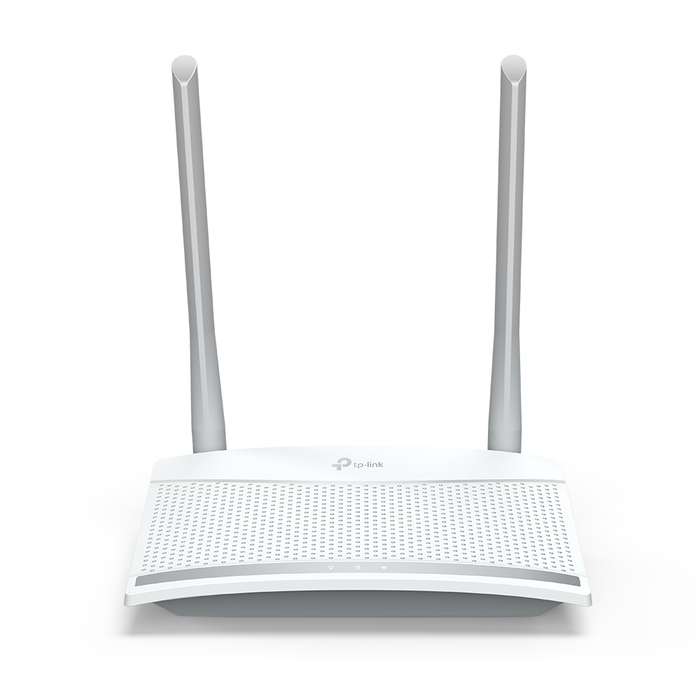

Two powerful 5dBi antennas and 2×2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.
Smooth Video Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.
Guest Network
The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network.
Premium Design
An ergonomic shape and sleek texture makes for a stylish addition to any room. A hole-punched top plate dissipates heat to ensure long-term functionality and stable operation.
IPv6 Compatible
Compatible with the most recent Internet Protocol version (IPv6) keeps your router future-proof and allows you to enjoy IPv6 services provided by your ISP and visit IPv6 websites.
Specifications
HARDWARE FEATURES
Ports : 2 x 10/100Mbps LAN Ports; 1 x 10/100Mbps WAN Port
Button : WPS/Reset Button
External Power Supply : 5VDC / 0.6A
Dimensions ( W x D x H ) : 6.1 x 4.5 x 1.4 in. (154 x 114 x 36mm)
Antenna : 2 x Fixed 5dBi Omni Directional Antennas
WIRELESS FEATURES
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 2.412~2.472GHz
Signal Rate :
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity :
270M: -70dBm@10% PER
130M: -72dBm@10% PER
108M: -74dBm@10% PER
54M: -75dBm@10% PER
11M: -94dBm@8% PER
6M: -95dBm@8% PER
1M: -96dBm@8% PER
Wireless Functions : Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security : WEP, WPA / WPA2, WPA / WPA2-PSK
SOFTWARE FEATURES
Quality of Service : WMM, Bandwidth Control
WAN Type : Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Management : Access Control, Local Management, Remote Management
DHCP : Server, DHCP Client List
Port Forwarding : Virtual Server, UPnP, DMZ
Dynamic DNS : DynDns, NO-IP
Access Control : Parental Controls, Local Management Control, Host list,Access Schedule, Rule Management
Firewall Security : SPI Firewall, IP and MAC Address Binding
Protocols : IPv4, IPv6
Guest Network : 2.4GHz Guest Network
Working Modes : Wireless Router
OTHERS
Certification : CE, RoHS
System Requirements :
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment :
Operating Temperature: 0?~40 ? (32 ? ~104 ?)
Storage Temperature: -40?~70 ? (-40? ~158 ?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
1 x 300Mbps Wi-Fi Router TL-WR820N
1 x Power Adapter
1 x RJ-45 Ethernet Cable
1 x Quick Installation Guide
