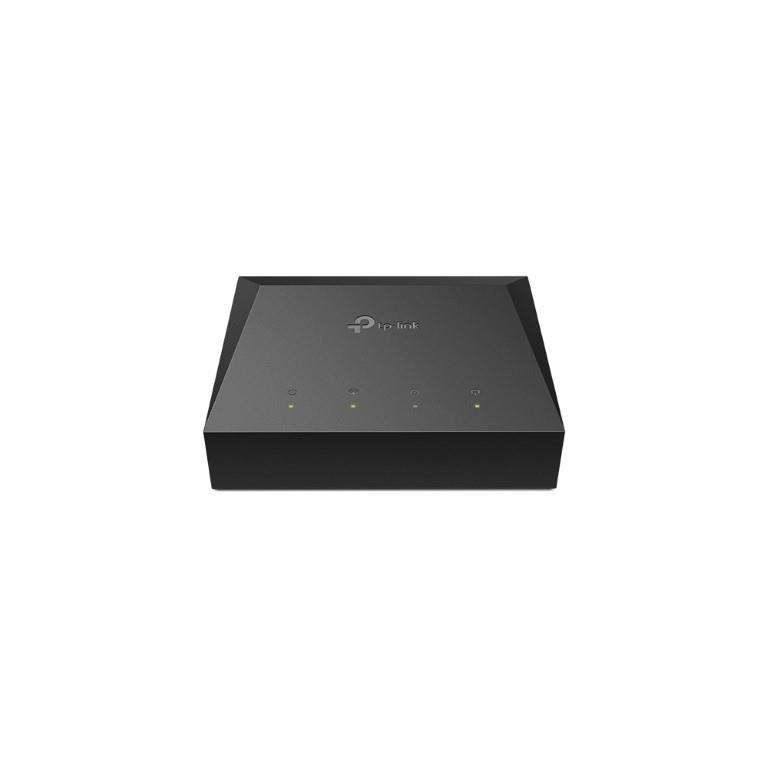

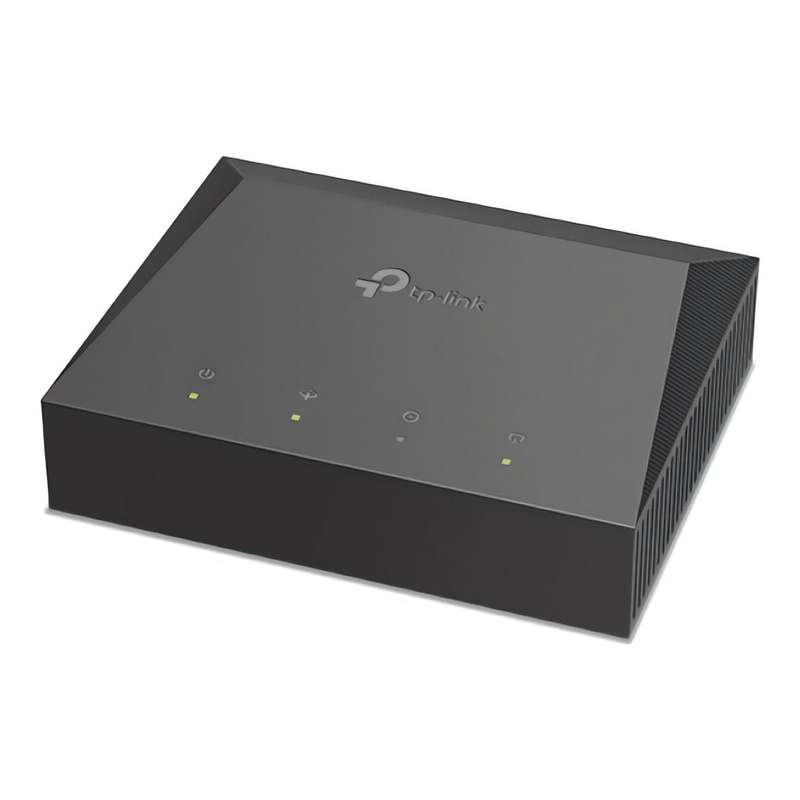

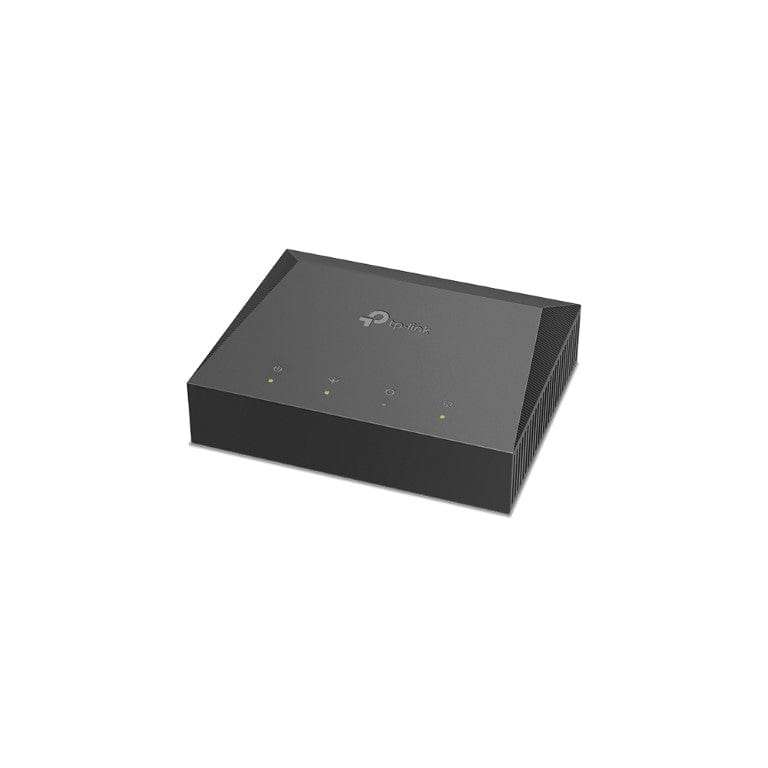

TP-Link XZ000-G3 1-port Gigabit GPON Terminal
1-Port Gigabit GPON Terminal
- Quality of Service - Quality of Service control for transaction prioritization and bandwidth management
- Durability - Intelligent power-saving method
- Easy Remote Management - TR-069 protocol enables an operator to remotely configure and manage end-user devices
- Full Gigabit Port - Fiber access and gigabit port provide incredibly fast transfer speeds
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G3 supports maximum data rates of up to 2.488Gbps downstream, 1.244Gbps upstream.
Make Fiber-to-the-Home Yours
- TP-Link's XZ000-G3 is a Gigabit Passive Optical
- Network(GPON) terminal
- ideal for Fiber-to-the-Home solution
Full Gigabit Port
One GPON port and one Gigabit Ethernet port, the XZ000-G3 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Technical Specification

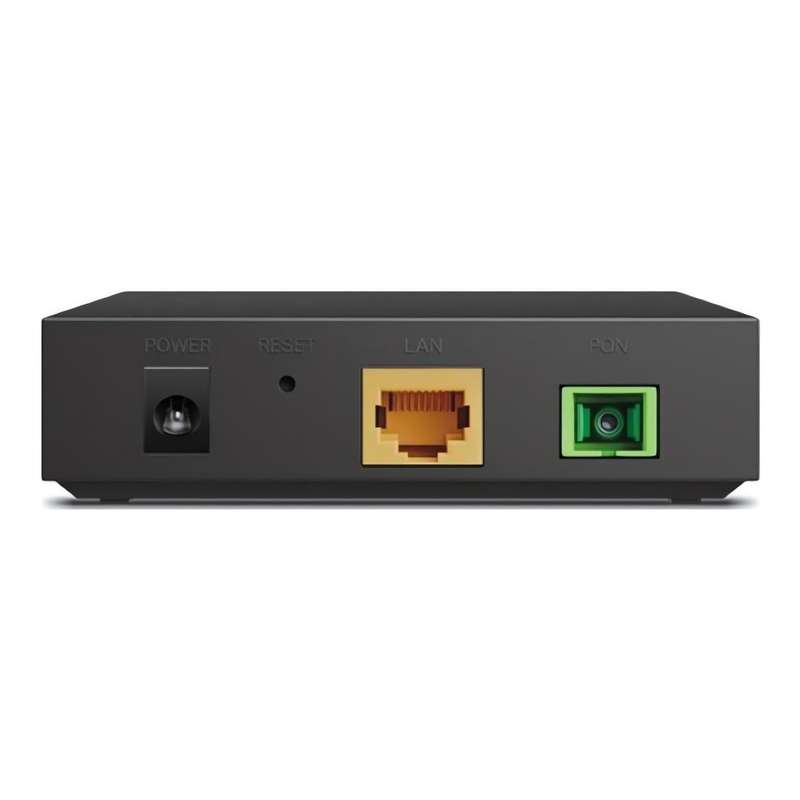

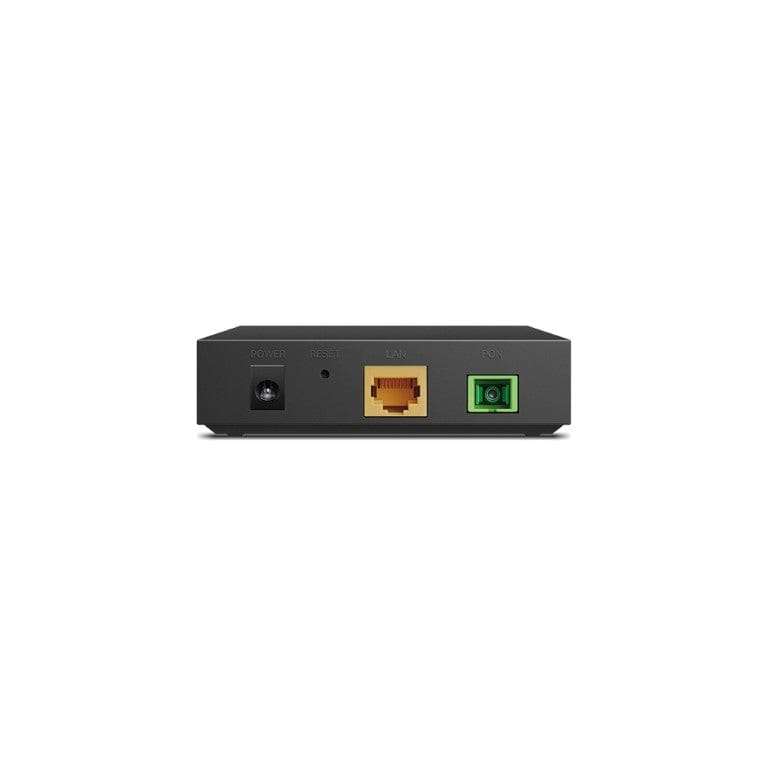

Interface: 1x 10/100/1000Mbps RJ45 Port, 1x SC/APC Port
Button: 1x RESET Button
External Power Supply: 9 VDC/0.6A
IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data Rates
-
Upstream: 1.244Gbps
-
Downstream: 2.488Gbps
Distance: 0 ~ 20Km Max
GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical Module: Class B+
Receiver: Super-TIA
Transmitter: DFB Laser
Wavelength
-
Upstream: 1310nm
-
Downstream: 1490nm
Package Contents
-
XZ000-G3 GPON Terminal
-
RJ-45 Ethernet Cable
-
Quick Installation Guide
-
Power Adapter
