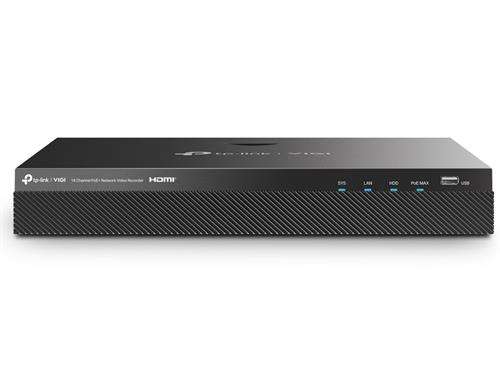

TP-Link VIGI 16 Channel PoE Plus Network Video Recorder - 16 Channel IP Video Input, 80Mbps incoming bandwidth, 60Mbps Outgoing Bandwidth, HDMI/VGA Simultaneous Output, Manual Recording, Scheduling Recording, Motion Detection Recording, Playback mode, UPnP (Plug and Play), NTP (Network Timing), Android, iOS, Web Browser Chrome (57+), Firefox (52+), Edge (91+), 2 SATA Interfaces, Up to 16 TB Capacity for Each HDD, Retail Box , 1 year warranty
Product Overview

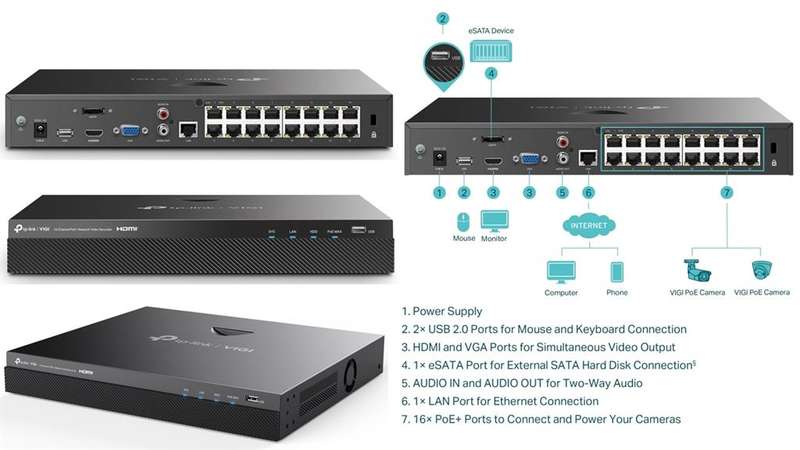

The TP-Link VIGI 16 Channel PoE Plus Network Video Recorder supports up to 16 IP camera inputs with simultaneous HDMI and VGA output in resolutions up to 4K. It features H.265+ video compression, multi-view display options, and flexible recording modes including motion detection and scheduled recording. With PoE support, extensive alarm options, and mobile app access, it provides comprehensive, scalable security management for professional surveillance setups.
Specifications
Product code: VIGI-NVR2016H-16P
Description: TP-Link VIGI NVR2016H-16P VIGI 16 Channel Network Video Recorder
IP Video Input 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
Multi-View Display 1/4/6/8/9/16
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Synchronous Playback 16-Channel
25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps: 4-ch @ 3MP, 2-ch @ 5MP
Interoperability ONVIF, CGI
SATA 2 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
Standard 802.3at/af Compliant
Storage Temperature -4070 °C
Power Adapter
Power Cables
HDD Power Cables
HDD Data Cables
Mounting Accessories
Quick Installation Guide
Working Temperature NVR: -1055 °C
Power Adapter: 040 °C
Dimensions (W X D X H) 330 × 285 × 45 mm
Net Weight 1.9 Kg
Gross Weight 3.2 Kg
Power Supply 53.5V DC/2.43A
