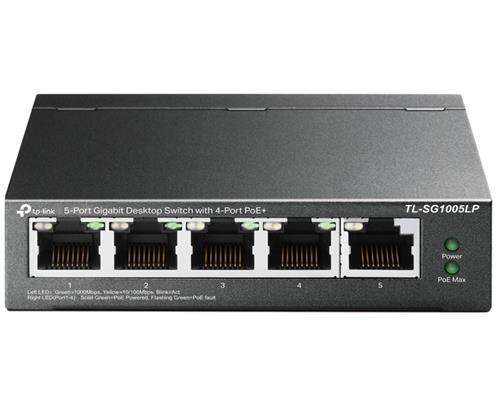

The TP-Link 5-Port Gigabit Desktop PoE+ Switch features four PoE+ ports that deliver both data and power over a single Ethernet cable, supporting IEEE 802.3af/at compliant devices. It offers 30 W per port and a total of 40 W across all PoE ports, making it ideal for powering devices like IP cameras and wireless access points.
Product code: TL-SG1005LP
Description: TP-Link 5-Port Gigabit Desktop PoE+ Switch,
Interface
5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation
14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
