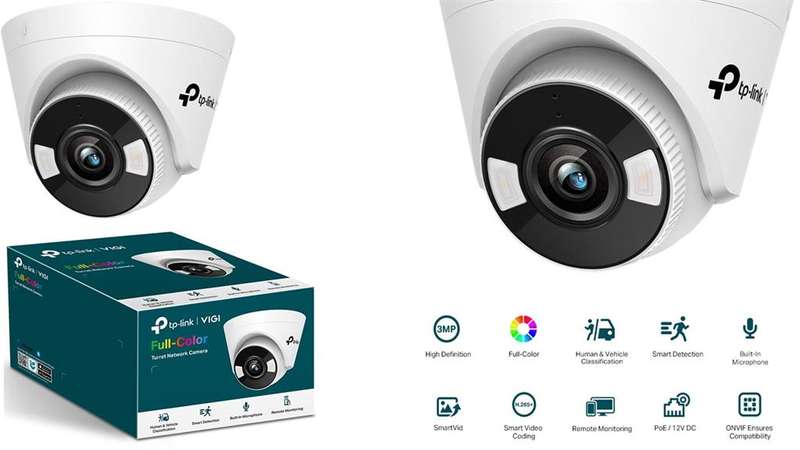

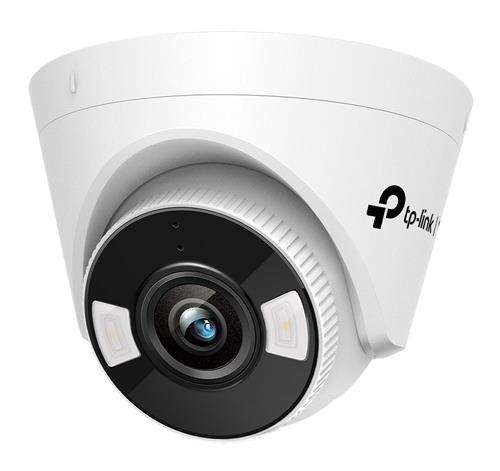

TP-Link VIGI C430 VIGI 3MP 2.8mm Full-Color Turret Network Camera, Retail Box, 1 Year Warranty
The TP-Link VIGI C430 captures sharp 3MP color video with night vision, even in darkness. Smart features like human/vehicle detection and two-way audio (microphone) keep you informed and in control.
Product code: VIGI-C430(2.8MM)
Description: TP-Link VIGI C430 VIGI 3MP 2.8mm Full-Color Turret Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 2.8 mm: F1.6
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
IR Working Distance 30m
Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)
Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
Lens Mount M12
DORI Distance 2.8 mm
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
Range Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
Max. Resolution 2304 × 1296
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Resolution: 704x576, 640x480, 352x288, 320x240
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Wide Dynamic Range WDR
Operating Temperature -3060 °C
Storage Temperature -4060 °C
Package Contents VIGI Network Camera
Dimensions ( H X W X D ) 123 × 123 × 83 mm
Net Weight 0.21 Kg
Gross Weight 0.36 Kg
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
NOTE: Items are only transferred from the warehouse and shipped for delivery upon order confirmation and payment. Items deemed with incorrect listing prices will be cancelled and refunded immediately.
