TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder, Retail Box , 1 year warranty
The TP-Link VIGI NVR4032H is a powerful 32-channel network video recorder designed for high-resolution surveillance, supporting up to 8MP video quality and H.265+ compression for efficient storage. With a robust bandwidth capacity of 320 Mbps, it allows simultaneous playback from multiple cameras and features smart detection for enhanced security management.
Specifications
Product code: VIGI-NVR4032H
Description: TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder,
Incoming Bandwith: 320Mbps
Outgoing Bandwidth: 320Mbps
Network Protocols: UPnP (Plug and Play), NTP (Network Timing)
Interoperability: ONVIF, CGI
Mobile Phone Access: Android, iOS
Browser: Chrome (57+), Firefox (52+), Edge (91+)
Working Temperature: -10 - 55 C
Working Humidity: 10% ~ 90% RH Non-Condensing
Power Supply: 100 - 240VAC, 50 to 60HZ, 1.5A
Power Consumption:
5W (Without Disk)
48W (With Disk)
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode: Regular Backup, Video Clip Backup
Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

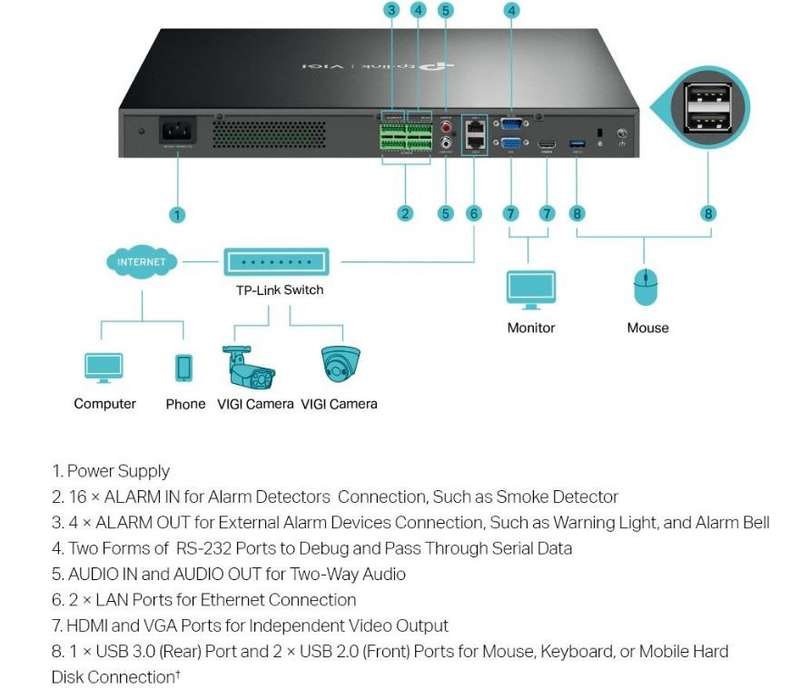

Network Interface: 2 x RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
USB Interface: USB Interface
Audio Interface: 1 x Audio In; 1 x Audio Out
Alarm In/Out: 16/4
Serial Interface: 1 x RS232
Multi-View Display: 1/4/6/8/9/16/25/32/36
Video Output Mode: HDMI/VGA Independent Output
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution:
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution:
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Decoding Format: H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
SATA: 4 x SATA Interfaces
Capacity: Up to 10TB Capacity for Each HDD
