The TP-Link 8-Port Gigabit Easy Smart Switch offers a seamless way to expand your network with eight 10/100/1000Mbps RJ45 ports, ensuring high-speed connectivity for multiple devices. Its plug-and-play design requires no configuration, making installation straightforward and hassle-free, while intelligent management features allow for easy network monitoring and traffic prioritization.
Product code: TL-SG108E

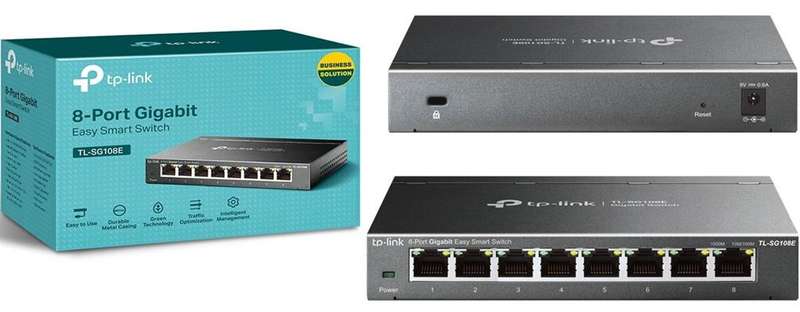

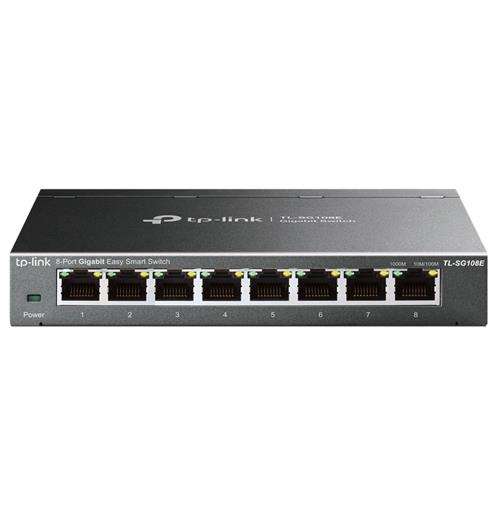

Description: TP-Link 8-Port Gigabit Easy Smart Switch
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.
(158 × 101 × 25 mm)
Max Power Consumption 2.7W
Max Heat Dissipation 9.3 BTU/h
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4 K
Packet Buffer Memory 1.5 Mb
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
